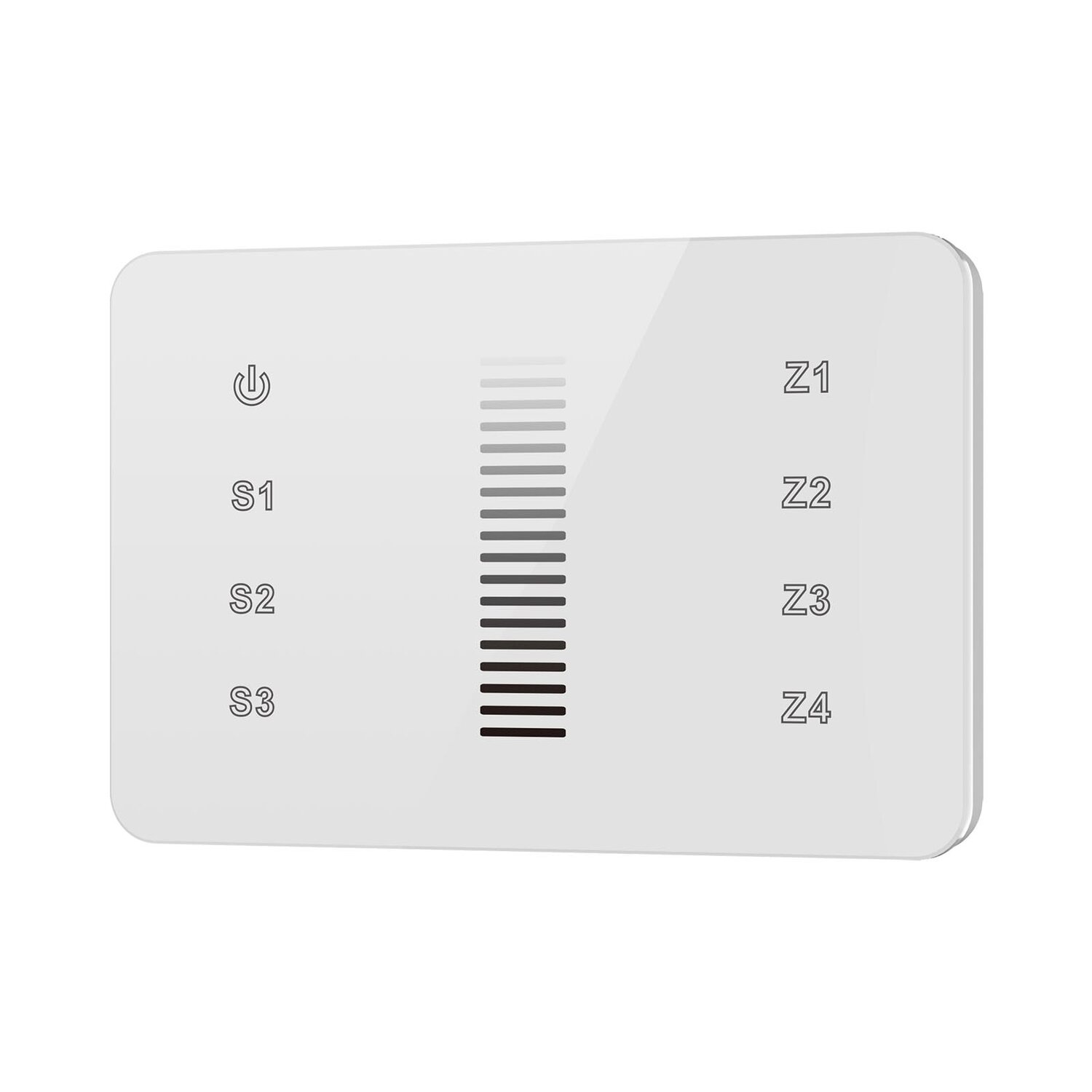

The RF Single Color Wall Mounted Controller is touch-sensitive with a modern glass interface available in white and black. It is designed to control a single color and can manage up to 4 zones synchronously or separately.
Compatible with all universal series RF receivers, it operates at a radio frequency of 869.5/434MHz.
| Versions | DC Version | AC Version |
|---|---|---|
| Output Signal | RF signal | RF signal |
| Power Supply | 12-24VDC | 100-240VAC |
| Power consumption | < 20 mA | < 15 mA |
| Operating temperature | 0-40℃ | 0-40℃ |
| Relative humidity | 8% to 80% | 8% to 80% |
| Dimensions | 120x80x29.1mm | 120x80x29.1mm |
