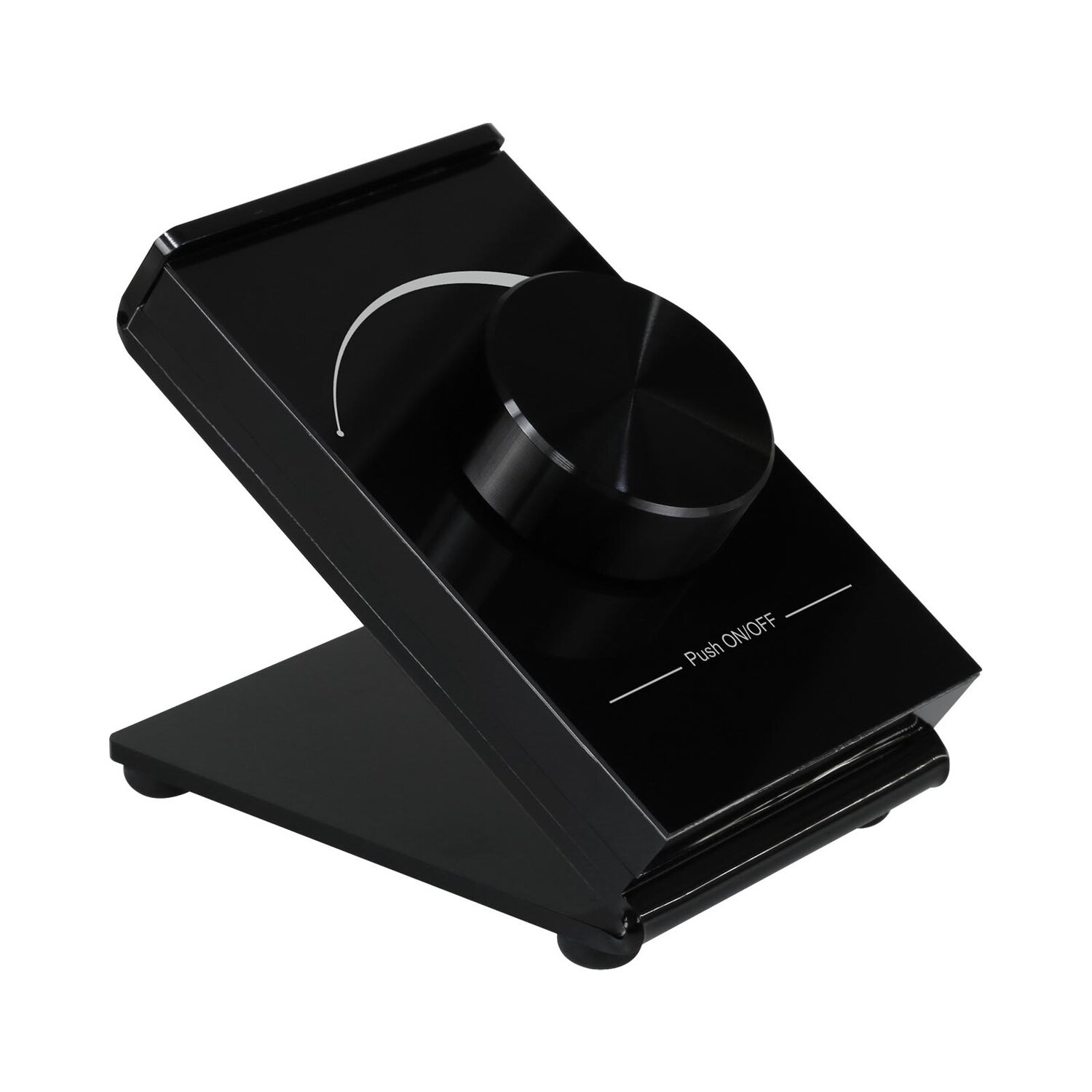

SR-2836D is a desk mount single color rotary dimmer controller which offers both switch and smooth brightness dimming functions for single color LED lighting. Designed with sleek compact appearance, high strength tempered glass material and rotary knob, the LED dimmer switch offers accurate smooth dimming and switch functions without any flickering.
Each desk dimmer can control 1 zone with endless receivers in each zone. Smooth dimming from 0.1%-100% without any flickering can be very comfortable for human eyes.
It is quite easy to switch on/off by clicking the rotary knob and dim brightness by rotating the rotary knob. Compatible with SR-1009 series RF receivers which are available in both constant voltage and constant current versions, the rotary LED dimmer is capable of controlling different types of LED lighting.
While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems. Push dim function is available while receivers are connecting with a push switch.
| Output Signal | RF signal |
|---|---|
| Power Supply | 3V(CR2025) |
| Power consumption | 10 mA |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 96x65x74mm |
