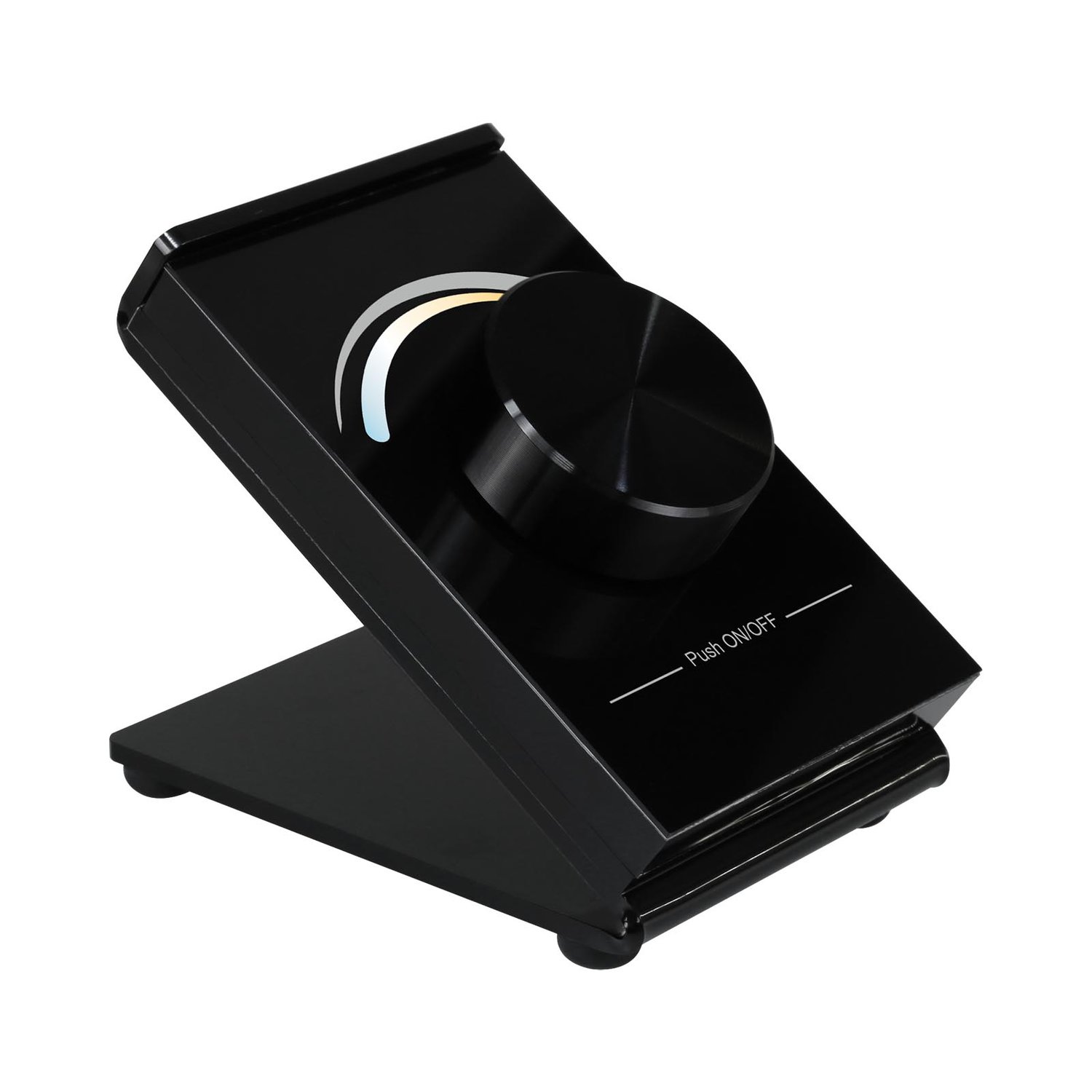

RF Dual Color Desktop Rotary Controller

SR-2836DCCT
Product description
  • Rotation sensitive
  • Compatible with all universal series RF receivers
  • Radio frequency: 868/869.5/916.5/434MHz
  • Control CCT color
  • Control 1 zone of RF receiver
  • Waterproof grade: |p20

SR-2836DCCT is a desk mount RF wall mounted control with switch, color temperature and brightness adjustment functions for dual color (warm white and cold white) LED lighting. The rotary dimmer controller features accurate and smooth color temperature adjustment as well as dim your lights from 0.1% to 100% without any flickering. Double clicking the rotary knob enables the controller to switch from brightness dimming to color temperature adjustment. Each controller can control 1 zone with endless receivers. Table lying design requires no complicate installation.

Output Signal RF signal
Power Supply 3V(CR2025)
Power consumption 10 mA
Operating temperature 0-40℃
Relative humidity 8% to 80%
Dimensions 96x65x74mm
