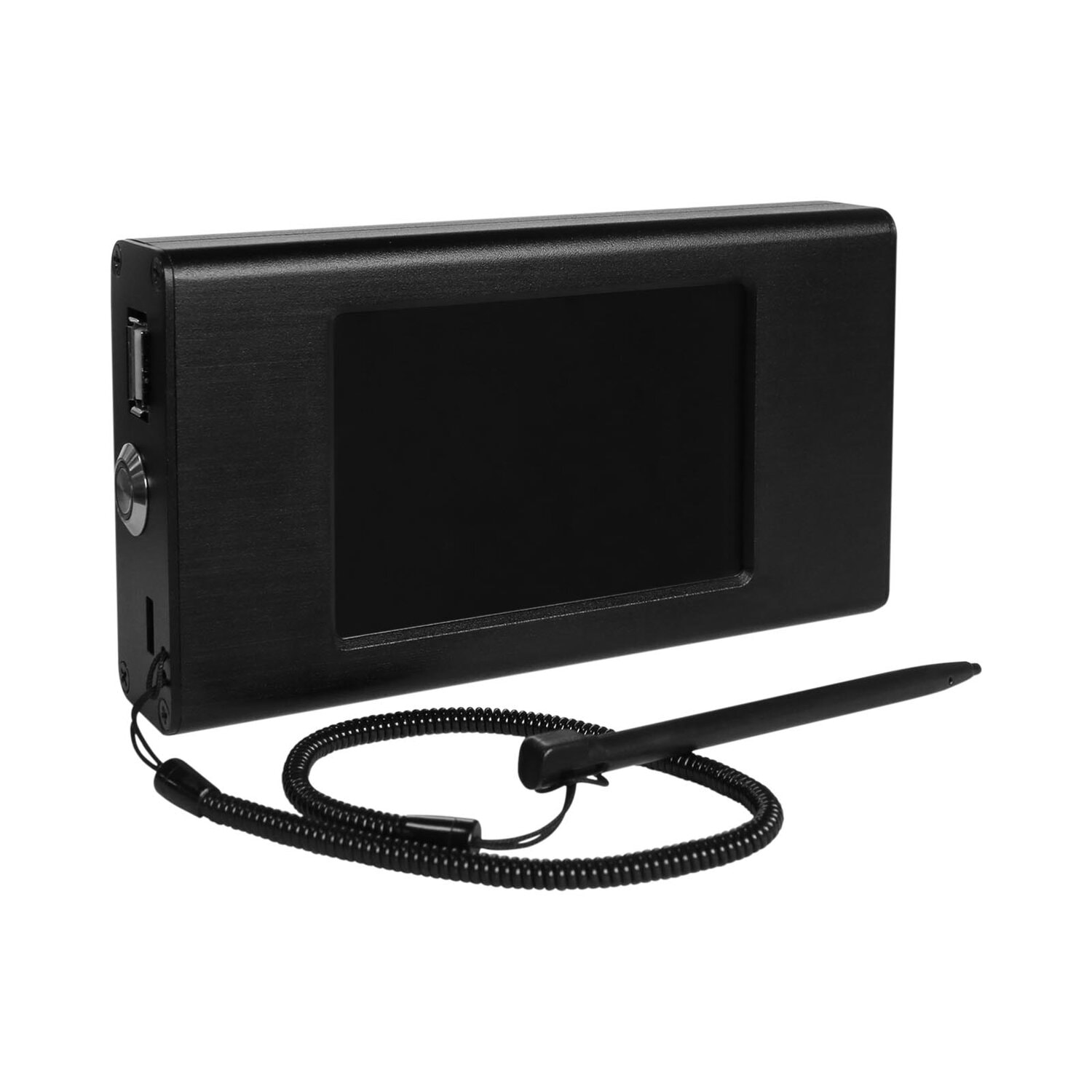

RDM Tester

SR-2100RDM-TESTER

Product description

Portable and powerful RDM tester
Simple and easy to use interface
Max. 512 DMX channels output, RJ45 port for DMX signal transmission
Suitable for large project testing, no complicated DMX master controller required
Supports RDM standard protocol testing
Supports RDM user customized PID testing
Supports manual DMX output
Supports DMX signal view
Built-in 2000mAh rechargeable lithium battery
Supports firmware updating through USB port
Supplied with a touch pen for smooth touch control
Supplied with RJ45 cable
Supplied with an RJ45 to XLR 5pin connector
Supplied with USB cable for charging
DO NOT install with power applied to device.
DO NOT expose the device to moisture.

The SR-2100RDM-Tester is is designed for quick testing of RDM enabled DMX devices, RDM is a protocol that stands for Remote Device Management, which can remotely configure and monitor lamp devices through RS485 signal and solve the issue that DMX512 can not transmit bi-directionally. The signal transmission of this device complies to RDM protocol and DMX protocol specifications.

Attribute	Min. Value	Typical Value	Max. Value	Unit
Input Voltage		5Vdc	6Vdc	V
Input Current			500mA	mA
Ambient Temperature	-40℃	25℃	85℃	℃
Dimensions	130x25x70mm	130x25x70mm	130x25x70mm	130x25x70mm
