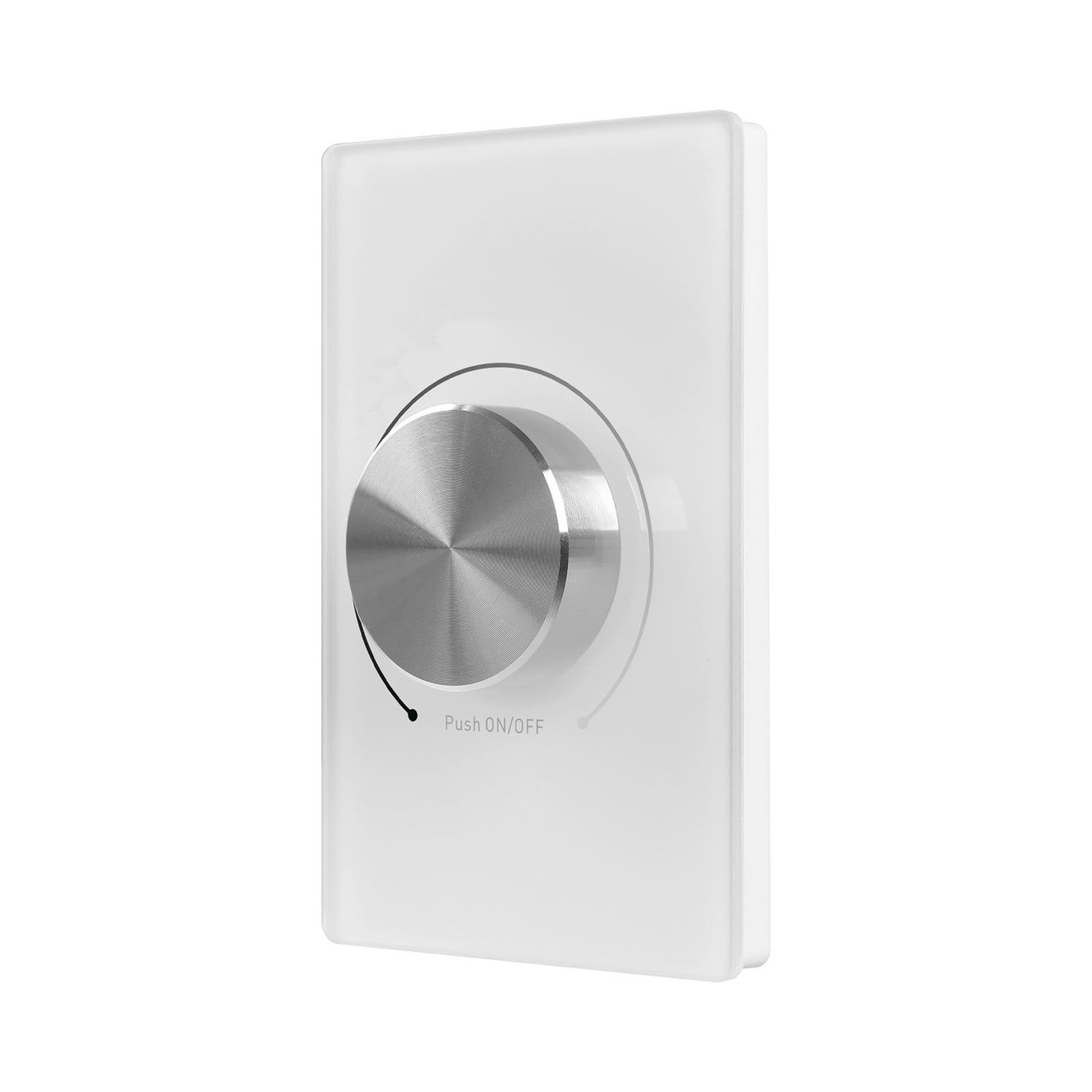

Push Compatible ZigBee Knob Smart Dimmer

SR-ZG2835RAC-S-US

Product description

Zigbee knob smart dimmer based on latest Zigbee 3.0 protocol
100-240VAC wide input and output voltage, can work under no neutral wiring and with neutral wiring, self-adaptive
Supports resistive loads, capacitive loads or inductive loads
Enables to set minimum brightness and startup brightness
1 channel output, up to 5S00W
Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
Enables to control ON/OFF and light intensity of connected light source
Zigbee end device that supports Touchlink commissioning
Can be controlled by Zigbee gateway, Zigbee remote and local rotary knob
Can directly pair to a compatible Zigbee remote via Touchlink without coordinator
Supports self-forming Zigbee network without coordinator and add other devices to the network
Supports find and bind mode to bind a Zigbee remote
Supports Zigbee green power and can bind max. 20 Zigbee green power switches
Compatible with universal Zigbee gateway products
With push switch input, can be controlled by universal AC push switches
Standard size, can be compatible with existing EU standard frames, and installed into standard size wall box
Radio Frequency: 2.4GHz
Waterproof grade: IP20

The Push Compatible ZigBee Knob Smart Dimmer is a Zigbee 3.0-based device designed for 100–240VAC input and output, supporting both no-neutral and with-neutral wiring with self-adaptive capability; it handles resistive, capacitive, or inductive loads, offers 1 channel output up to 500W, and allows configuration of minimum and startup brightness; available in factory-preset leading or trailing edge versions, it enables ON/OFF and dimming control via Zigbee gateway, Zigbee remote, or local rotary knob, and supports Touchlink commissioning, find and bind mode, Zigbee green power with up to 20 switch bindings, and direct control via universal AC push switches; it is compatible with universal Zigbee gateways and fits standard EU wall boxes and frames.

Input Voltage	100-240VAC
Output Voltage	100-240VAC
Output Current	2.2A max
Size(LxWxH)	120x75x49.2mm

Sunricher.net
