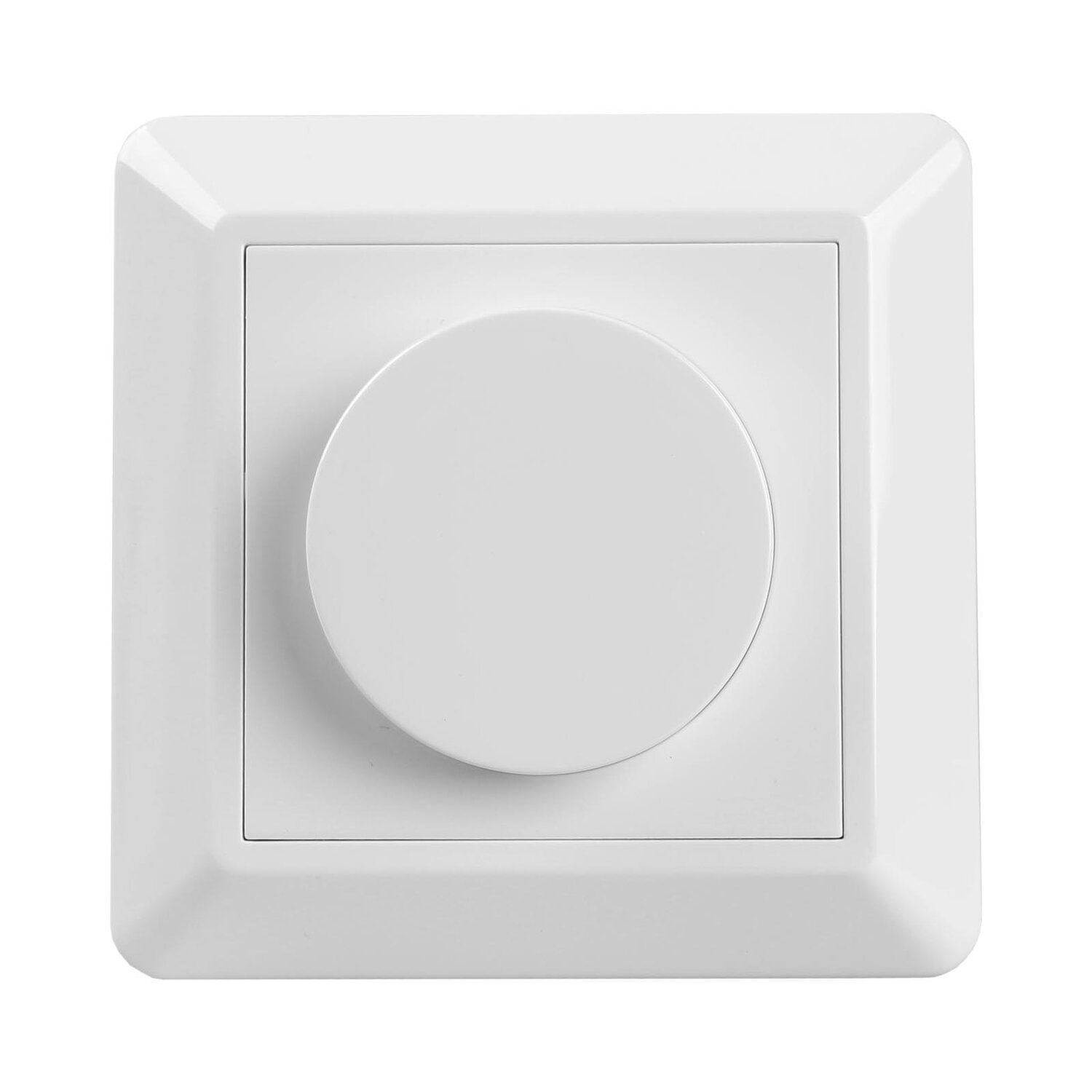

Push Compatible 2.4G Mesh Knob Smart Dimmer

SR-SB2835RAC-S
Product description
  • 2.4G mesh rotary smart dimmer
  • 100-240VAC wide input and output voltage, can work under no neutral wiring and with neutral wiring, self-adaptive
  • Supports resistive loads, capacitive loads or inductive loads
  • Enables to set minimum brightness and startup brightness 1 channel output, up to 500W
  • Both leading edge version and trailing edge versions are available for choosing, factory default is trailing edge
  • Enables to control ON/OFF and light intensity of connected load
  • Controlled through both smart App and remote controls, no gateway required
  • Easy quick pairing to the smart App by simply pushing the reset button, supports voice control through Alexa
  • Mesh network, much longer control distance, transmits received signal to neighbor devices
  • Up to 30m transmission distance between every two neighbor devices
  • Encrypted two-way communication, quick status feedback, safe reliable data transmission
  • Compatible with universal 2.4G mesh remotes, each LED controller can pair to max.8 remotes
  • Cloud control is available for remote access, works with Amazon Alexa and Google Home
  • With push switch input, can be controlled by universal AC push switches
  • Standard size, can be compatible with existing EU standard frames, and installed into standard size wall box
  • Radio Frequency 2.4GHz
  • Waterproof grade: IP20

The Push Compatible 2.4G Mesh Knob Smart Dimmer is a versatile rotary smart dimmer that supports both neutral and no-neutral wiring, with a wide input and output voltage range of 100-240VAC. It works with resistive, capacitive, and inductive loads and allows setting minimum and startup brightness for a single-channel output, supporting up to 500W. The dimmer offers both leading edge and trailing edge versions, with the factory default set to trailing edge, and can control the ON/OFF status and light intensity of connected loads. It can be controlled through a smart app or remote control, with no gateway required, and features easy pairing by simply pressing the reset button. Additionally, it supports voice control via Alexa, has a mesh network for extended control range, and allows encrypted two-way communication for secure and reliable data transmission. The dimmer is compatible with universal 2.4G mesh remotes, supports up to 8 remotes per controller, and offers cloud control for remote access via Amazon Alexa and Google Home. It can also be controlled by universal AC push switches and is compatible with EU standard frames for installation into standard-sized wall boxes.

Input Voltage 100-240VAC
Output Voltage 100-240VAC
Output Current 2.2Amax
Size(LxWxH) 83.8×83.8×47.1mm
