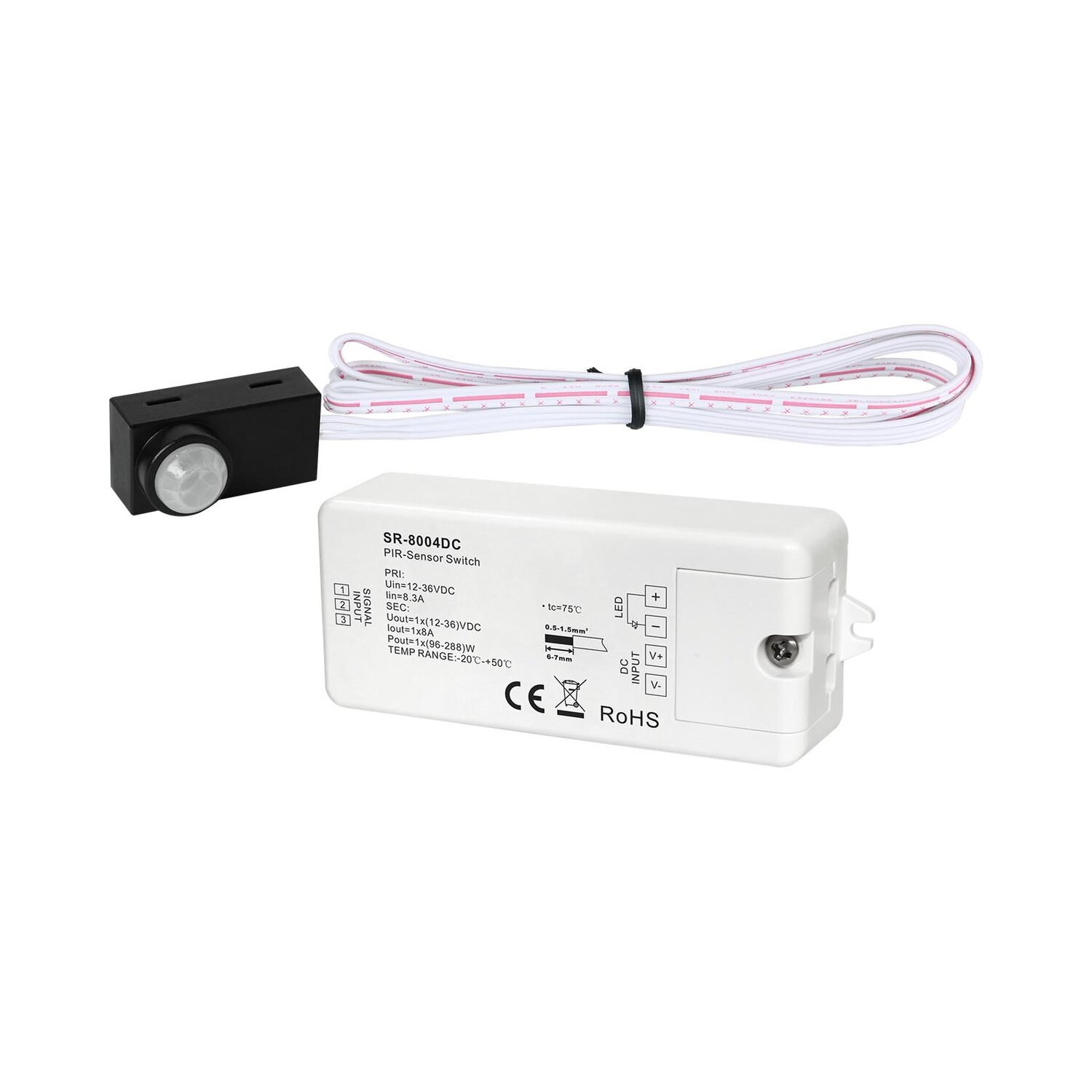

PIR Motion Sensor Switch

SR-8004-DC

Product description

Detection range: <3m.
Can load the HV-Halogen lamps, LED lamps, Electronic ballast
Power on when persons/objects come up the sensor switch area and power off when persons/objects moves
Sense angle 60°
DC or AC version
Waterproof grade: IP20

The PIR Motion Sensor Switch features a detection range of less than 3 meters and a sensing angle of 60°, automatically powering on when people or objects enter the detection area and powering off when they move away. It supports both DC and AC versions and is compatible with HV-halogen lamps, LED lamps, and electronic ballasts.

No	DC	AC
Input Voltage	12-36VDC	100-240VAC
Output Current	1x8A	5A
Output Power	1x(96-288)W	500W
Remarks	Constant voltage	Constant current
Size(LxWxH)	95x37x20mm	95x37x20mm
