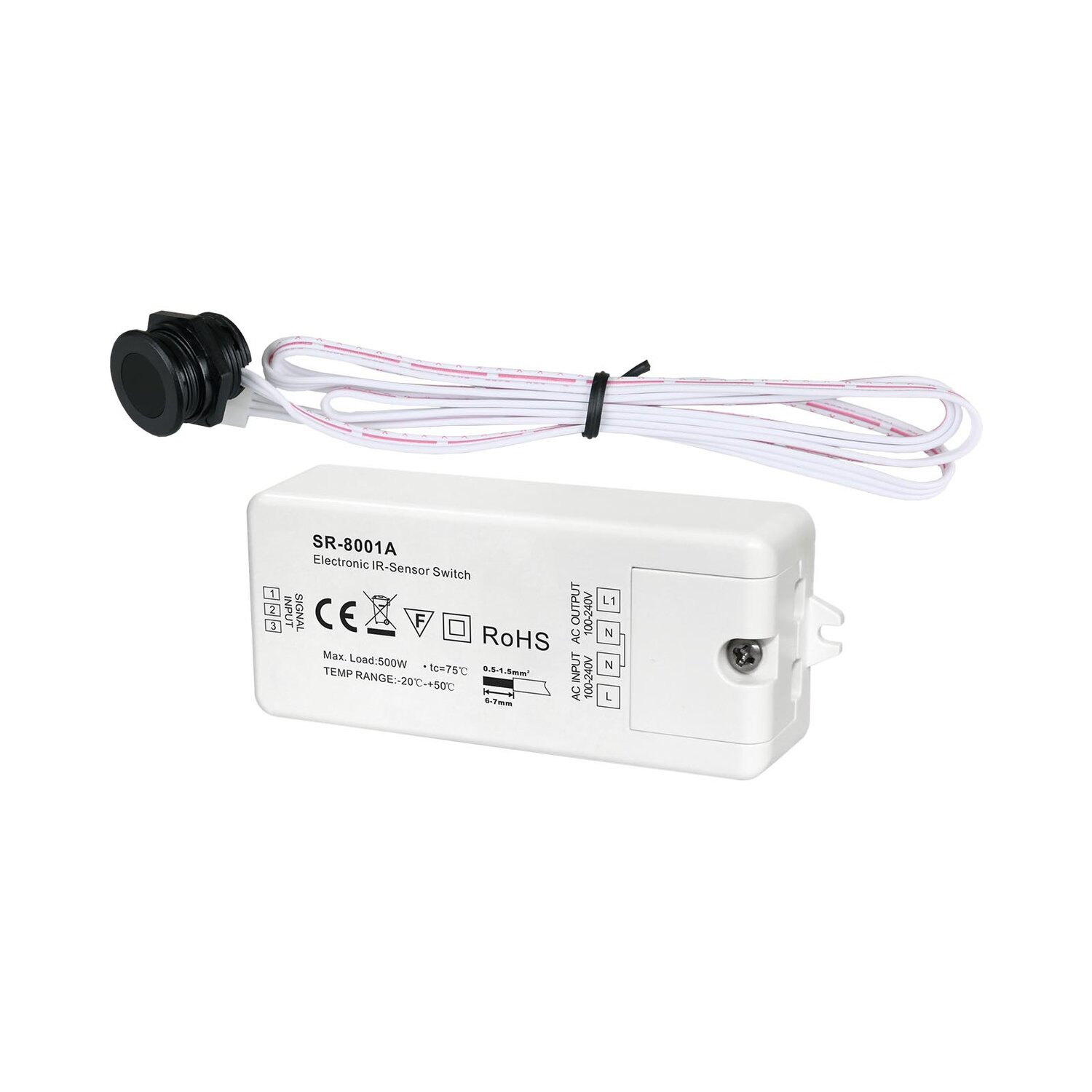

IR Sensor Switch

SR-8001A

Product description

Any reflection within the detection range would cause the change ON of switch and OFF when a new motion is detected (A version).
Any reflection within the detection range would cause the status OFF of switch and no reflection to cause status ON of switch (B version).
Detection range: 1-6cm.
For cabinet, door open light ON, door close light OFF
Ideal for kitchen, furniture, mirror, etc.
DC or AC version
Four sensor shells can be chosen. Dia. of drilling hole: 10mm & 17mm.
Waterproof grade: IP20

The IR Sensor Switch is available in two versions: Version A activates the switch ON when any reflection is detected within a 1–6 cm range and turns OFF upon detecting new motion, while Version B switches OFF when reflection is detected and ON when there is no reflection, making it suitable for applications like cabinet lighting where the light turns ON when the door opens and OFF when it closes; it supports both DC and AC power, offers four sensor shell options with 10mm and 17mm drilling diameters, and is ideal for use in kitchens, furniture, and mirrors.

No	DC	AC
Input Voltage	12-36VDC	100-240VAC
Output Current	1x8A	5A
Output Power	1x(96-288)W	500W
Remarks	Constant voltage	Constant current
Size(LxWxH)	95x37x20mm	95x37x20mm
