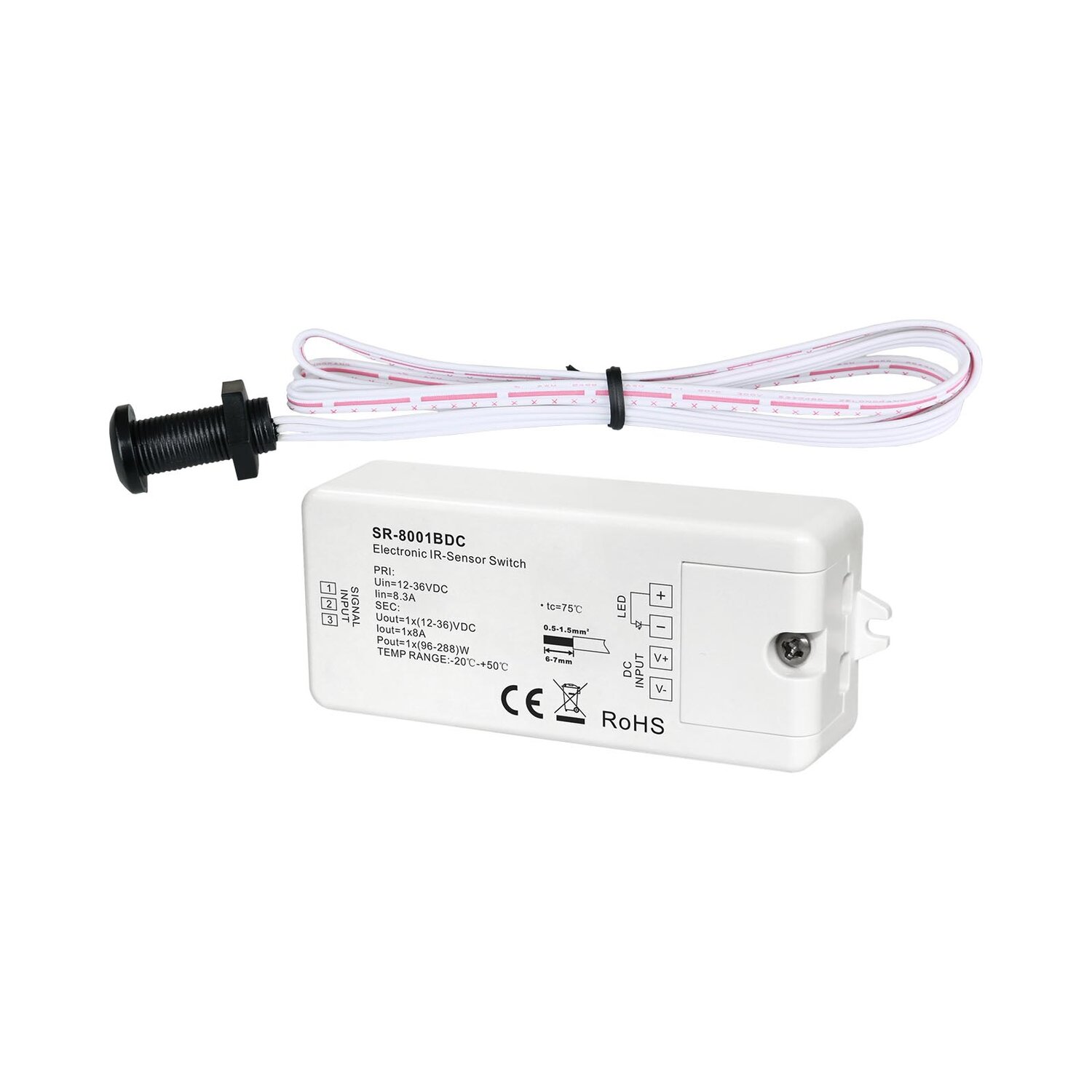

IR Sensor Switch

SR-8001B-DC

Product description

Any reflection within the detection range would cause the change ON of switch and OFF when a new motion is detected (A version).
Any reflection within the detection range would cause the status OFF of switch and no reflection to cause status ON of switch (B version).
Detection range: 1-6cm.
For cabinet, door open light ON, door close light OFF
Ideal for kitchen, furniture, mirror, etc.
DC or AC version
Four sensor shells can be chosen. Dia. of drilling hole: 10mm & 17mm.
Waterproof grade: IP20

The IR Sensor Switch operates based on reflections within its detection range of 1-6cm. In the A version, any reflection causes the switch to turn ON, and it turns OFF when new motion is detected, while in the B version, reflections cause the switch to turn OFF, and no reflection causes the switch to turn ON. This switch is ideal for applications such as cabinet lighting, door open/close lighting, and can be used in kitchens, furniture, mirrors, and more. Available in both DC and AC versions, it offers four sensor shell options with drilling hole diameters of 10mm and 17mm.

No	DC	AC
Input Voltage	12-36VDC	100-240VAC
Output Current	1x8A	5A
Output Power	1x(96-288)W	500W
Remarks	Constant voltage	Constant current
Size(LxWxH)	95x37x20mm	95x37x20mm
