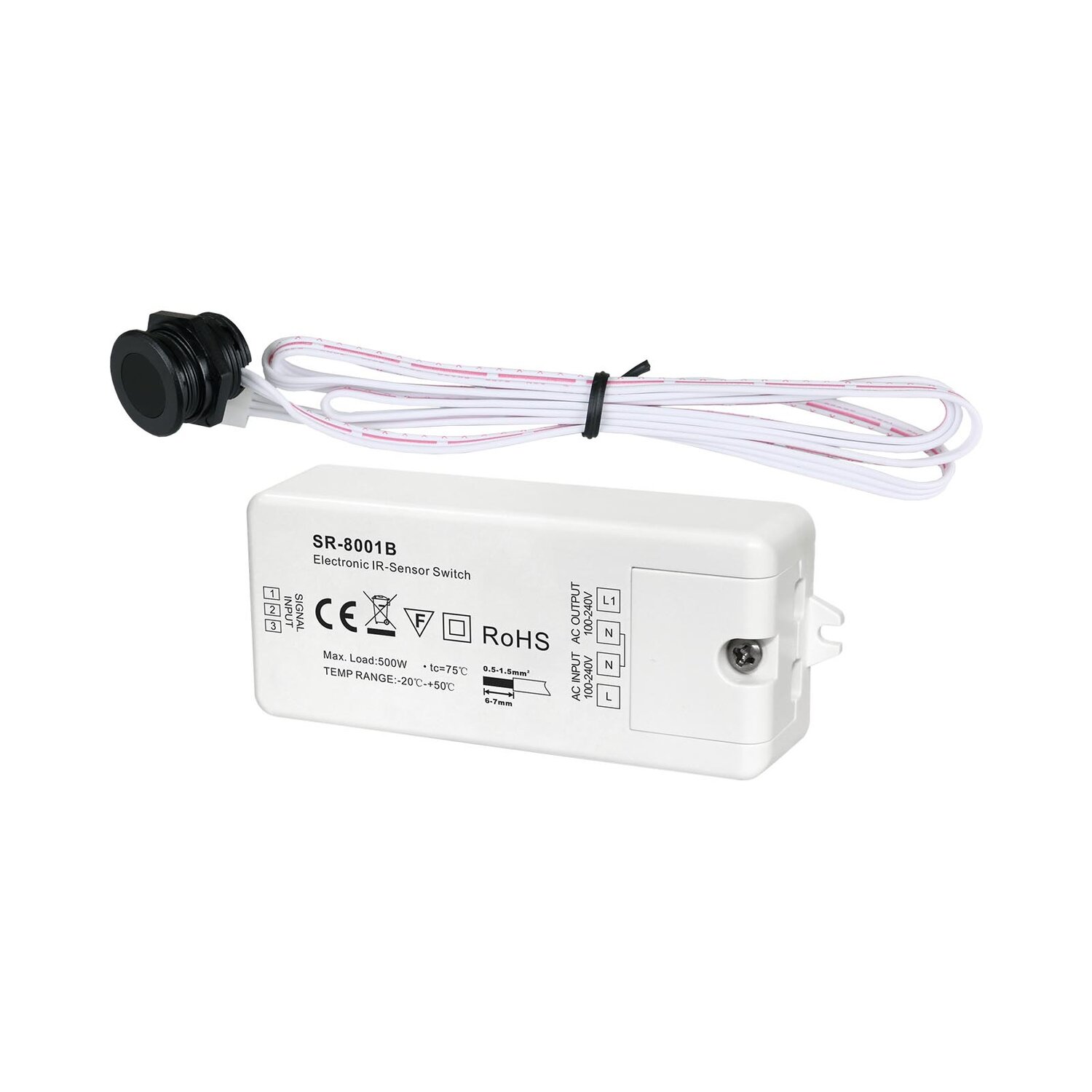

IR Sensor Switch

SR-8001B

Product description

Any reflection within the detection range would cause the change ON of switch and OFF when a new motion is detected (A version).
Any reflection within the detection range would cause the status OFF of switch and no reflection to cause status ON of switch (B version).
Detection range: 1-6cm.
For cabinet, door open light ON, door close light OFF
Ideal for kitchen, furniture, mirror, etc.
DC or AC version
Four sensor shells can be chosen. Dia. of drilling hole: 10mm & 17mm.
Waterproof grade: IP20

The IR Sensor Switch operates in two versions: Version A turns ON with any reflection within the 1–6 cm detection range and turns OFF when new motion is detected, while Version B turns OFF with reflection and ON when no reflection is detected, making it suitable for cabinet lighting where lights activate upon door opening and turn off when closed; it is available in DC or AC versions, fits four selectable sensor shells with 10mm and 17mm drilling options, and is ideal for applications in kitchens, furniture, and mirrors.

No	DC	AC
Input Voltage	12-36VDC	100-240VAC
Output Current	1x8A	5A
Output Power	1x(96-288)W	500W
Remarks	Constant voltage	Constant current
Size(LxWxH)	95x37x20mm	95x37x20mm
