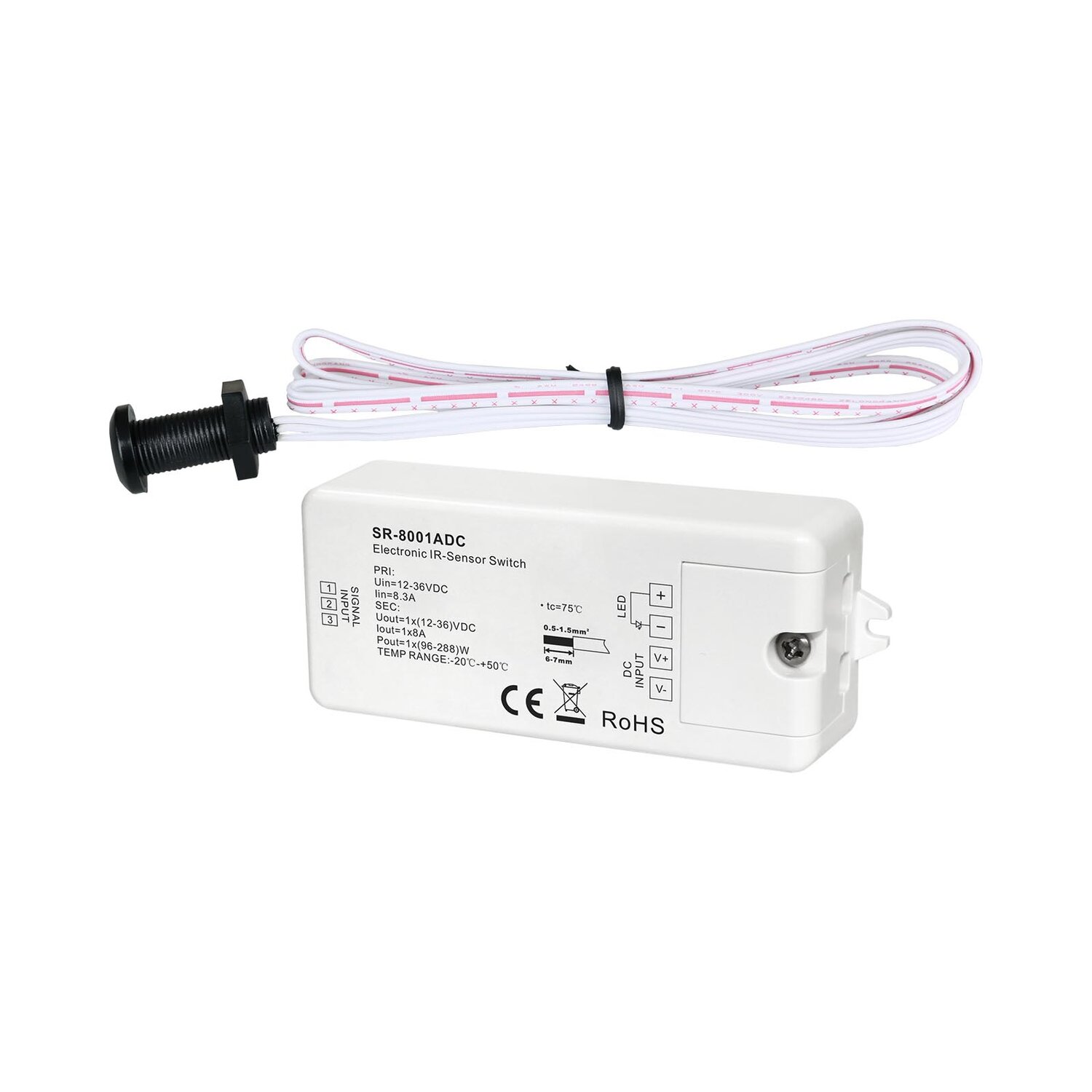

IR Sensor Switch

SR-8001A-DC

Product description

Any reflection within the detection range would cause the change ON of switch and OFF when a new motion is detected (A version).
Any reflection within the detection range would cause the status OFF of switch and no reflection to cause status ON of switch (B version).
Detection range: 1-6cm.
For cabinet, door open light ON, door close light OFF
Ideal for kitchen, furniture, mirror, etc.
DC or AC version
Four sensor shells can be chosen. Dia. of drilling hole: 10mm & 17mm.
Waterproof grade: IP20

The IR Sensor Switch detects reflections within a range of 1-6cm to control lighting. In the A version, any reflection triggers the switch to turn ON and turns it OFF when new motion is detected, while in the B version, reflections cause the switch to turn OFF and the absence of reflections turns it ON. It is ideal for use in cabinets, door lighting, and areas like kitchens, furniture, and mirrors. Available in both DC and AC versions, the switch offers four sensor shell options with drilling hole diameters of 10mm and 17mm.

No	DC	AC
Input Voltage	12-36VDC	100-240VAC
Output Current	1x8A	5A
Output Power	1x(96-288)W	500W
Remarks	Constant voltage	Constant current
Size(LxWxH)	95x37x20mm	95x37x20mm
