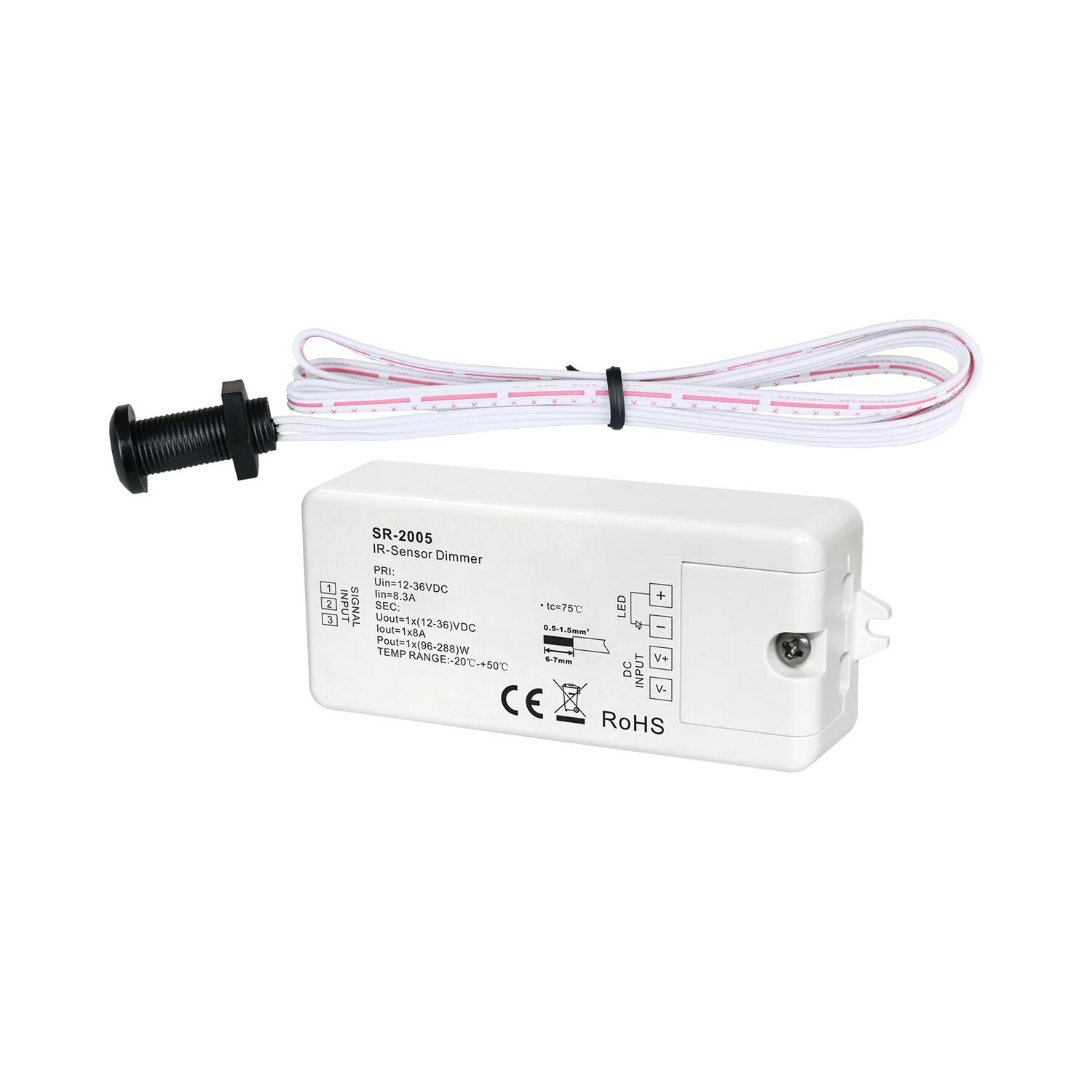

IR Hand-wave Sensor Dimmer

SR-2005

Product description

High sensitivity.
Detection range Max 6cm (IR Sensor).
Length Sensor line is >1M
Light will be on/off when your hand appears/moves away in the sensing area and a light dimming duration will be happened when your hand stays in the sensing area for a while (cycling dimming light: darkest- brightest-darkest-brightest.
Each Recycle Light Dimming Duration (darkest-brightest-darkest) is 16-20 seconds.
Smoth, soft and gentle dimming light changes without any flash.
Memory function enables to remember the last brightness when re-power on this unit.
Two sensor shell can be chosen.
Waterproof grade: IP20
Dim or dim+switch version

The IR Hand-wave Sensor Dimmer features high sensitivity with a detection range up to 6cm and a sensor cable longer than 1 meter, enabling on/off switching with a hand wave and smooth cycling dimming when the hand stays within the sensing area, transitioning gently from darkest to brightest and back over 16–20 seconds; it includes memory function to retain the last brightness setting after power-off, and is available in dim or dim+switch versions with two selectable sensor shells.

No	1	2	3
Input Voltage	12-36VDC	12-36VDC	12-36VDC
Output Current	1x8A	1x350mA	1x700mA
Output Power	1x(96-288)W	1x(4.2-12.6)W	1x(8.4-25.2)W
Remarks	Constant voltage	Constant current	Constant current
Size(LxWxH)	95x37x20mm	95x37x20mm	95x37x20mm
