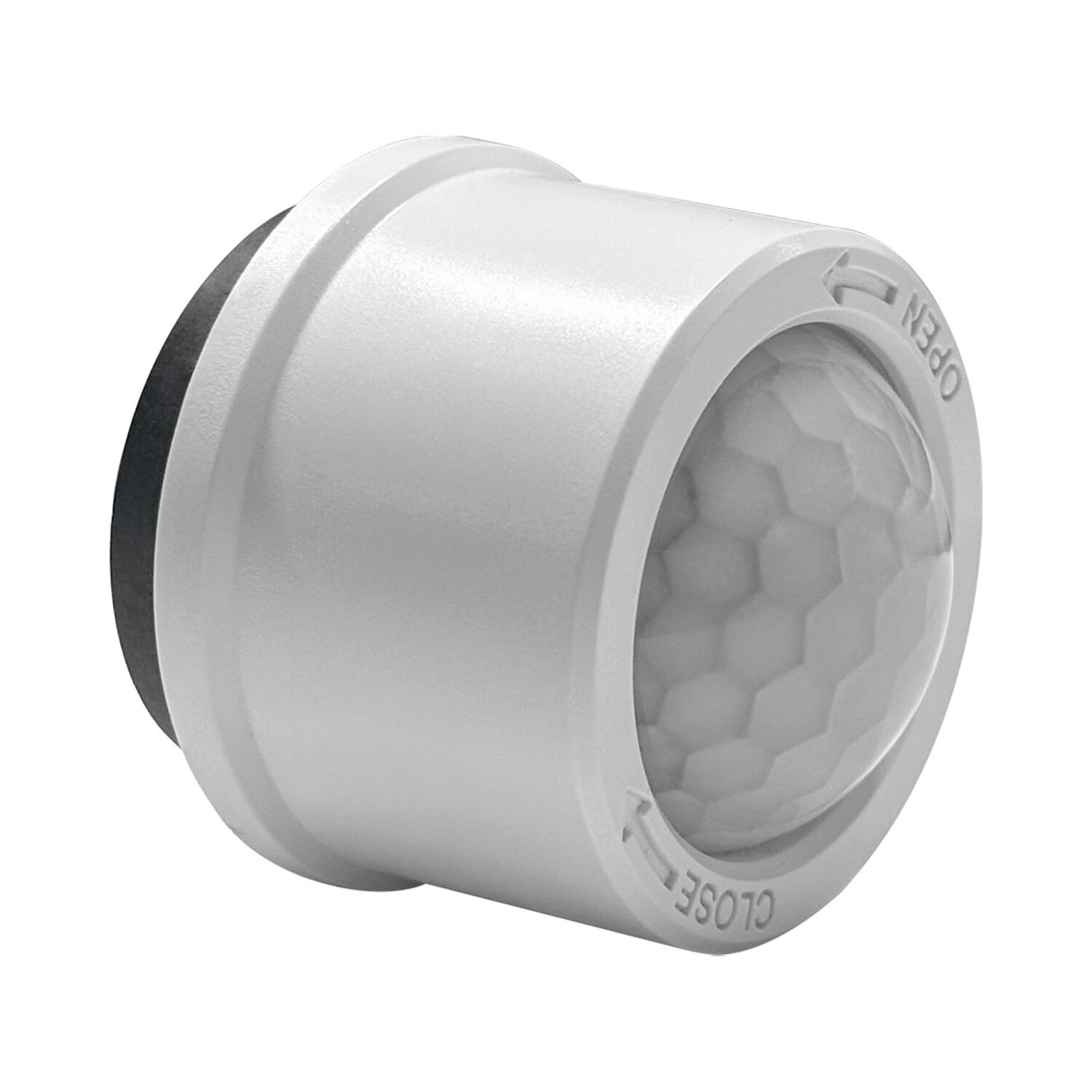

The IP65 Zhaga-Book 18 BLE 0-10V Sensor Controller with Light Sensor is a Bluetooth to 0-10V controller operating on a Bluetooth mesh network that extends control distance by transmitting signals across neighboring devices, enabling broadcast control of all devices on the 0-10V line via a mobile application.
It supports autonomous sensor-based control, is compatible with kinetic energy switches and EnOcean switches EWSSB and EWSDB, integrates with Zhaga Book 18 socket systems, and features an onboard antenna and magnetic reset by touching the sensor top for five seconds, making it suitable for outdoor luminaire applications.
| Electrical Information | |
|---|---|
| Power Supply | 12-24 VDC |
| 0-10V Signal Output | 20mA |
| Control | 0-10V |
| Marking Terminals | V+,DIM+, GND(DIM-) |
| Status Indicators | Green(commissioning), Red(motion detection) |
| Sensing | |
| Motion Detection | PIR |
| Daylight Harvesting | YES |
| Mounting Height | Up to 14m, recommended height: 6-12m |
| Detection Angle/Range | 360° (ceiling)/16m(Diameter) |
| Environment | |
| Operating Temperature Range | -20℃ to 40℃ |
| Operating Humidity | 0-95%(non-condensing) |
| Safety Certification | cULus Listed, CE |
