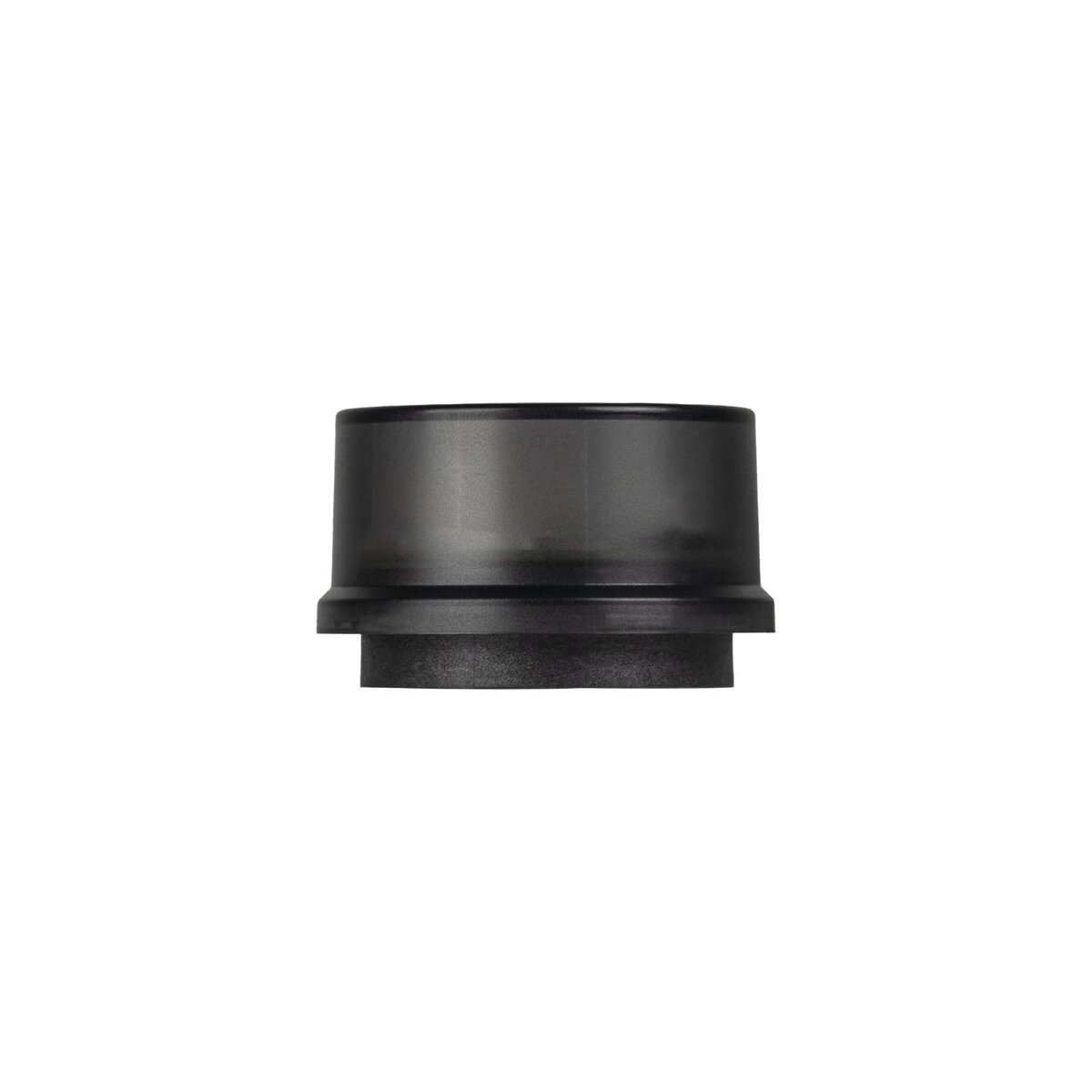

The occupancy sensor is a 4 in 1 device that combines occupancy sensing, daylight harvesting, 0-10V dimming and Zigbee radio circuits, and with standard zhaga interface socket, the sensor can easily fit into various luminaires with no tools required. When used with 0-10V LED drivers, it enables any lighting manufacturer to deliver wirelessly-controllable and sensor-equipped fixtures with minimal engineering effort. The sensor-equipped luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. The sensor is IP65 rating, which enables it to be used for outdoor luminaires.
| Input Voltage | 12/24 VDC |
| Current Consumption | < 30mA |
| Dimming Control | Analog (0-10V) |
| Dimming Output | 4mA (sink) / 20mA (source) |
| Status Indicators | Red (zigbee network status), Red (occupancy detection) |
| Occupancy Sensing Type | Microwave sensor |
| Microwave High Frequency | 5.8 GHz ±75 MHz ISM band |
| Detection Sensitivity | 0-15, 0 is 100% the max. sensitivity, 15 is the min. sensitivity |
| Lux Detection Range | 0-1000 Lux |
| Mounting Height | Up to 49ft (15m), recommended height: 13-26ft (4-8m) |
