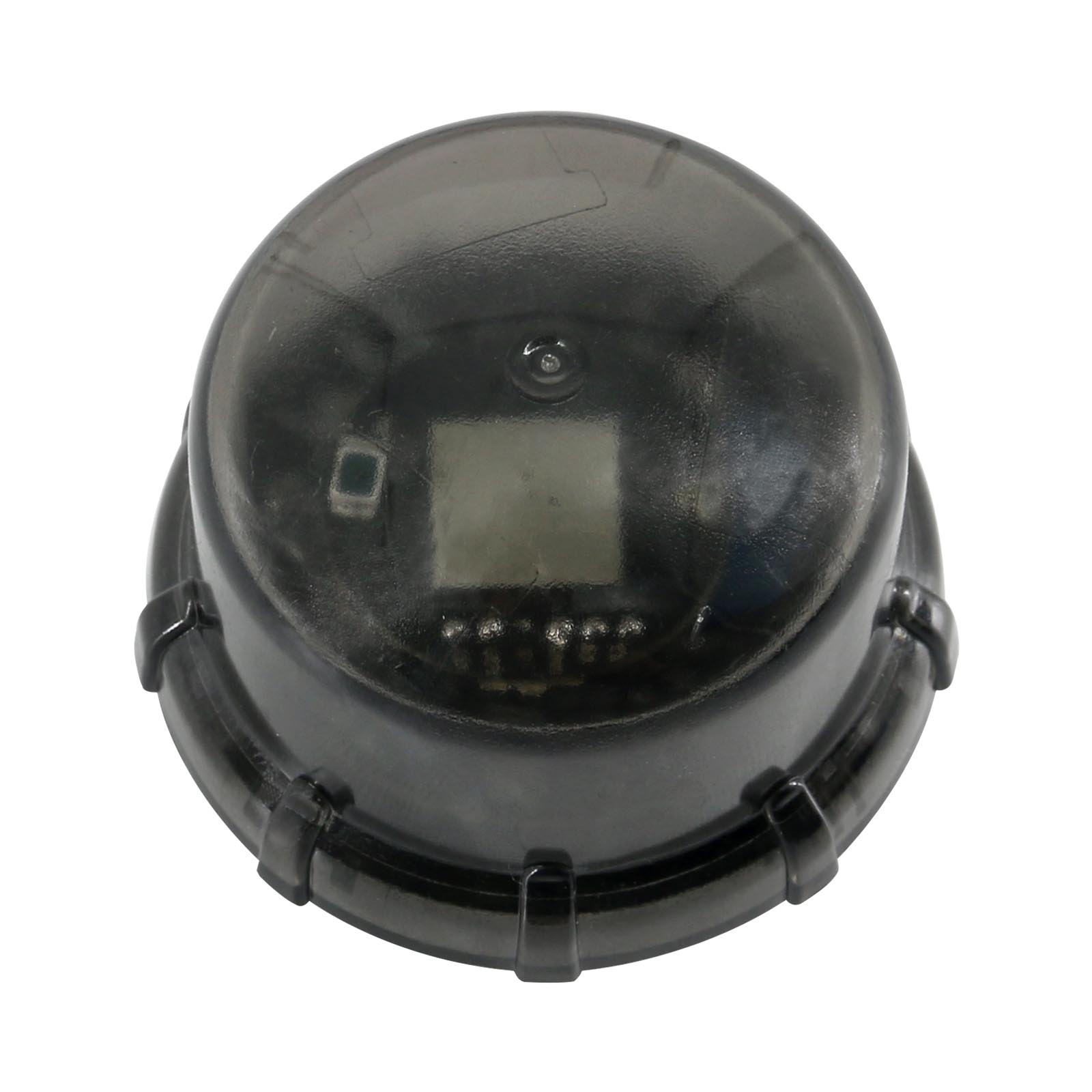

IP65 BLE DALI-2 Motion Sensor Controller with ZHAGA Interface Socket

SR-SV9033A-MW-D

Product description

Buetooth to DALI sensor controller, Buetooth mesh network
Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
All devices on DALI line are broadcast controlled by mobile application
Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
Autonomous sensor-based control
Zhaga Book 18 socket
Available with Magnetic reset (touch the top part of sensor for 5 seconds)
On-board antenna
Waterproof grade: IP65, suitable for outdoor luminaries
5 years warranty

The IP65 motion sensor combines motion sensor and light sensor. The device performs motiondetection and measures illuminance level.
With standard ZHAGA Book 18 interface socket, the sensor can easily fit into various luminaires with no tools required.

Physical Information
Dimensions	Sensor head: D50mm*H35mm, Receptacle: D30mm
Mounting	M 20×1.5 thread
Thread Length	18.5mm
Receptacle	D30mm
Gasket Dimensions	D36.5mm
Wires	AWM1015, 20AWG, 6″(120mm)
Electrical Information
Power Supply	12-24 VDC
Typical DALI Current Draw	2mA
Control	DALI
Marking Terminals	V+, GND(DALI-), DA+
Status Indicators	Red(commissioning), Red(motion detection)
Sensing
Motion Detection	Microwave Sensor
Microwave High Frequency	5.8 GHz ±75 MHZ ISM band
Mounting Height	40 feet(12m), Max. 45 feet(13m)
Detection Angle/Range	360 ° (ceiling)/10m(Diameter)
Environment
Operating Temperature Range	-40℉ to 104℉/-40℃ to 70℃
Operating Humidity	0-95%(non-condensing)
Safety Certiﬁcation	cULus Listed, CE
