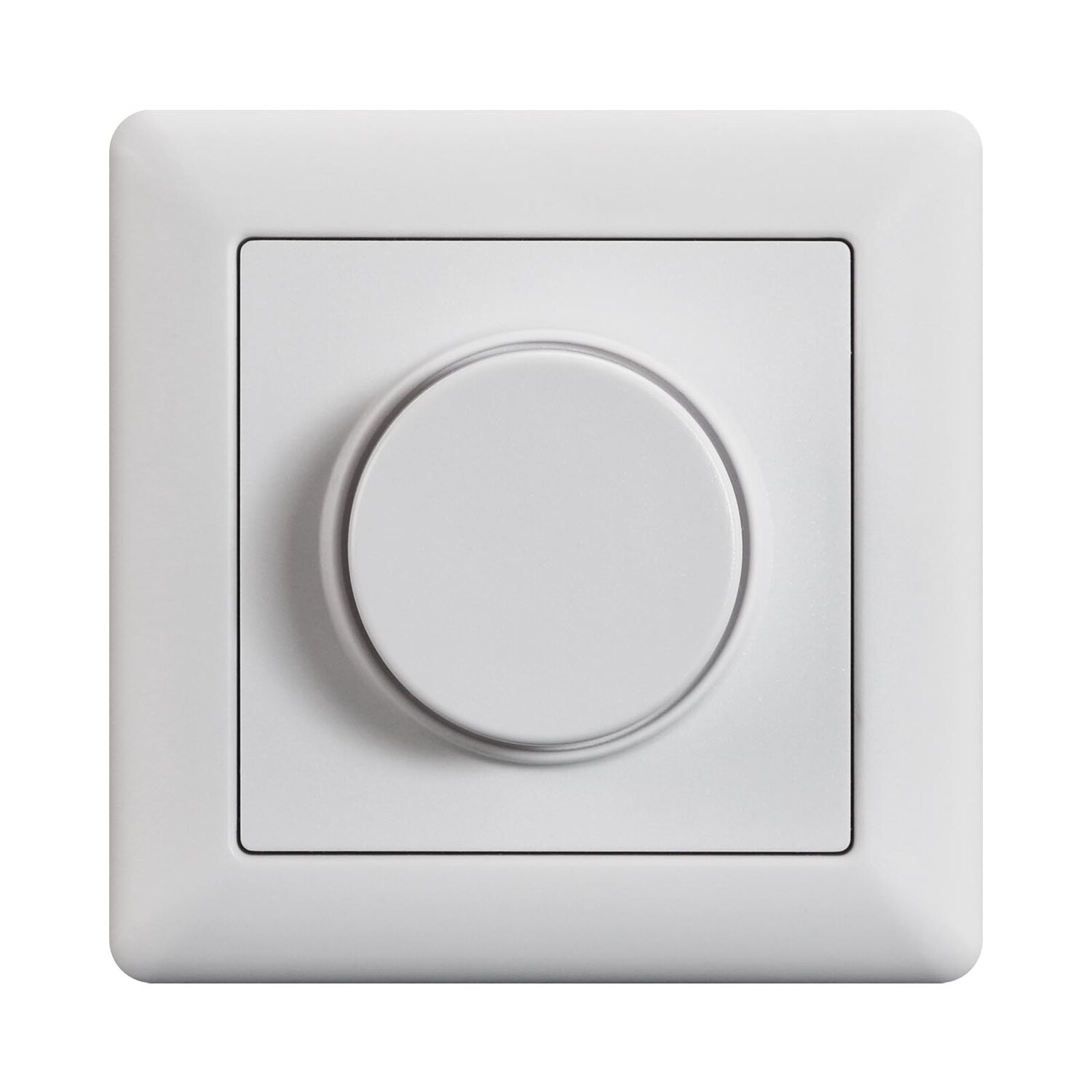

Group Control Single Color DALI DT6 Rotary Dimmer Switch

SR-2410RG-DIM-PL

Product description

Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
DALI bus powered, one channel DALI bus can install multiple dimming controllers.
No external power supply which is provided by DALI bus. Consumption current is 4mA.
Enable to select and control 1 DALI group
Enable to control all devices on the DALI circuit through broadcast
Plastic or glass front plate optional
Backlighting design to indicate the dimming status

The Group Control Single Color DALI DT6 Rotary Dimmer Switch complies with DALI standard protocols IEC 62386-102 and IEC 62386-207 and is compatible with DALI products from other international manufacturers; it is powered by the DALI bus with a consumption current of 4mA and requires no external power supply, allows selection and control of one DALI group and control of all devices on the DALI circuit through broadcast, features an optional plastic or glass front plate, and includes backlighting to indicate the dimming status.

Output	DALI signal
Power Supply	Supply By DALI Bus
Operation Current	4mA
Operating temperature	0-40℃
Relative humidity	8% to 80%
Dimensions	80 x 80 x 20.8 mm
