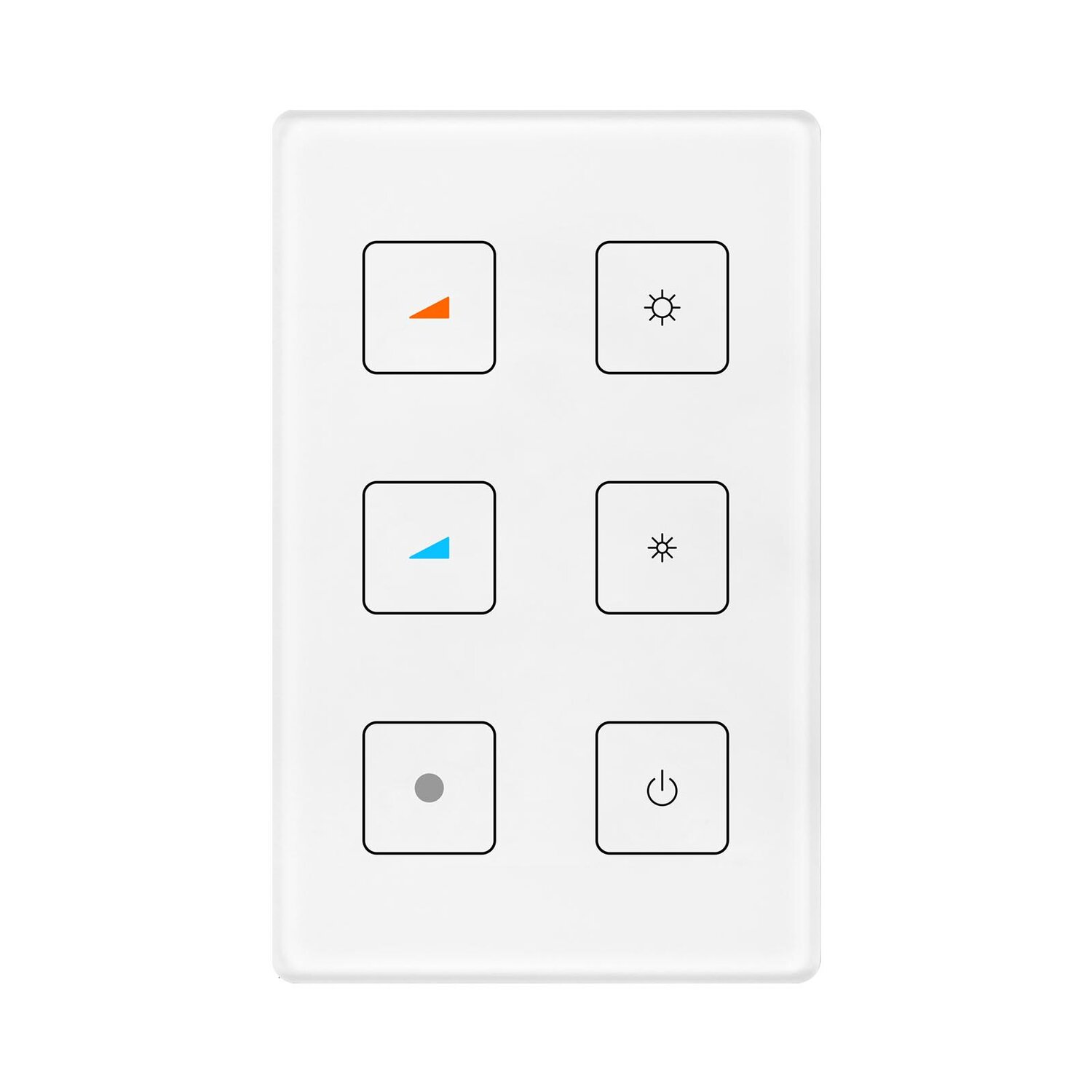

This controller is a DALI DT8 touch panel controller that enables smooth color temperature adjustment. It controls DT8 DALI devices with Color Type Tc and can be compatible with DALI masters that supports DT8 commands.
Each DT8 device is controlled via a single DALI address
| Output | DALI signal |
|---|---|
| Power Supply | Supply By DALI Bus |
| Operation Current | 4mA |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 75x120x29.1mm |
| Waterproof grade | Ip20 |
