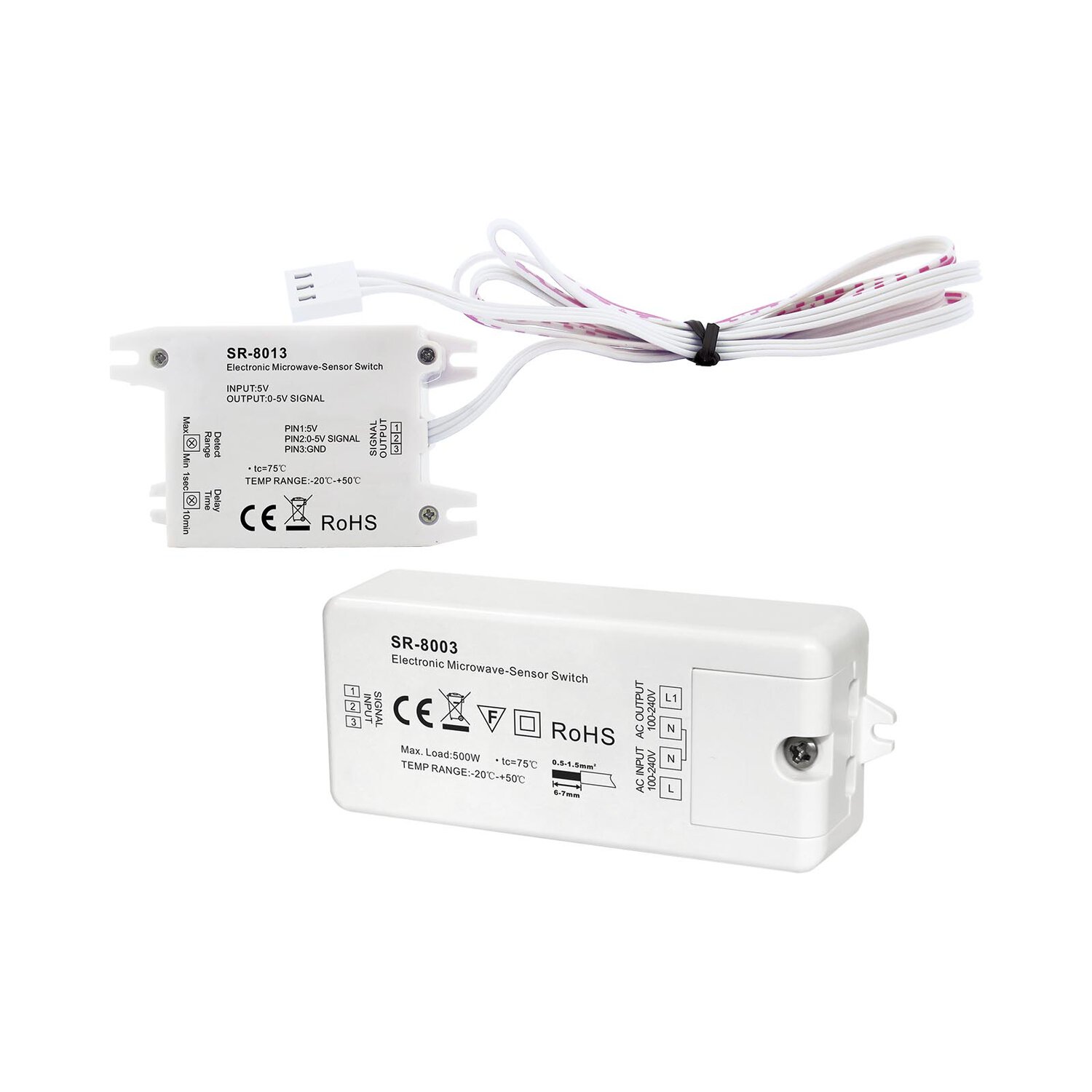

Electronic Microwave Sensor Switch

SR-8003

Product description

Detection range: 3-20m (depends on installation), Time delay: 1s-10min
Time delay will re-start to work when a new motion is detected, and time delay can be adjusted manually.
To detect motion to turn on/off
Ideal for staircase, warehouse, etc.
Sense angle 120°
DC or AC version
Waterproof grade: IP20

The Electronic Microwave Sensor Switch detects motion to turn lights on or off, with a detection range of 3-20m depending on installation. The time delay can be adjusted between 1 second and 10 minutes, and will reset whenever new motion is detected.
It is ideal for use in areas such as staircases and warehouses, with a 120° sensing angle. The switch is available in both DC and AC versions.

No	DC	AC
Input Voltage	12-36VDC	100-240VAC
Output Current	1x8A	5A
Output Power	1x(96-288)W	500W
Remarks	Constant voltage	Constant current
Size(LxWxH)	95x37x20mm	95x37x20mm
