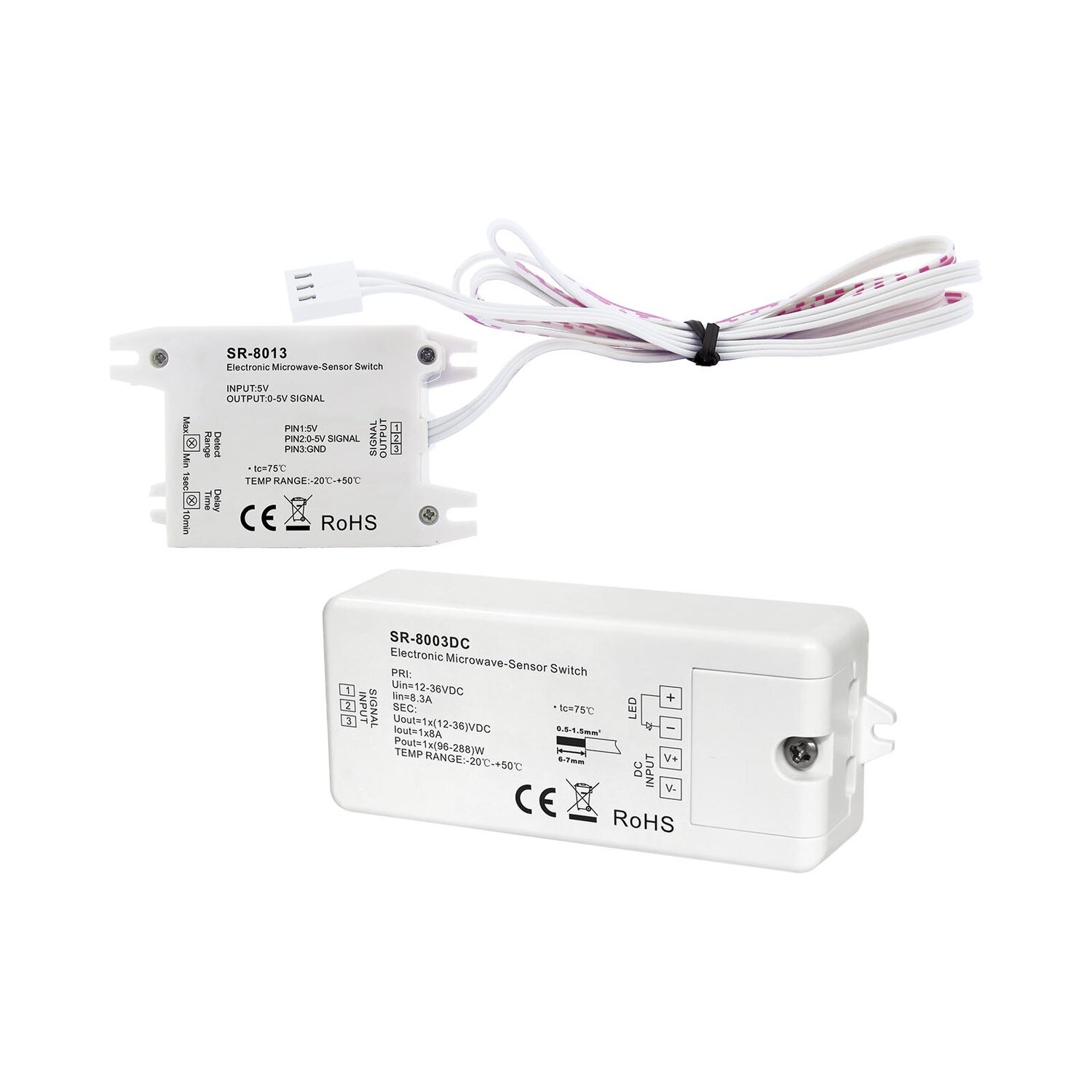

Electronic Microwave Sensor Switch

SR-8003-DC

Product description

Detection range: 3-20m (depends on installation), Time delay: 1s-10min
Time delay will re-start to work when a new motion is detected, and time delay can be adjusted manually.
To detect motion to turn on/off
Ideal for staircase, warehouse, etc.
Sense angle 120°
DC or AC version
Waterproof grade: IP20

The Electronic Microwave Sensor Switch features a sensing angle of 120° and a detection range of 3 to 20 meters depending on installation, with a time delay adjustable from 1 second to 10 minutes that resets upon detecting new motion, supporting both DC and AC versions for motion-activated on/off control in applications such as staircases and warehouses.

No	DC	AC
Input Voltage	12-36VDC	100-240VAC
Output Current	1x8A	5A
Output Power	1x(96-288)W	500W
Remarks	Constant voltage	Constant current
Size(LxWxH)	95x37x20mm	95x37x20mm
