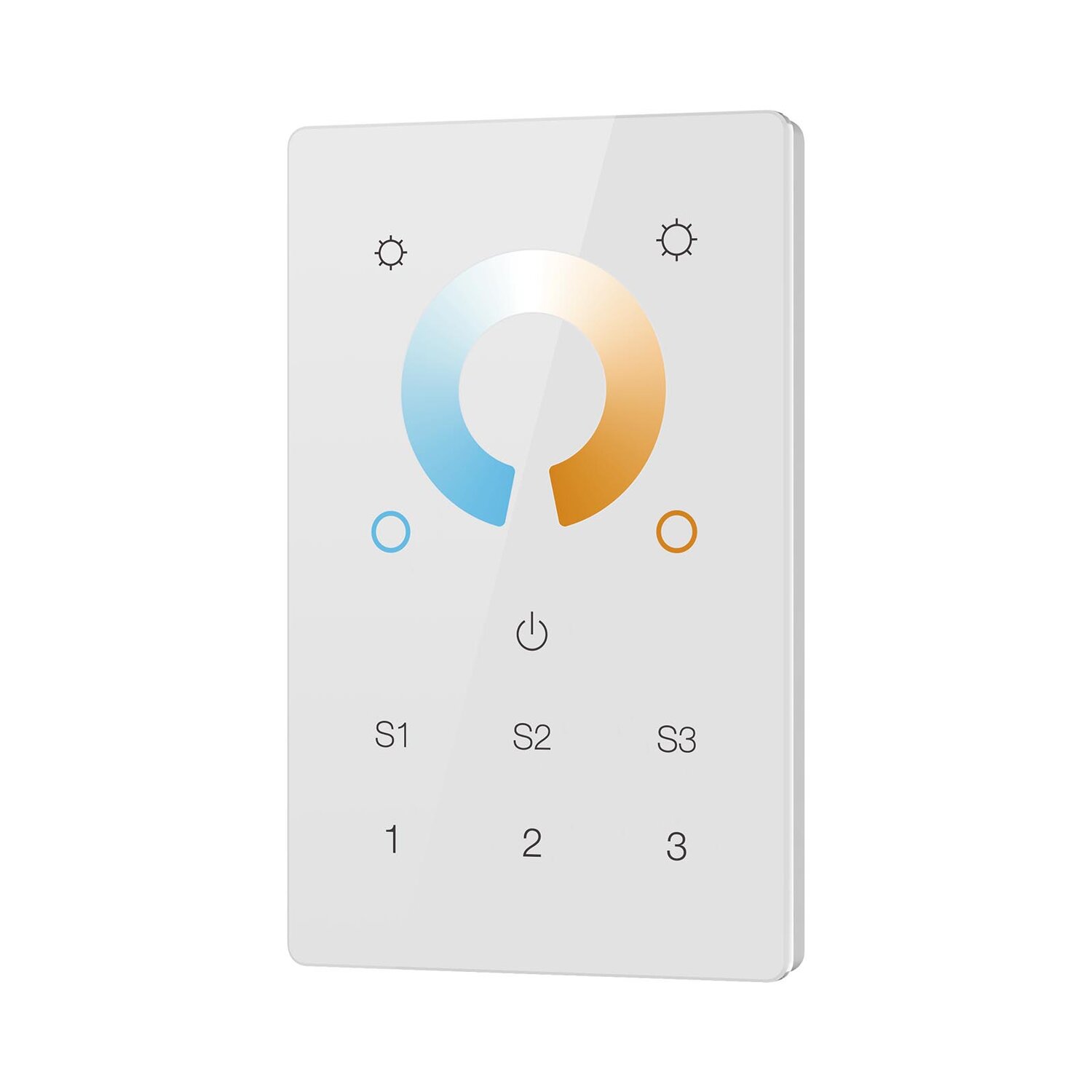

The Dual Color Wall Mounted Touch ZigBee Remote Controller is a Zigbee 3.0 CCT remote featuring a full touch glass interface for smooth correlated color temperature and light intensity control, allowing pairing with Zigbee lighting devices via touchlink commissioning without a coordinator, supporting find and bind mode within the same network, enabling control of up to 3 groups with a maximum of 30 bound lighting devices, operating on the 2.4 GHz global frequency with a transmission range of up to 30 meters, and compatible with universal Zigbee gateways and CCT Zigbee lighting devices.
| Operation Frequency | 2.4GHz |
|---|---|
| Transmission Range (free field) | 30m |
| Power Supply | 100-240V AC |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimming Range | 0.1%-100% |
| Dimensions | 120x75x29.1mm |
| Protection Type | Ip20 |
