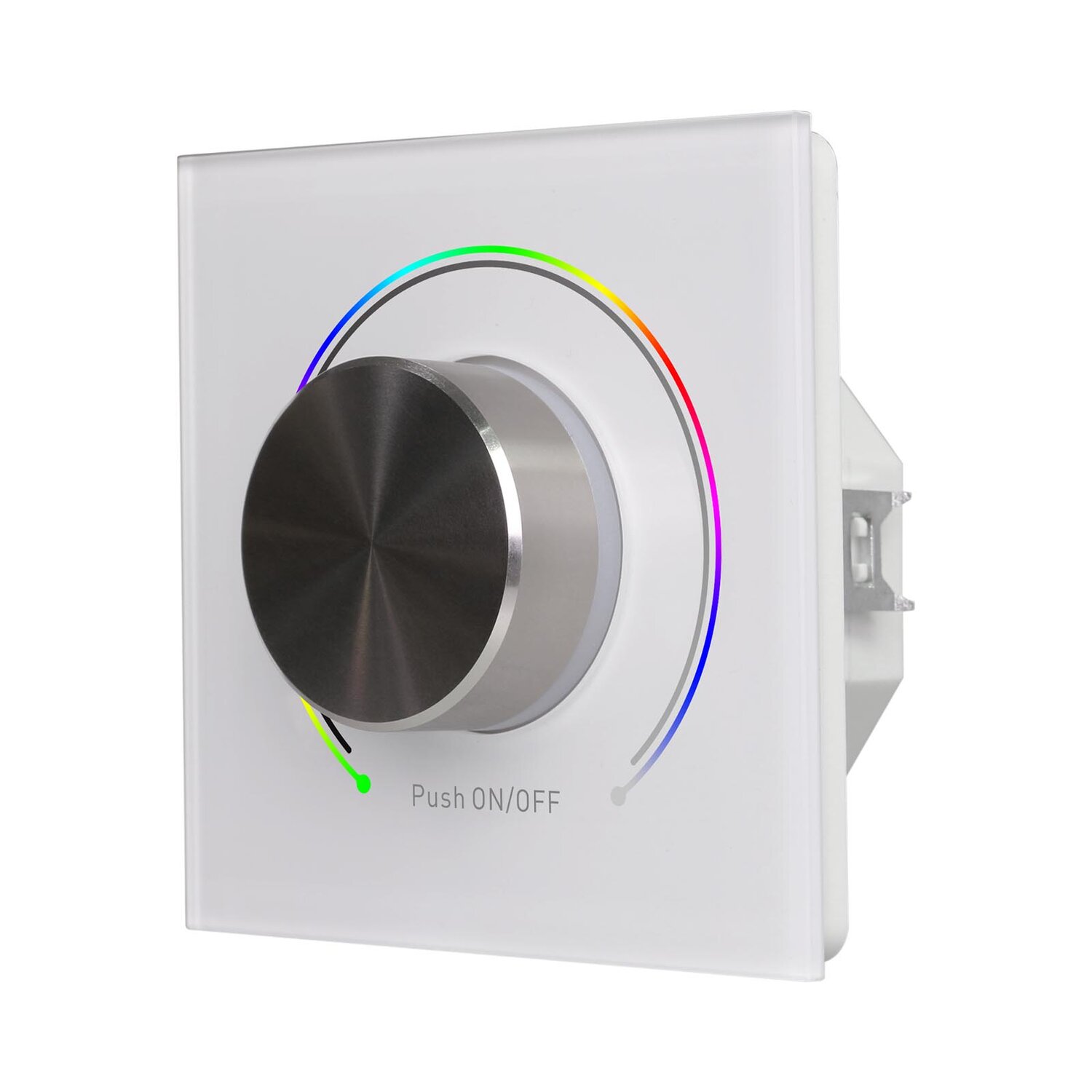

The DT8 RGBW DALI MCU features a built-in 100mA DALI power supply capable of powering up to 50 DALI ECGs and supports DALI DT8 RGBW devices with color type RGBWAF, allowing independent control of the W channel separate from the RGB channels.
It can operate on AC mains or be powered by the DALI bus, and supports broadcast control of up to 100 DALI ECGs on a single DALI line when using four MCUs (two powered by AC mains, two by DALI bus). It also allows setting and deletion of a minimum dimming level.
| Designation | DALI MCU |
|---|---|
| DALI connection | DA+/DA-, max. 300m cable length, DALI power supply output current max 100mA |
| Perm. Cable cross-section | 0.5-1.5 mm2 |
| Rated supply voltage | 100-240 VAC |
| Mains frequency | 50/60 Hz |
| Typ. current | 27mA (@ 230 V/50 Hz/full load) |
| Max. input power | 3.70W |
| Typ. power input on stand-by | 1.23W |
| Typ. input current in no-load operation | 7mA |
| Mains surge capability | 1KV (Between L-N) |
| THD | (@ 230 V/50 Hz/full load) 10% |
| Time to light | 242mS (@ 230 V/50 Hz/full load) |
| Turn off time | 205mS (@ 230 V/50 Hz/full load) |
| Output voltage tolerance | 9-21VDC |
| No. of dimming channels | 1 |
| 50 | |
| Dimming range | – 1% 100 % |
| DALI-mode | DT8 |
| DALI current draw | 5 mA |
| Ambient temperature (Ta) | 0℃ t o +50℃ |
| Max. casing temperature (Tc) | 75℃ |
| Humidity | 10% – 95 % RH non-condensing |
| Storage temperature | to -40℃ +85℃ |
| Type of protection | IP 20 |
| Protection class | II |
| Weight | 110g |
| Dimensions | 80x80x53mm |
