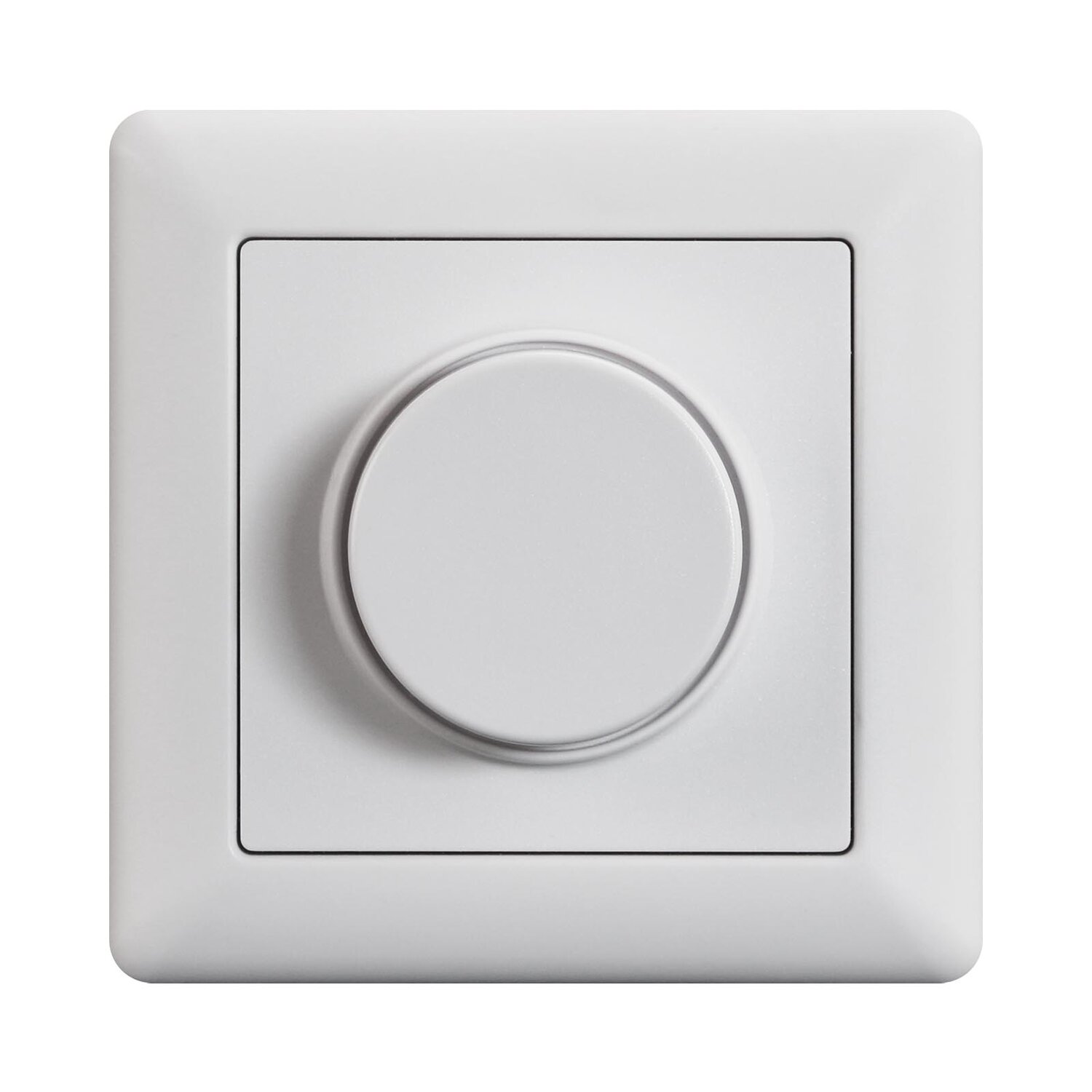

DT8 Group Control Dual Color DALI Rotary Controller

SR-2410RG-CCT-PL

Product description

Comply to DALI standard protocol IEC 62386-102, IEC 62386-207, IEC 62386-209 and in compliance with DALI products from other international incorporation.
Support DALI DT8 devices, color temperature adjustment according to DALI specifications of Device Type 8, Color Type Tc.
DALI bus powered, one channel DALI bus can install multiple dimming controllers.
No external power supply which is provided by DALI bus. Consumption current is 4mA.
Enable to select and control 1 DALI group.
Enable to control all devices on the DALI circuit through broadcast.
Plastic or glass front plate optional.
Backlighting design to indicate the dimming status.

The DT8 Group Control Dual Color DALI Rotary Controller complies with DALI standard protocols IEC 62386-102, IEC 62386-207, and IEC 62386-209, supports DALI DT8 devices with color temperature adjustment according to Device Type 8, Color Type Tc specifications, is powered by the DALI bus with a consumption current of 4mA and requires no external power supply, allows selection and control of one DALI group as well as control of all devices on the DALI circuit through broadcast, features an optional plastic or glass front plate, and includes backlighting to indicate the dimming status.

Output	DALI signal
Power Supply	Supply By DALI Bus
Operation Current	4mA
Operating temperature	0-40℃
Relative humidity	8% to 80%
Dimensions	80 x 80 x 20.8 mm
