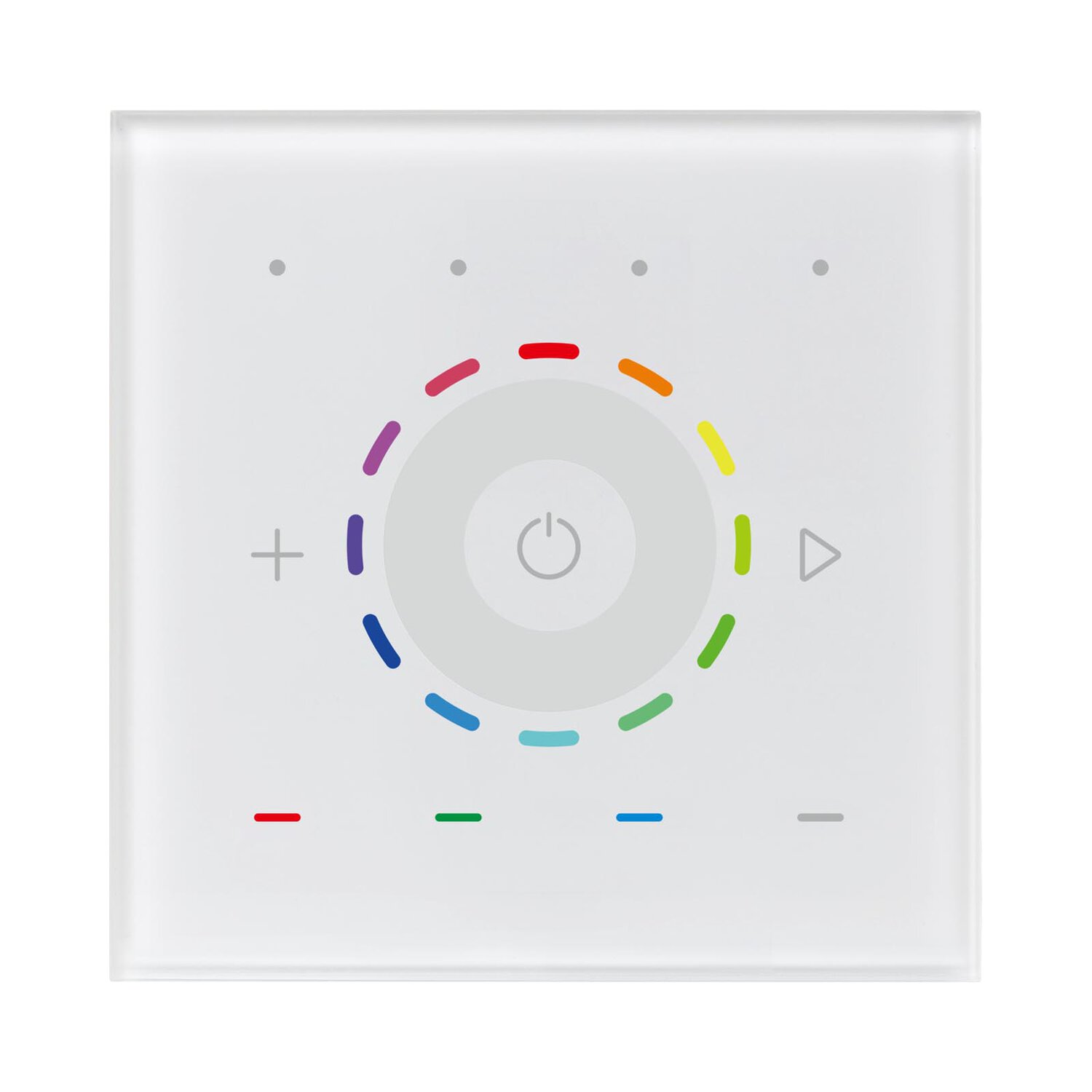

The DT8 DALI RGBW Touch Controller features a touch-sensitive glass interface in white or black and complies with DALI standard protocols IEC 62386-102, IEC 62386-207, and IEC 62386-209, ensuring compatibility with DALI products from other international manufacturers.
It enables control of up to four DALI Groups and allows setting the start DALI group number (0-15) via a rotary switch on the back.
Supporting DT8 devices, it provides color adjustment according to DALI specifications for Device Type 8, Color Type RGBWAF, with each DT8 device controlled through a single DALI address. Additionally, the controller includes 10 built-in color sequences for enhanced functionality.
| Output | DALI signal |
|---|---|
| Power Supply | 12-24VDC |
| Operation Current | < 20 mA |
| DALI consumption | 4 mA |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 86x86x29.1mm |
| Waterproof grade | IP20 |
