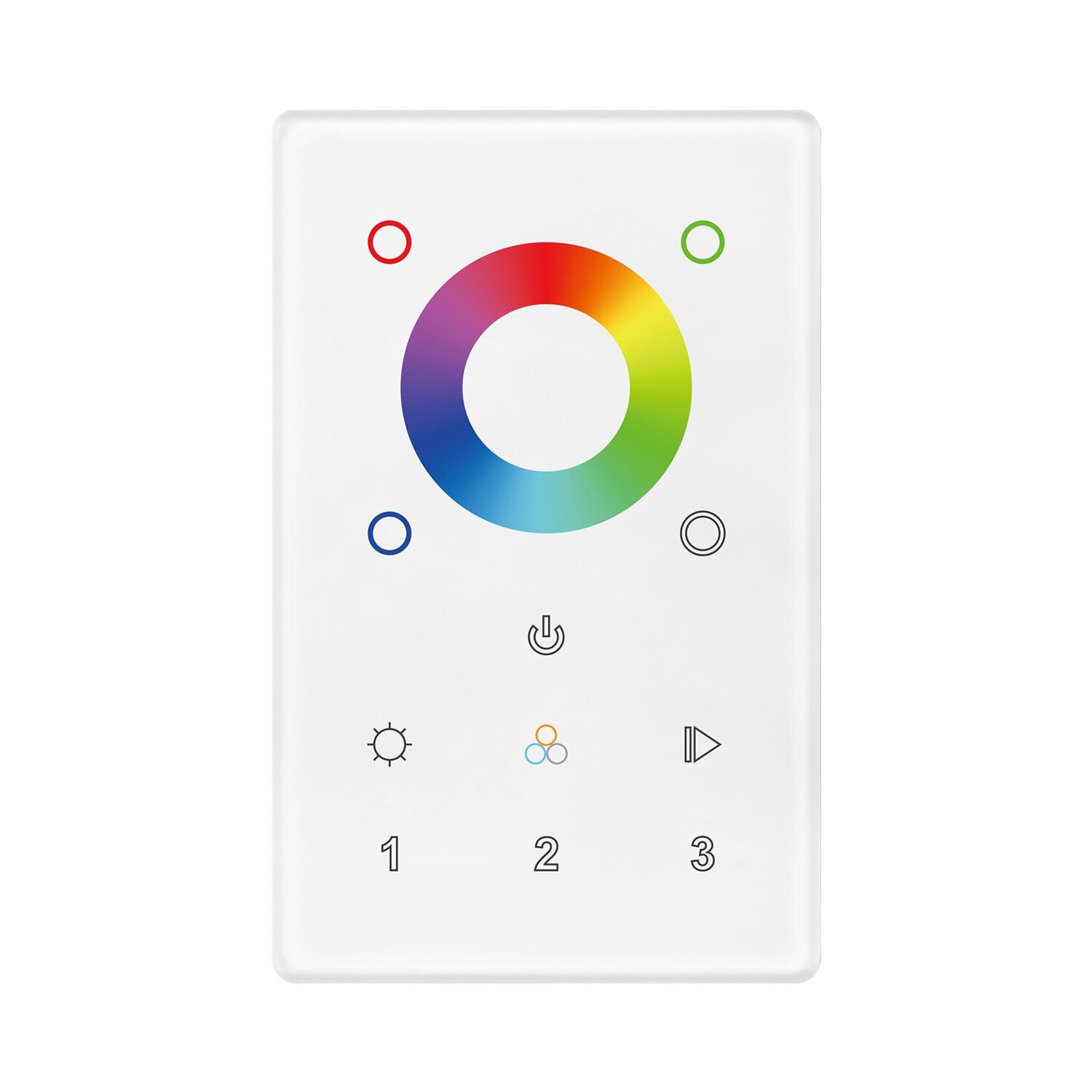

The DT8 DALI RGBW Touch Controller features a touch-sensitive glass interface available in white and black and complies with the DALI standard protocol IEC 62386-209. It includes a built-in 100mA DALI power supply capable of powering up to 50 DALI ECGs and is powered by the DALI bus when not connected to AC mains. Up to 100 DALI ECGs on a single DALI line can be controlled by four control panels via broadcast (two via AC mains, two via DALI bus). The controller allows control of three DALI groups and enables setting the start DALI group number (0-15) using a rotary switch on the back. It supports DT8 devices with color adjustment in accordance with DALI Device Type 8 and Color Type RGBWAF specifications, with each DT8 device controlled via a single DALI address. Additionally, the controller features 10 built-in color sequences for enhanced customization.
| Mains supply | 100-240VAC/DALI bus |
|---|---|
| Output | DALI signal |
| Operation current | <15 mA |
| DALI bus output | 100 mA max |
| DALI consumption | 4 mA |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 75x120x 41.6mm |
| Waterproof grade | IP20 |
