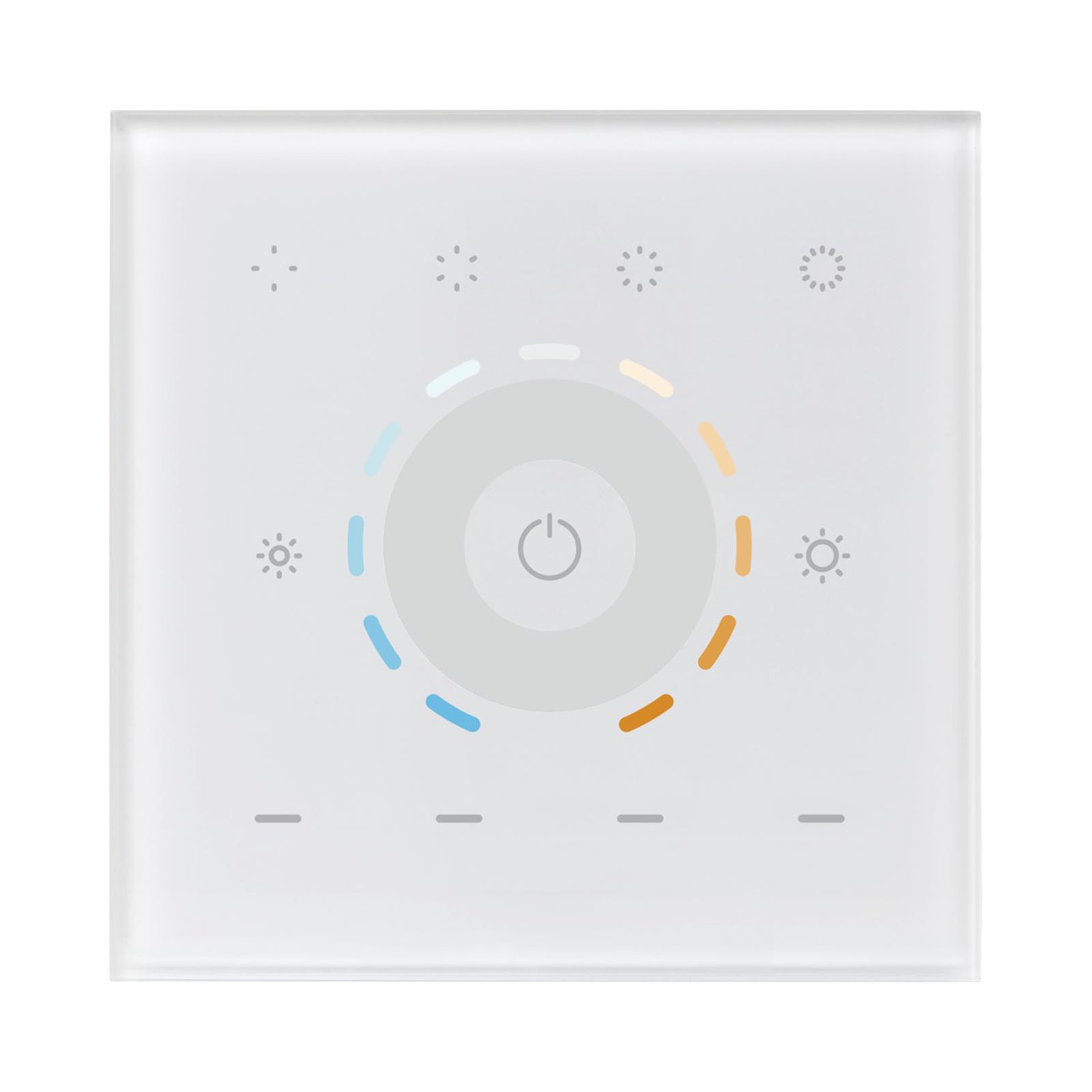

The DT8 DALI Dual Color Touch Controller features a touch-sensitive glass interface available in white or black, and complies with the DALI standard protocols IEC 62386-102, IEC 62386-207, and IEC 62386-209, ensuring compatibility with DALI products from other international manufacturers.
It allows control of one DALI Group and four DALI Scenes, with the ability to set the start DALI group number (0-15) and scene number (0-15) via rotary switches on the back.
Supporting DT8 devices, it enables color temperature adjustment according to DALI specifications for Device Type 8, Color Type Tc, with each DT8 device controlled through a single DALI address.
| Output Signal | DALI signal |
|---|---|
| Power Supply | 12-24VDC |
| Power consumption | < 20 mA |
| DALI consumption | 4 mA |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 86x86x29.1mm |
