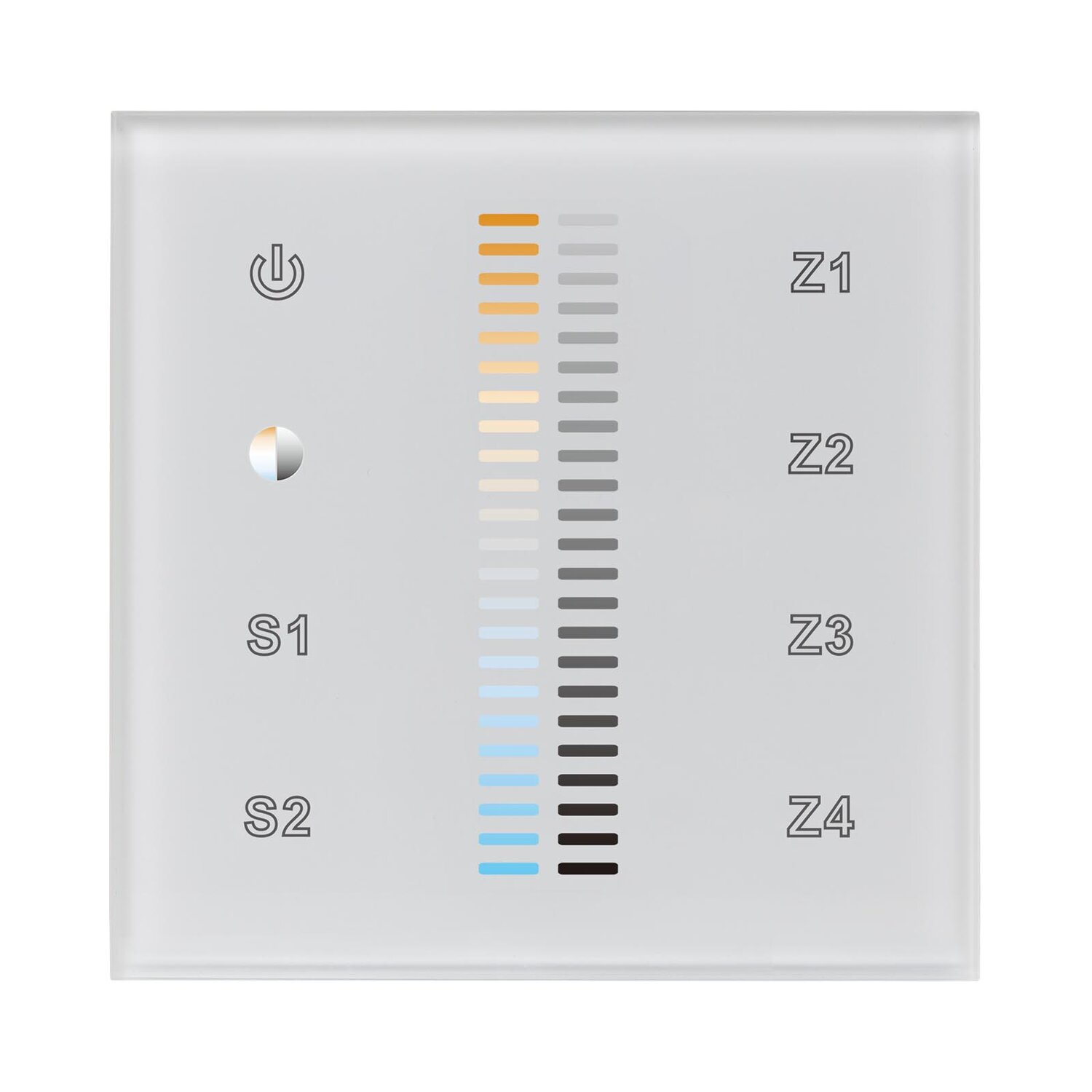

The DT8 DALI Dual Color Touch Controller features a touch-sensitive glass interface available in white and black and complies with DALI standard protocols IEC 62386-102, IEC 62386-207, and IEC 62386-209, ensuring compatibility with other international DALI products.
It includes a built-in 100mA DALI power supply capable of powering up to 50 DALI ECGs and is powered by the DALI bus when not connected to AC mains. Up to 100 DALI ECGs on a DALI line can be controlled by four control panels via broadcast (two via AC mains, two via DALI bus).
The controller enables control of four DALI groups and two DALI scenes, with the ability to set the start DALI group number (0-15) and scene number (0-15) using rotary switches on the back.
It supports DT8 devices with color temperature adjustment according to DALI Device Type 8, Color Type Tc specifications, and each DT8 device is controlled via a single DALI address.
| Power supply | 100-240VAC/DALI bus |
|---|---|
| Output | DALI signal |
| Operation current | <15 mA |
| DALI bus output | 100 mA max |
| DALI consumption | 4 mA |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 86x86x 41mm |
| Waterproof grade | IP20 |
