DT8 DALI Dual Color Touch Controller

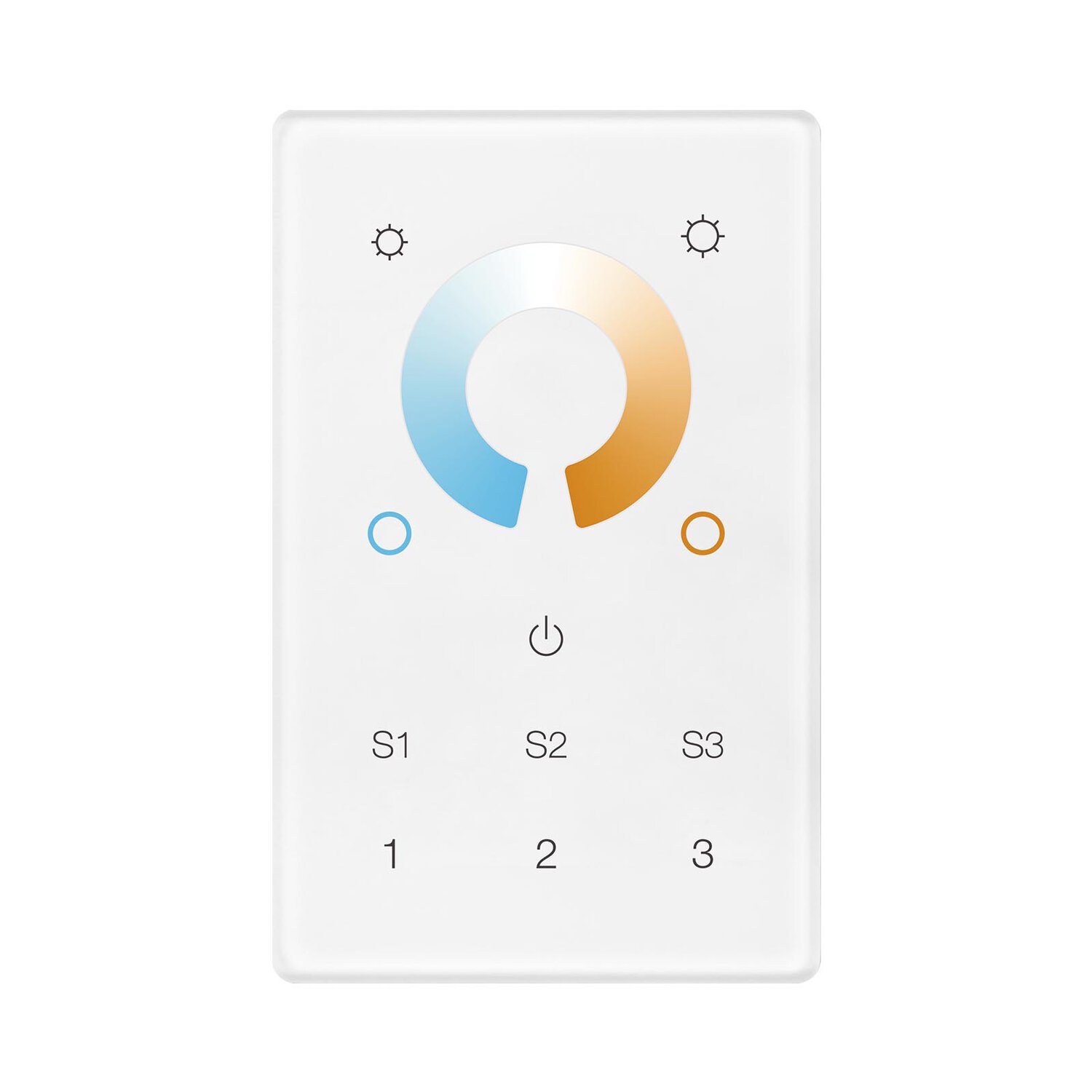

The DT8 DALI Dual Color Touch Controller features a touch-sensitive glass interface available in white and black, and complies with the DALI standard protocol IEC 62386-209. It includes a built-in 100mA DALI power supply capable of powering up to 50 DALI ECGs. This controller is powered by the DALI bus when not connected to AC mains and can control up to 100 DALI ECGs on a single DALI line via broadcast, with up to four control panels (two via AC mains, two via DALI bus). It allows control of three DALI groups and three DALI scenes and enables setting the start DALI group and scene numbers (0-15) using rotary switches on the back. The controller supports DT8 devices, enabling color temperature adjustment in accordance with DALI Device Type 8 and Color Type Tc specifications, with each DT8 device controlled via a single DALI address.
