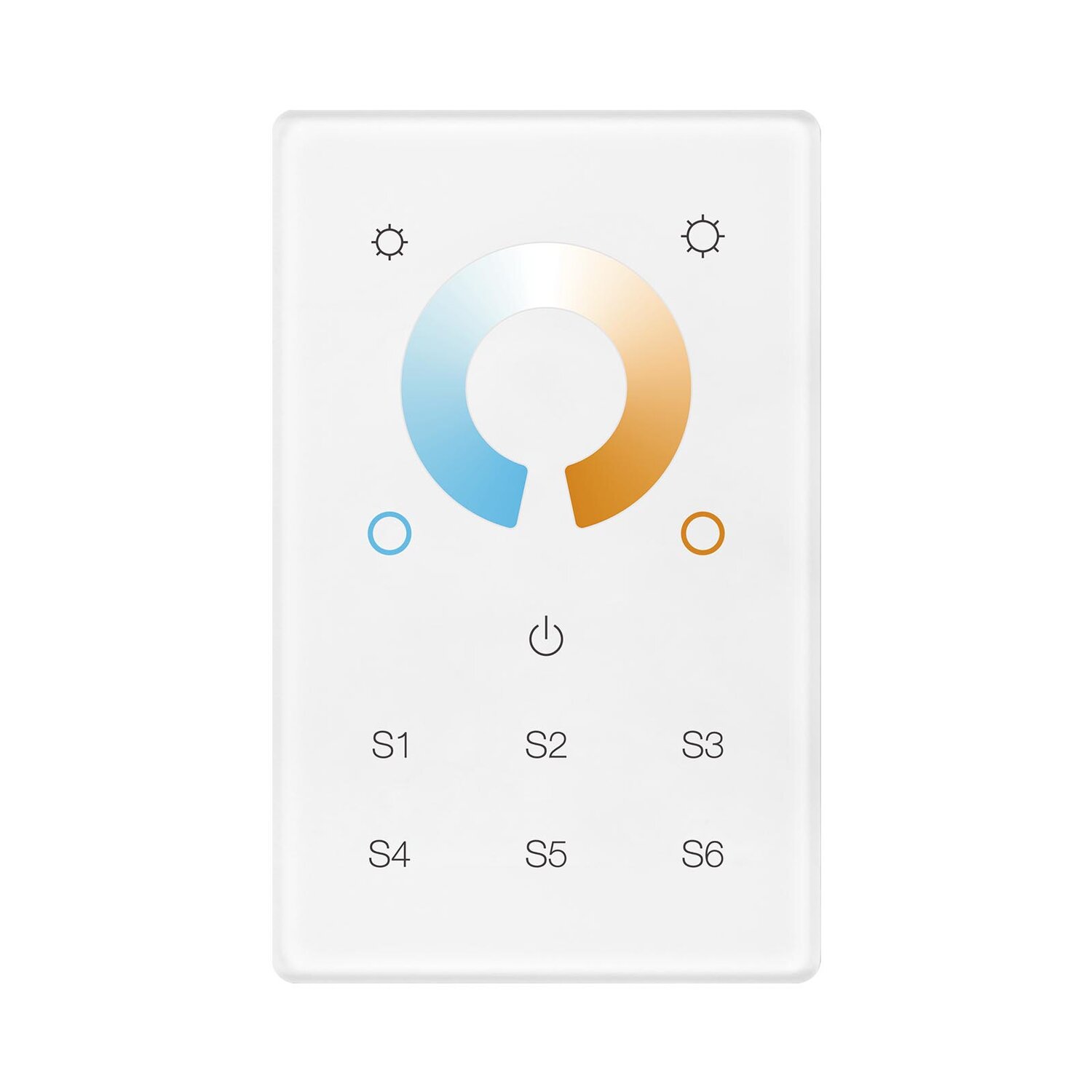

DT8 DALI Dual Color Touch Controller

SR-2300TR-CCT-US(DT8)-AC
Product description
  • Touch sensitive.
  • Glass interface (white & black).
  • Comply to DALI standard protocol IEC 62386-102, IEC 62386-207, IEC 62386-209 and in compliance with DALI products from other international incorporation
  • Built-in 100mA DALI power supply to power up to max. 50 DALI ECGs.
  • Powered by DALI bus while not connected to AC mains.
  • Max. 100 DALI ECGs on a DALI line can be controlled by 4 control panels via broadcast (2 by AC mains, 2 by DALI bus).
  • Enable to control 1 DALI Group and 6 DALI Scenes.
  • Enable to set start DALI group number (0-15) and scene number (0-15) by rotary switches on the back.
  • Support DT8 devices
  • Color temperature adjustment according to DALI specifications of Device Type 8, Color Type Tc.
  • Each DT8 device is controlled via a single DALI address

The DT8 DALI Dual Color Touch Controller features a touch-sensitive glass interface in white or black and complies with DALI standard protocols IEC 62386-102, IEC 62386-207, and IEC 62386-209, ensuring compatibility with DALI products from other international manufacturers.
It includes a built-in 100mA DALI power supply capable of powering up to a maximum of 50 DALI ECGs and operates via the DALI bus when not connected to AC mains.
The controller allows the control of up to 100 DALI ECGs on a DALI line through four control panels via broadcast (two via AC mains, two via DALI bus).
It is capable of controlling one DALI Group and six DALI Scenes, with the ability to set the start DALI group number (0-15) and scene number (0-15) via rotary switches on the back.
Supporting DT8 devices, it enables color temperature adjustment according to DALI specifications for Device Type 8, Color Type Tc, with each DT8 device controlled via a single DALI address.

Power supply 100-240VAC/DALI bus
Output DALI signal
Operation current <15 mA
DALI bus output 100 mA max
DALI consumption 4 mA
Operating temperature 0-40℃
Relative humidity 8% to 80%
Dimensions 75x120x 41.6mm
Waterproof grade IP20
