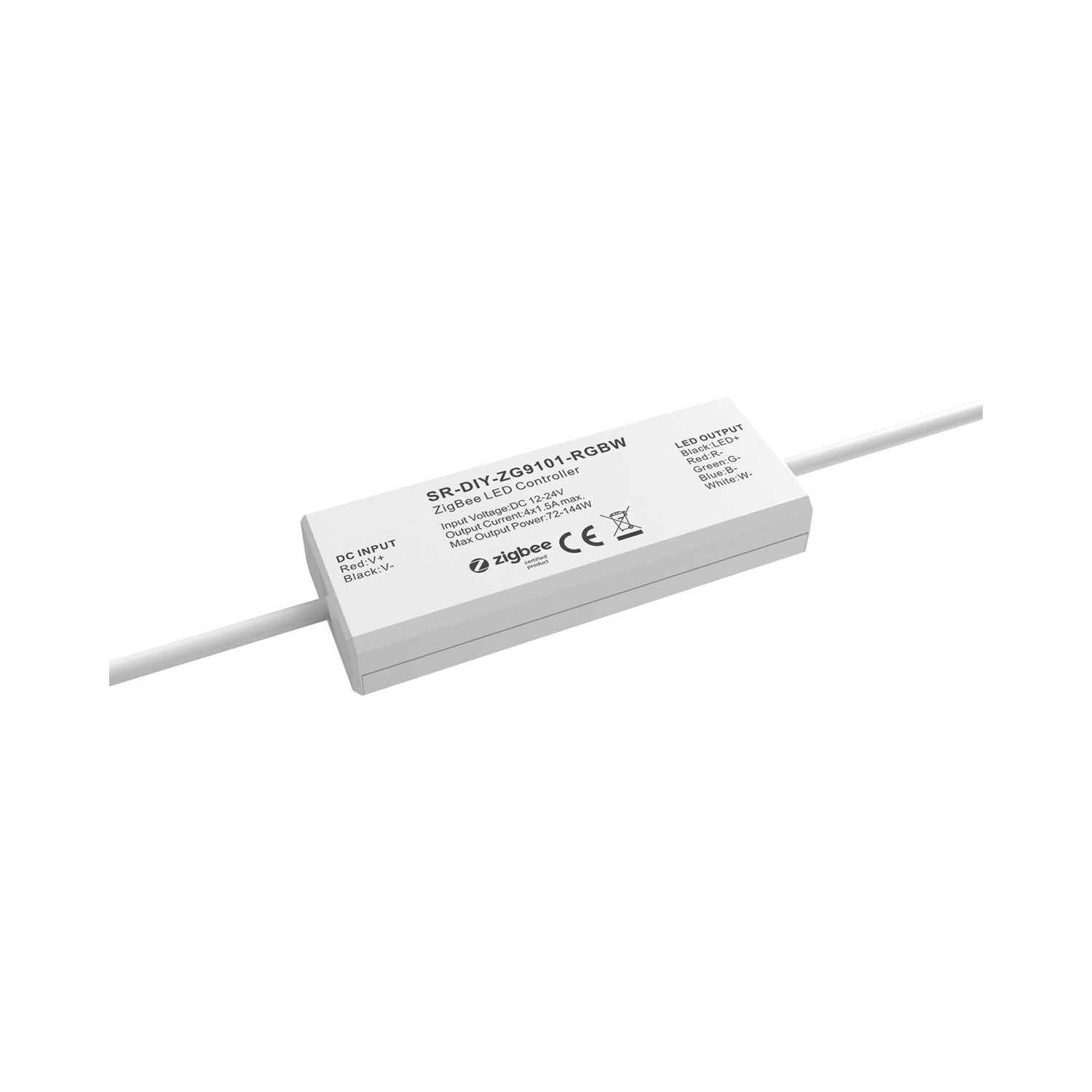

DIY ZigBee RGBW LED Dimmer

SR-DIY-ZG9101-RGBW

Product description

Mini size Zigbee RGBW LED light device based on latest Zigbee 3.0 protocol
Enables to control ON/OFF, light intensity and RGB color of connected RGBW LED lights
W channel can be controlled through Gateway’s color temperature control interface
W channel can be controlled separately from RGB channels through RGBW Zigbee remote or touch panel’s W button
Zigbee end device that supports Touchlink commissioning
Supports self-forming Zigbee network without coordinator
Supports find and bind mode to bind a Zigbee remote
Supports Zigbee green power and can bind max. 20 Zigbee green power remotes
Compatible with universal Zigbee gateway products
Waterproof grade: IP20

The DIY ZigBee RGBW LED Dimmer is a compact Zigbee 3.0-based device designed to control ON/OFF, brightness, and RGB color of connected RGBW LED lights, with the W channel operable separately via a Zigbee remote or touch panel, or through a gateway’s color temperature interface. As a Zigbee end device, it supports Touchlink commissioning, self-forming networks without a coordinator, find and bind mode, and can bind with up to 20 Zigbee green power remotes. It is compatible with universal Zigbee gateway products and suitable for indoor lighting applications.

No	1
Input Voltage	12/24VDC
Output Current	4CH, 1.5A/CH
Output Power	72W@12V, 144W@24V
Output Type	Constant voltage
Dimension (LxWxH)	84x20x14mm
