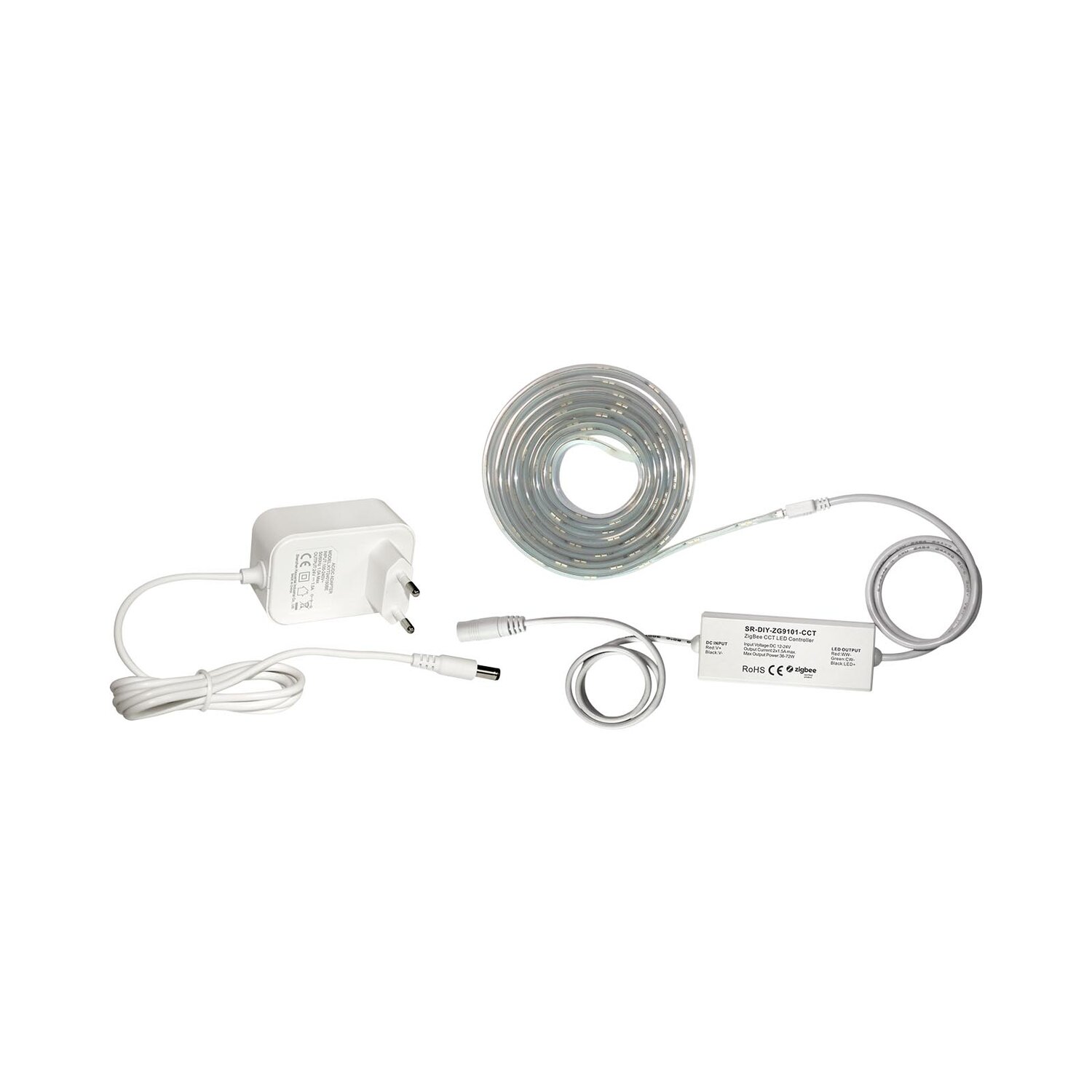

The DIY ZigBee CCT Light Strip Kit is based on the latest ZigBee 3.0 protocol and includes a power adapter, tunable white LED controller, and a tunable white strip, offering a complete solution for customizable lighting. The power adapter is available for different countries, including EU, US, and Australia, ensuring compatibility worldwide. This plug-and-play kit requires no wiring, allowing you to place it anywhere and easily bend it to your desired shape. It enables control over the ON/OFF state, light intensity, and CCT of the connected LED lights. With Touchlink commissioning, the device can directly pair with compatible ZigBee remotes without needing a coordinator. It supports self-forming ZigBee networks, allows device additions, and offers a find and bind mode for binding ZigBee remotes. Additionally, it supports ZigBee green power and can bind up to 20 ZigBee green power switches, making it compatible with universal ZigBee gateway products and CCT ZigBee remotes.
| Input Voltage | 100-240VAC, 50/60Hz | Input Voltage | 12/24VDC |
|---|---|---|---|
| Output Voltage | 24VDC | Output Current | 2CH, 1.5A/CH |
| Output Current | 1.5A | Output Power | 36W@12V, 72W@24V |
| Output Power | 36W | Output Type | Constant voltage |
| Output Type | Constant voltage | Dimension (LxWxH) | 84x20x14mm |
