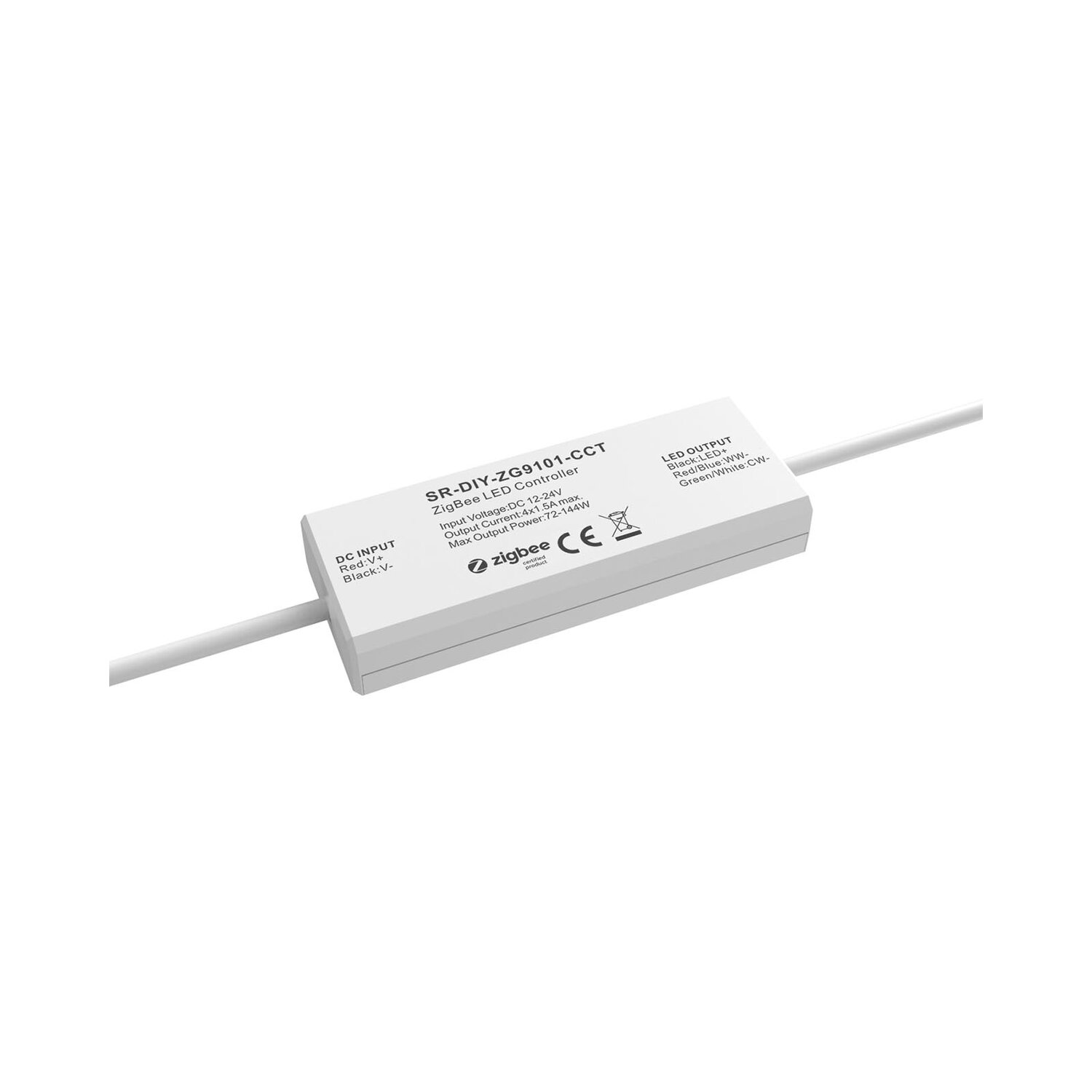

The DIY ZigBee CCT LED Dimmer is a compact Zigbee 3.0-based device that enables ON/OFF, brightness, and correlated color temperature control of connected CCT LED lights, supporting Touchlink commissioning and direct pairing with compatible Zigbee remotes without a coordinator. It allows self-forming Zigbee networks, adding devices to the network, and supports find and bind mode as well as Zigbee green power, with the ability to bind up to 20 Zigbee green power remotes. The device is compatible with universal Zigbee gateways and CCT Zigbee remotes, making it suitable for indoor lighting applications.
| No | 1 |
|---|---|
| Input Voltage | 12/24VDC |
| Output Current | 4CH, 1.5A/CH |
| Output Power | 72W@12V, 144W@24V |
| Output Type | Constant voltage |
| Dimension (LxWxH) | 84x20x14mm |
