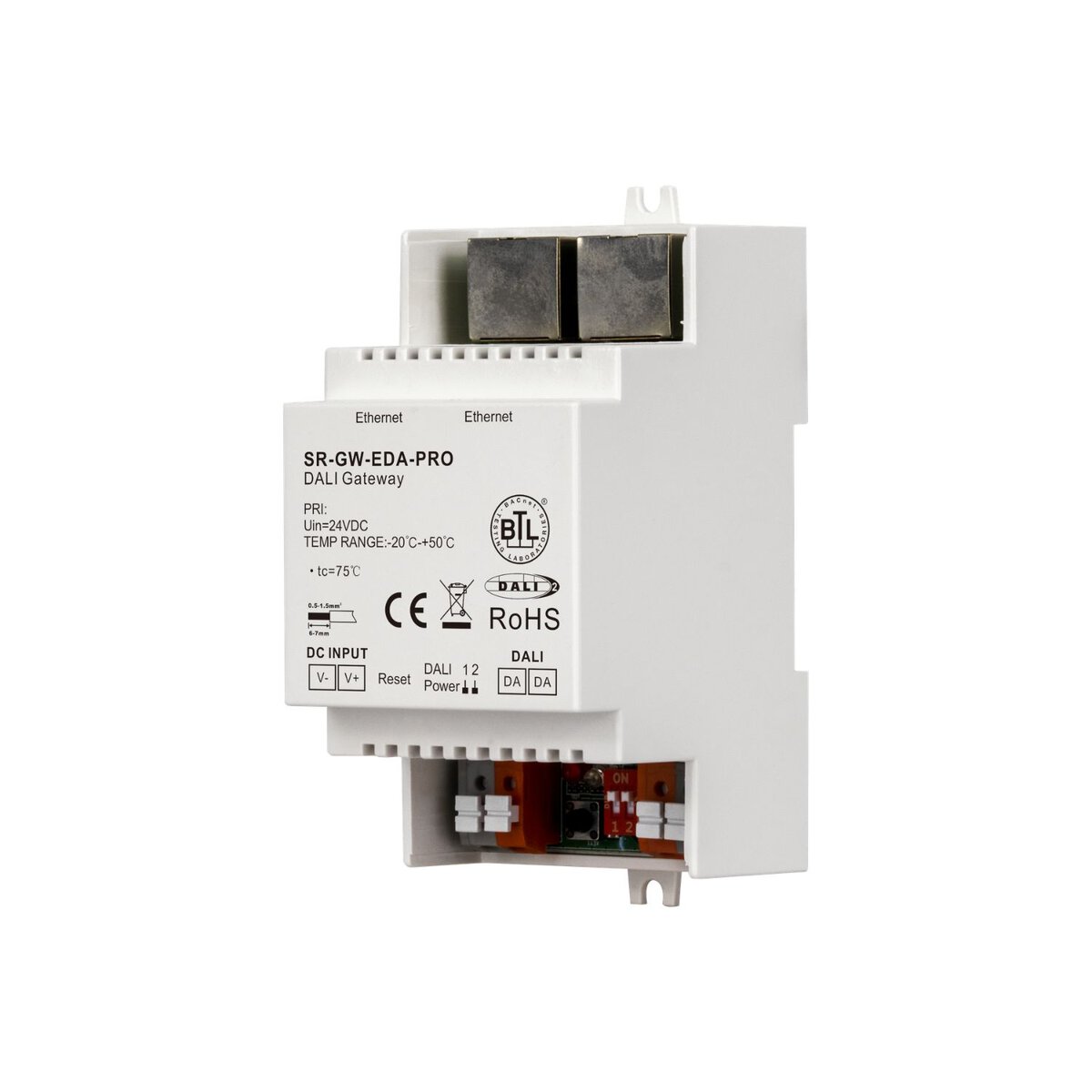

SR-GW-EDA-PRO is a DALI gateway supporting DT6, DT8 Tc, DT8 XY, and DT8 RGBWA device types. It enables addressing, grouping, and scene configuration for up to 64 DALI-1 and DALI-2 control gears. With a built-in 250mA DALI power supply, no extra wiring is required. The device connects easily via Ethernet and allows quick configuration through the DALI Center PC application. It features a built-in battery and RTC, supports timer task configuration, and can monitor DALI bus data. Rated IP20, it comes with a 5-year warranty.
|
Input Voltage |
Number of DALI Channel |
Output Voltage |
Output Current |
Size(LxWxH) |
Ambient Temperature |
|---|---|---|---|---|---|
|
24VDC |
1 |
12-22.5VDC |
Guaranteed supply current: 230mA Max. supply current: 250mA |
110x53x65mm |
-20℃ ~ +50℃ |
