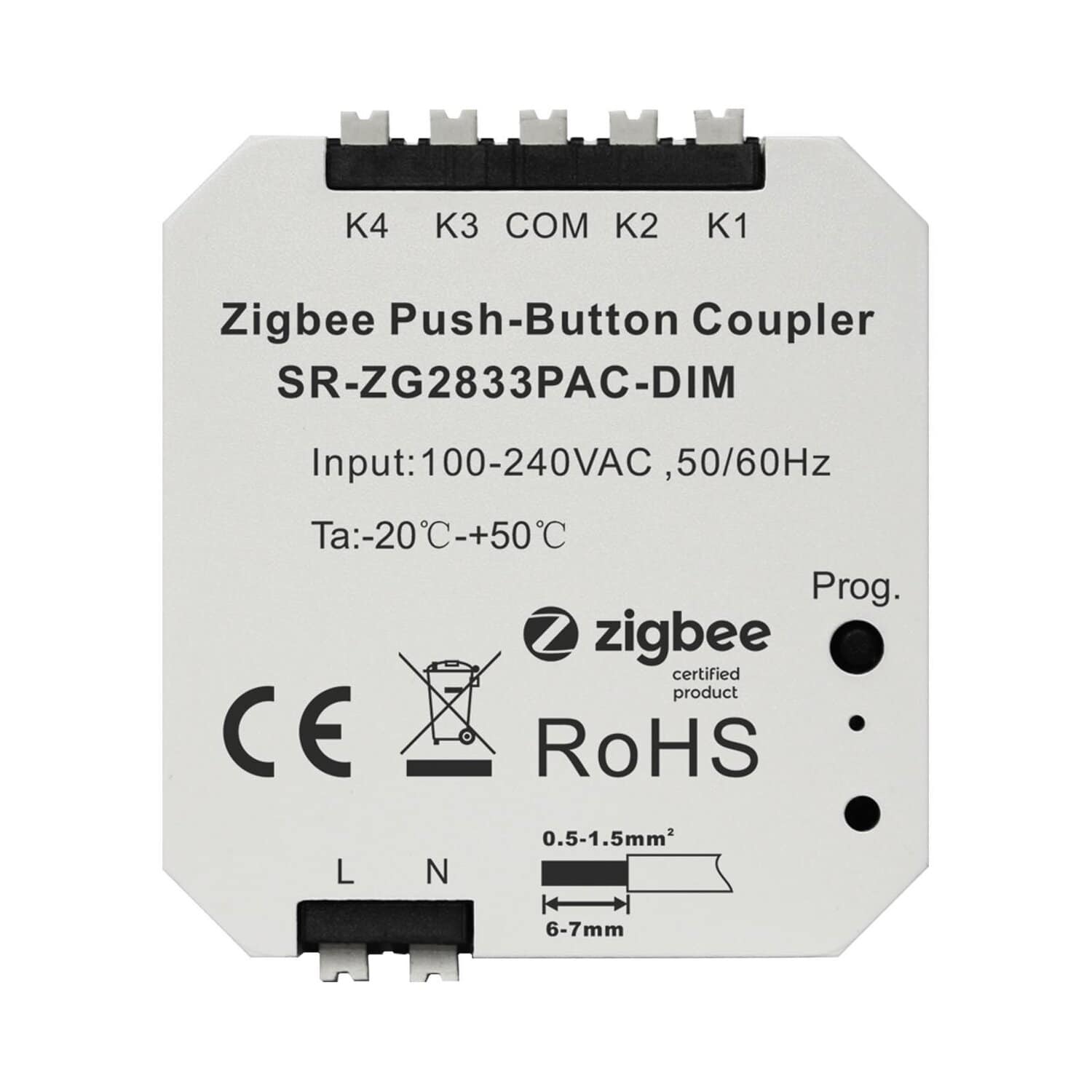

The DIM Zigbee Push-button Coupler is a 4-channel Zigbee interface designed for easy installation in wall or flush-mounted boxes, allowing continued use of existing switches regardless of brand; powered by AC100–240V, it features a built-in wireless transmitter that communicates with dimmable Zigbee lighting devices supporting the Green Power feature, enabling remote control via four push buttons.
| Switch Type | DIM |
|---|---|
| Transmission Range | 10-30m (typical) |
| Radio Frequency | 2.4GHz |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Less than 0.5W |
| Number of Push Buttons | 4 |
| Dimensions | 49.8x43x15.1mm |
| Operating Temperature | -25℃ ~ +45℃ |
| Working Humidity | 10% ~ 95% RH non-condensing |
| Waterproof Grade | IP20 |
| Warranty | 5 years |
