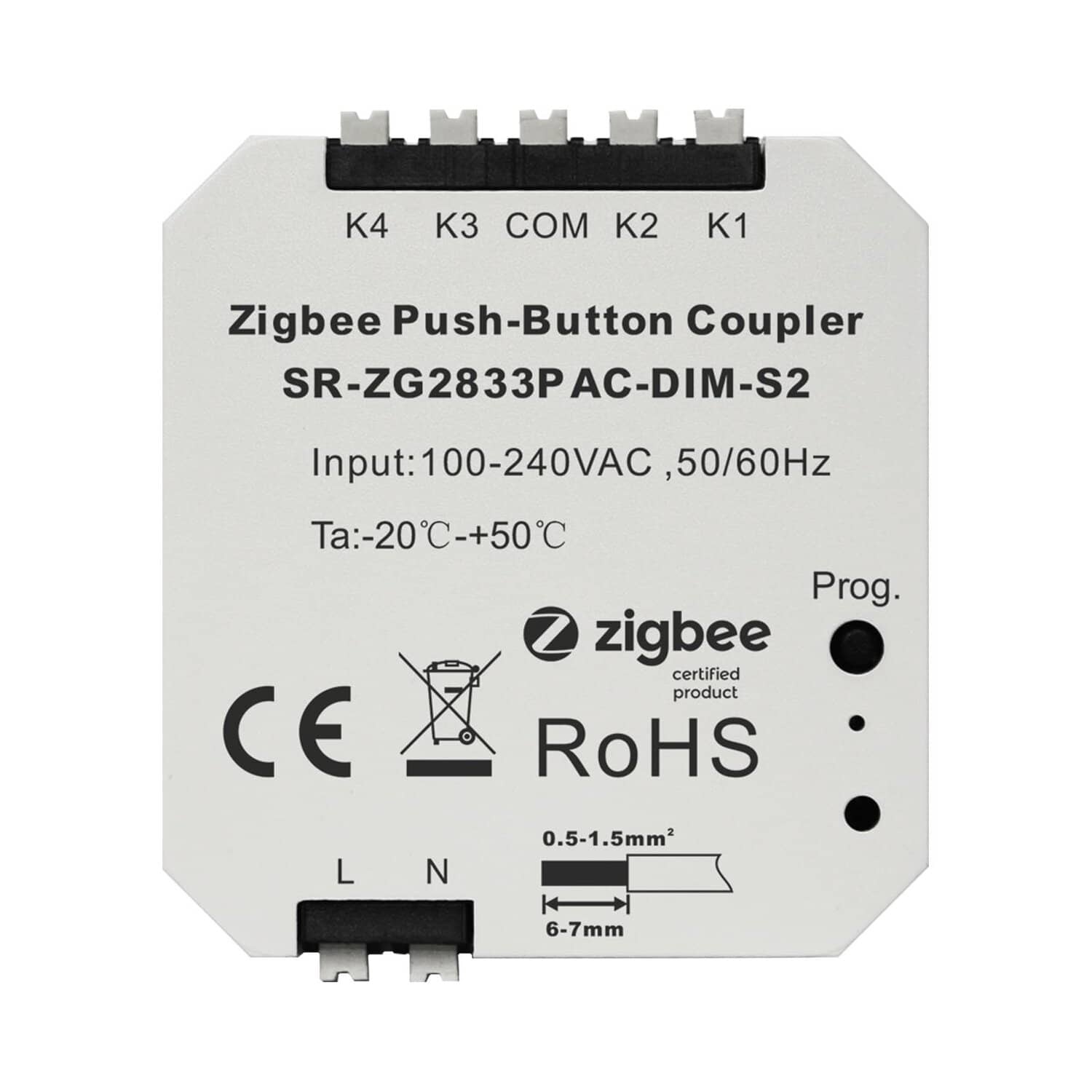

Product Description. The DIM Zigbee push-button coupler is a 4-channel push-button interface for simple wall/flush type box installation.
You can continue to use existing switches, irrespective of the manufacturer. It is a wireless transmitter that communicates with Zigbee light device that supports Green Power feature.
The coupler adopts AC100-240V power input to power a built-in transmitter. This transmitter sends wireless radio signals that are used to remotely control compatible devices.
It enables to learn and control dimmable Zigbee light devices that supports Green Power feature and save 2 scenes for the paired light devices with 4 push buttons.
| Switch Type | DIM+Scene |
|---|---|
| Transmission Range | 10-30m (typical) |
| Radio Frequency | 2.4GHz |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Less than 0.5W |
| Number of Push Buttons | 4 |
| Connector Type | Push-In |
| Wire Size | 0.2 – 1.5mm2 (AWG28 – AWG14) |
| Dimensions | 49.8x43x15.1mm |
| Operating Temperature | -20℃ ~ +45℃ |
| Working Humidity | 10% ~ 95% RH non-condensing |
| Waterproof Grade | IP20 |
| Warranty | 5 years |
