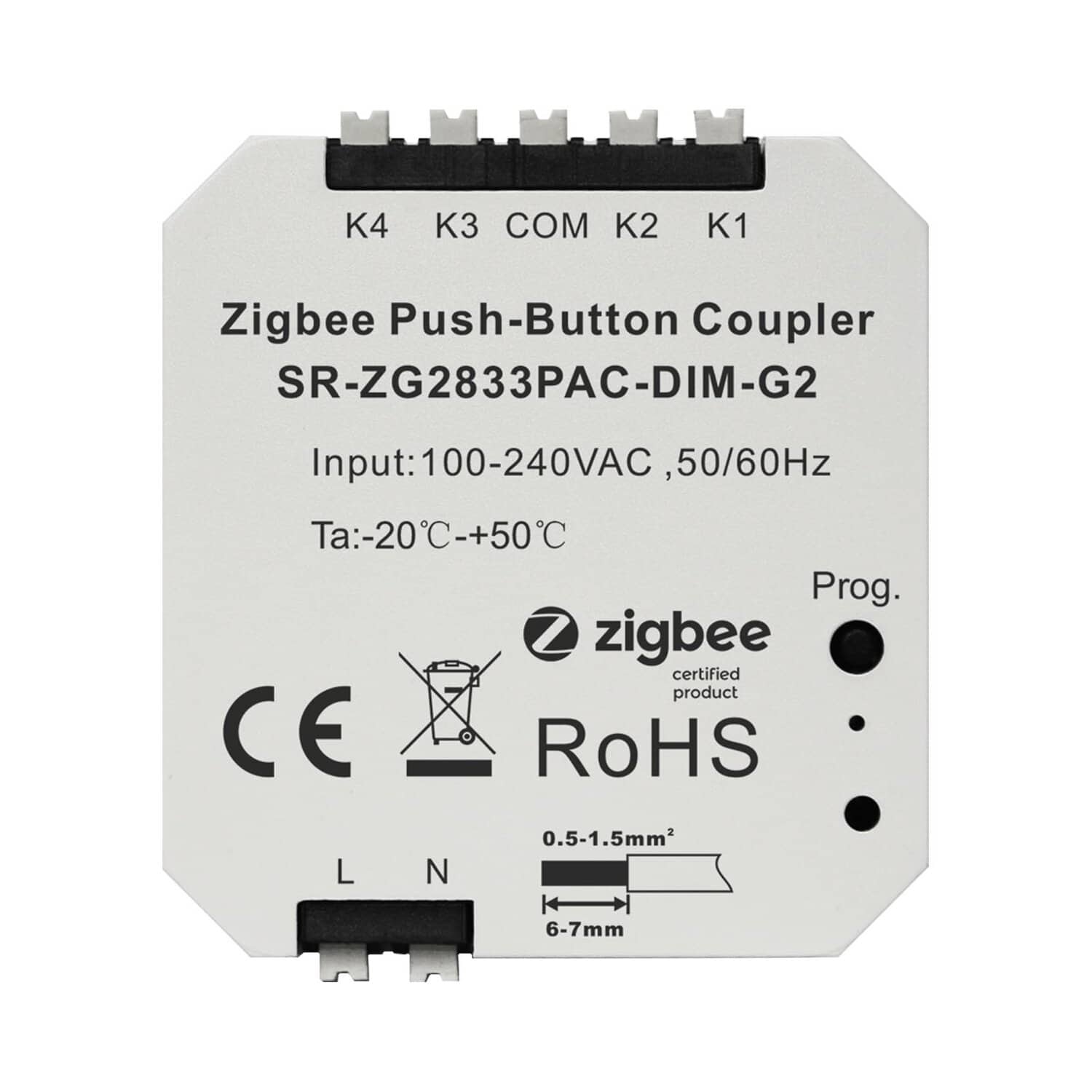

Product Description. The 2-group Zigbee push-button coupler is a 4-channel push-button interface for simple wall/flush type box installation.
You can continue to use existing switches, irrespective of the manufacturer. It is a wireless transmitter that communicates with Zigbee light device that supports Green Power feature.
The coupler adopts AC100-240V power input to power a built-in transmitter. This transmitter sends wireless radio signals that are used to remotely control compatible devices.
It enables to learn and control 2 groups of Zigbee light devices that supports Green Power feature with 4 push buttons.
| Switch Type | DIM |
|---|---|
| Transmission Range | 10-30m (typical) |
| Radio Frequency | 2.4GHz |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Less than 0.5W |
| Number of Push Buttons | 4 |
| Dimensions | 49.8x43x15.1mm |
| Operating Temperature | -25℃ ~ +45℃ |
| Working Humidity | 10% ~ 95% RH non-condensing |
| Waterproof Grade | IP20 |
| Warranty | 5 years |
