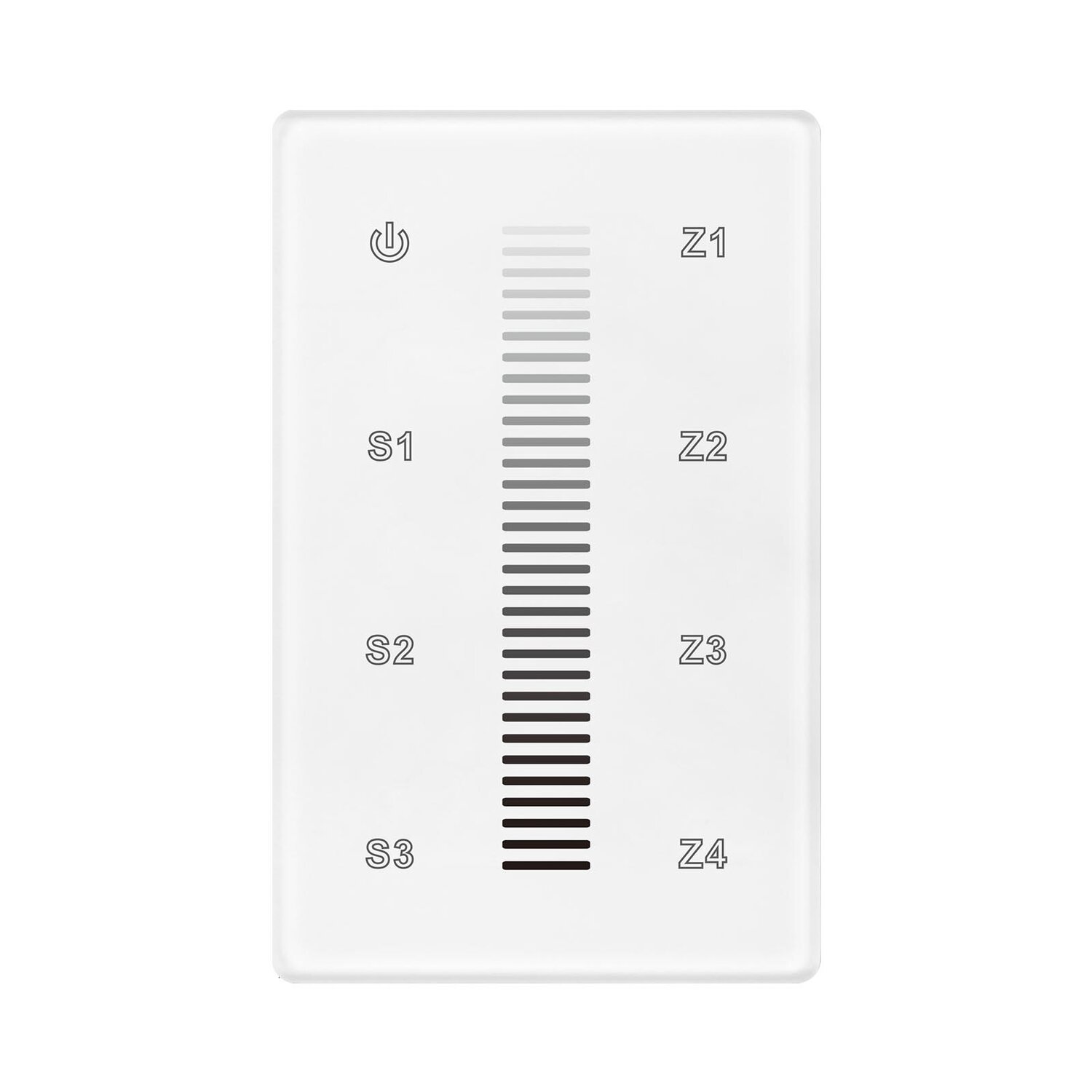

The DALI Single Color Touch Controller features a touch-sensitive glass interface available in white and black and complies with DALI standard protocols IEC 62386-102 and IEC 62386-207, ensuring compatibility with other international DALI products.
It provides control for four light zones, with each zone able to control one DALI address for switching and dimming. The start DALI address number (0-63) for the four zones can be set via rotary switches on the back, and it also enables saving up to three scenes.
| Output Signal | DALI signal |
|---|---|
| Power Supply | 12-24VDC |
| Power consumption | < 20 mA |
| DALI consumption | 4 mA |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 75x120x29.1mm |
