DALI Single Color Touch Controller

SR-2300TS-DIM-EU-AC

Product description

Touch sensitive.
Glass interface (white & black).
Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation
Built-in 100mA DALI power supply to power up to max. 50 DALI ECGs.
Max. 100 DALI ECGs on a DALI line can be controlled by 4 control panels via broadcast (2 by AC mains, 2 by DALI bus).

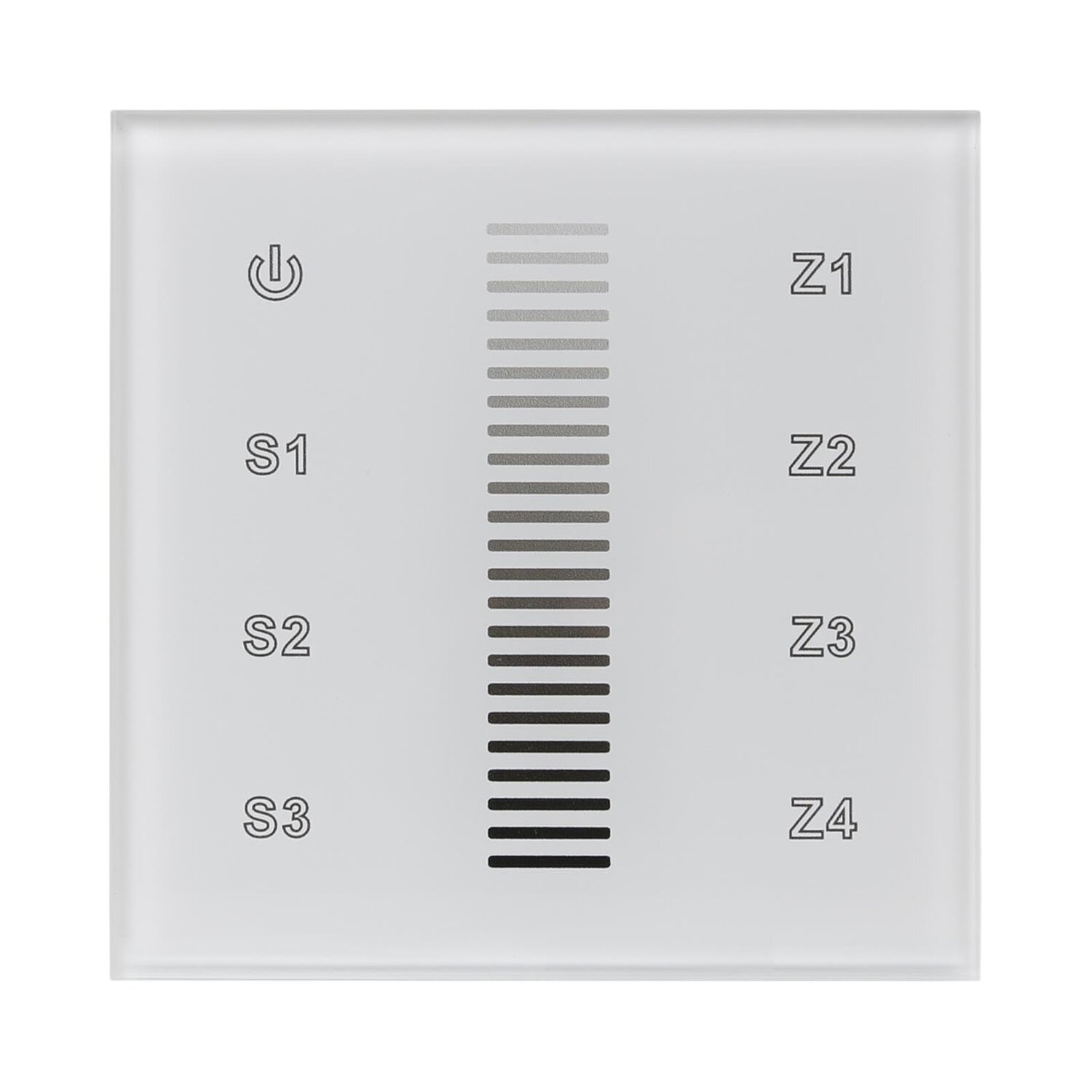

Product Description. This DALI Single Color Touch Sensitive Controller has glass interface, and both white and black are available.
This control complies to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation. Besides, this device enables to control 4 DALI groups and 3 DALI scenes, set start DALI group number and start DALI scene number to be controlled by rotary switches, and control all devices on DALI line via broadcast.

Power supply	100-240VAC/DALI bus
Output	DALI signal
Operation current	<15 mA
DALI bus output	100 mA max
DALI consumption	4 mA
Operating temperature	0-40℃
Relative humidity	8% to 80%
Dimensions	86x86x 41mm
Waterproof grade	IP20
