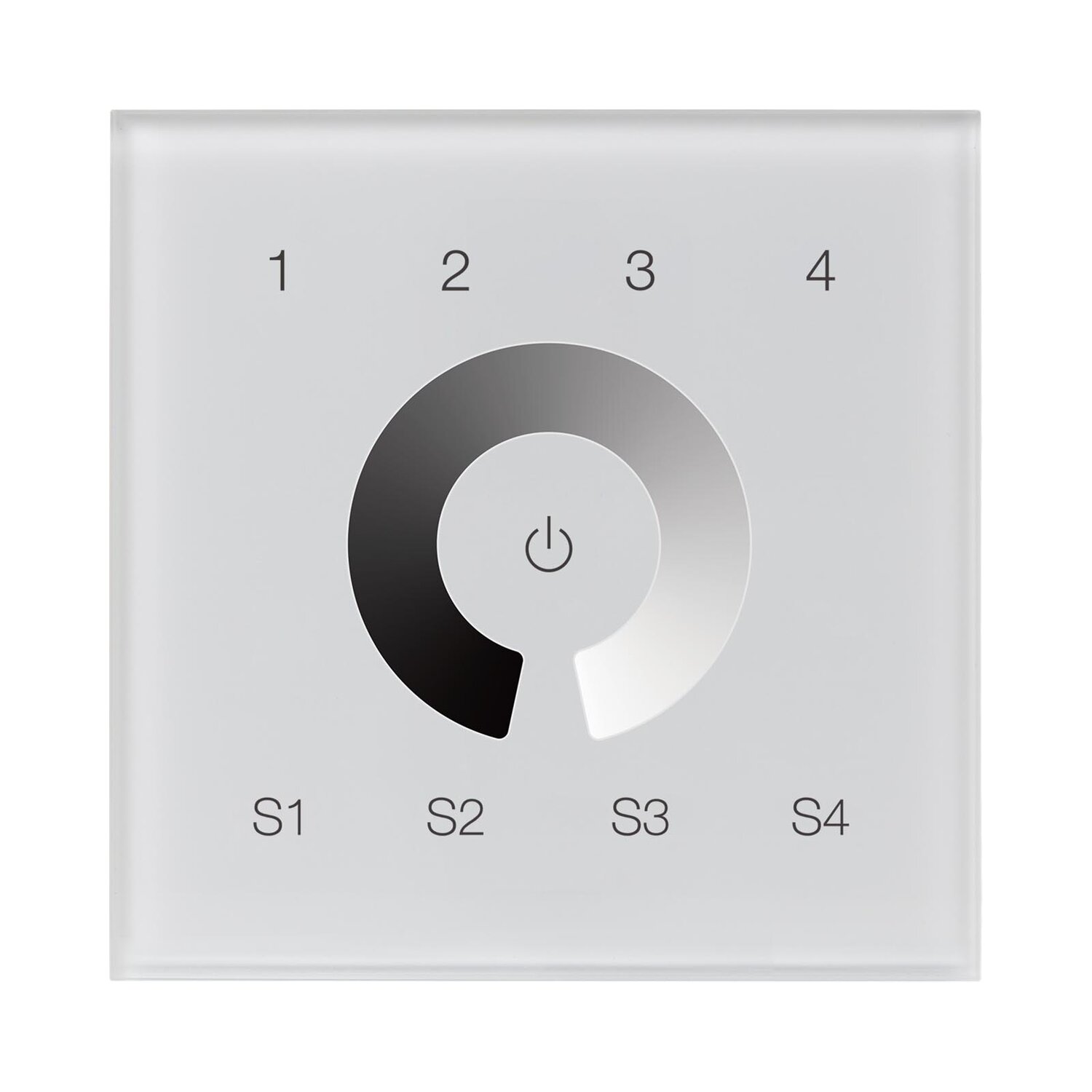

The DALI master SR-2300TR-G4-DIM-EU is a touch panel DALI dimmer which adopts high strength and ultra sensitive tempered glass panel to offer accurate and fast brightness adjustment functions to control single color LEDs, the LED controller complies to IEC 62386-102, IEC 62386-207 and can be compatible with DALI products from other international corporations. The touch color wheel enables smooth brightness adjustment.
The DALI master can control 4 DALI addresses (EU Version) and 4 DALI scenes (EU Version). It enables to set start DALI address number (total 64 addresses from 0-63) to be controlled by rotary switches on the back.
Europe and US versions are both available and easy to be installed into existing standard size wall box. This DALI controller is available with both 100-240VAC input and 12-24VDC input versions.
AC input version is designed with built-in 100mA DALI power supply to power up to 50 DALI ECG and it can also be powered by DALI bus while not connected to AC mains. max. 100 DALI ECG can be controlled by 4 AC input DALI touch panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.
| Power supply | 100-240VAC/DALI bus |
|---|---|
| Output | DALI signal |
| Operation current | <15 mA |
| DALI bus output | 100 mA max |
| DALI consumption | 4 mA |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 86x86x 41mm |
| Waterproof grade | IP20 |
