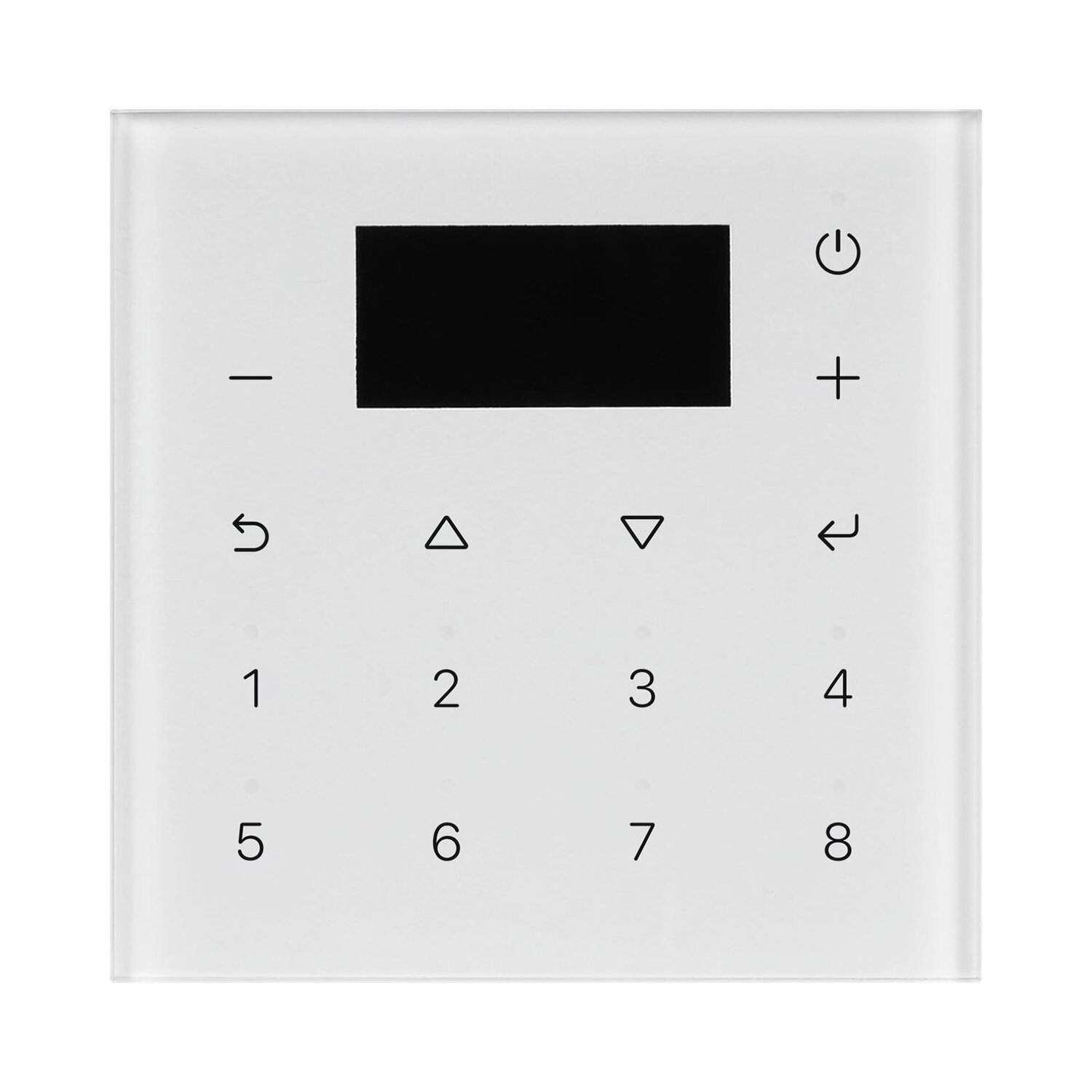

DALI Master Controller Touch Panel

SR-2300T-OLED

Product description

The DALI Master control panel is a central controller of a DALI system to control DALI control gears on the DALI line. Its main features are as follows:
(1)Enables to automatically assign and manage address to up to 64 control gears.
(2)Enables to control up to 64 control gears with 64 addresses.
(3)Supports 5 DALI control gear device types: DT6, DT8 Tc, DT8 XY coordinate, DT8 RGBWA, DT7 Switching actuator.
(4)Enables to set up to 16 DALI scenes for each control gear.
(5)Enables to assign each control gear to up to 16 DALI groups.
(6)Enables to set up to 256 timer tasks, each timer task can be configured as follows:
a.to recall a DALI scene, and the destination control gears can be all control gears, a designated group or a designated control gear.
b.to start and stop a brightness fade and color fade cycle schedule, and the destination control gears can be all control
gears, a designated group or a designated control gear.
c.to start and stop a 24-hour Bionic schedule for the CCT control gears, and the destination control gears can be all CCT control gears, CCT control gears in a designated group or a designated CCT control gear.
(7)Enables to set up to 4 types brightness fade and color fade cycle schedule, the destination control gears of each cycle schedule can be one designated color type control gear, and the destination control gears can be all control gears with designated color type, control gears with designated color type in a designated group or a designated control gear with the designated color type. The cycle schedule is to control brightness fade and color fade.
(8)Enables to set up to 4 Bionic color temperature schedules for the CCT control gears, each color temperature schedule curve can set brightness and color temperature from 0: 00 to 23: 00, total 24 hours time range. The Bionic schedule is the bionic control of brightness fade and color temperature fade changing according to the change of natural light.
(9)Enables to set and manage the following parameters: beeper volume and tone, vibrator vibrating effect, backlit brightness, RTC, lock display, off display, bus status etc.
(10)With PC configuration software tool, enables to configure and read parameters of the DALI control panel and control gears, and manage the control panel and control gears.

The DALI Master control panel SR-2300T-OLED is a central controller of a DALI system to control DALI control gears on the DALI line. It enables to automatically assign and manage addresses to up to 64 control gears. It supports 5 DALI control gear device types: DT6, DT8 Tc, DT8 XY coordinate, DT8 RGBWA, DT7 Switching actuator. It also supports DALI-2 type 301 push button input devices. It enables to set up to 16 DALI scenes for each control gear. It enables to assign each control gear to up to 16 DALI groups. It enables to set up to 256 timer tasks. It enables to set up to 4 types brightness fade and color fade cycle schedules. It enables to set up to 4 Bionic color temperature schedules for the CCT control gears. It is designed with PC configuration software tool, enables to configure and read parameters of the DALI control panel and control gears, and manage the control panel and control gears.

Output Signal	DALI signal
Power Supply	100-240VAC
Power consumption	< 15 mA
Operating temperature	0-40℃
Relative humidity	8% to 80%
Dimensions	86x86x41mm
