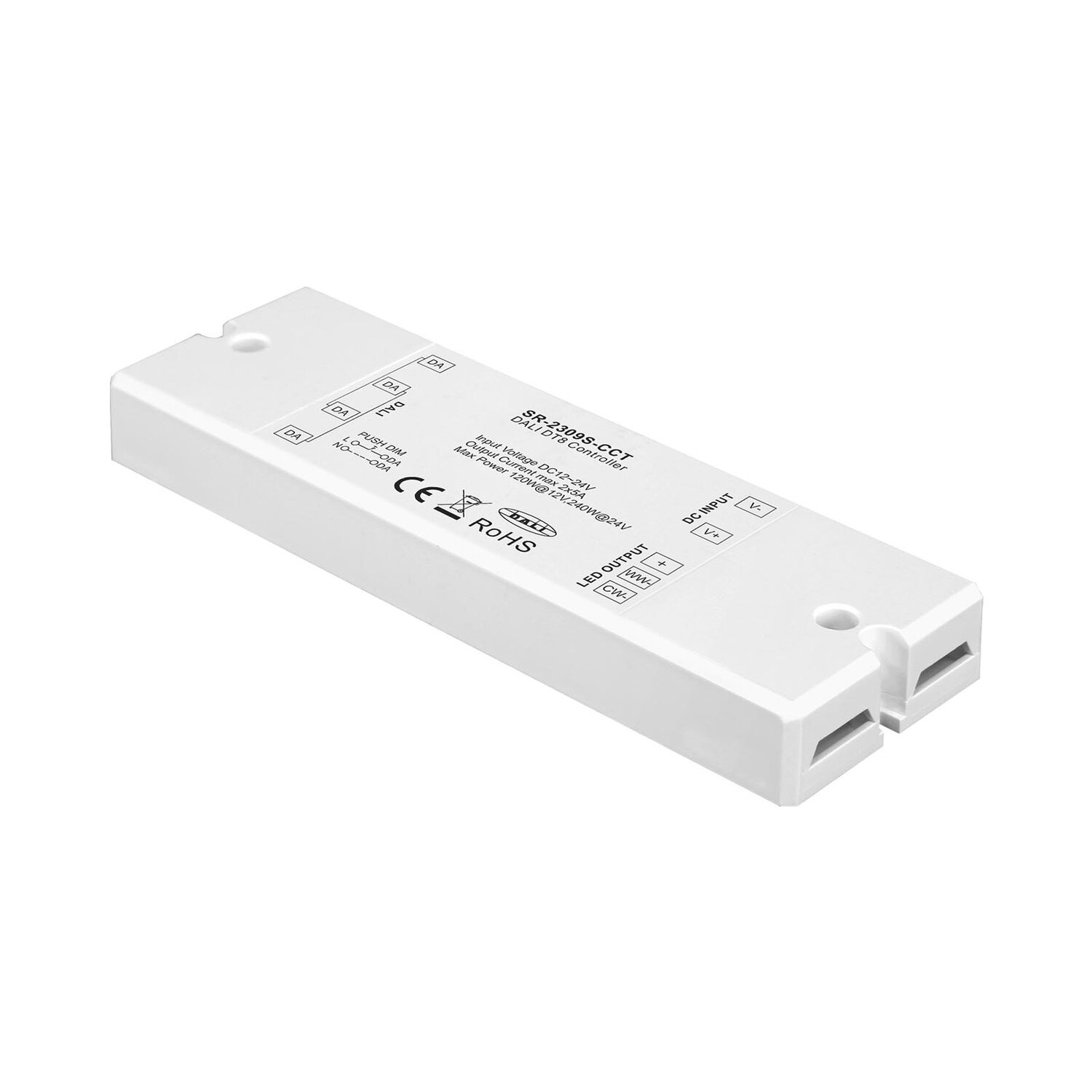

Product Description. This constant voltage DALI DT8 dual color LED dimmer is a DALI-2, CE and FC certified device, with built-in DALI-2 interface. This device is in compliance with IIEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011, can adjust dimming and color temperature, and can control warm white and cool white output via a single DALI address. It can also be configured via DALI master USB interface. With two channels constant voltage output and maximum 5A per channel, this dimmer can support DT8 device commands, and is compatible with DALI masters that support DT8 commands.
| Input Voltage | 12-24VDC |
|---|---|
| Output Current | 2x5A |
| Output Power | 2x(60-120)W |
| Remarks | Constant voltage |
| Size(LxWxH) | 145×46.5x16mm |
| DALI Consumption | 2mA |
| Dimming Range | 0.1%-100% |
| Ambient Temperature | -20℃ +50℃ |
