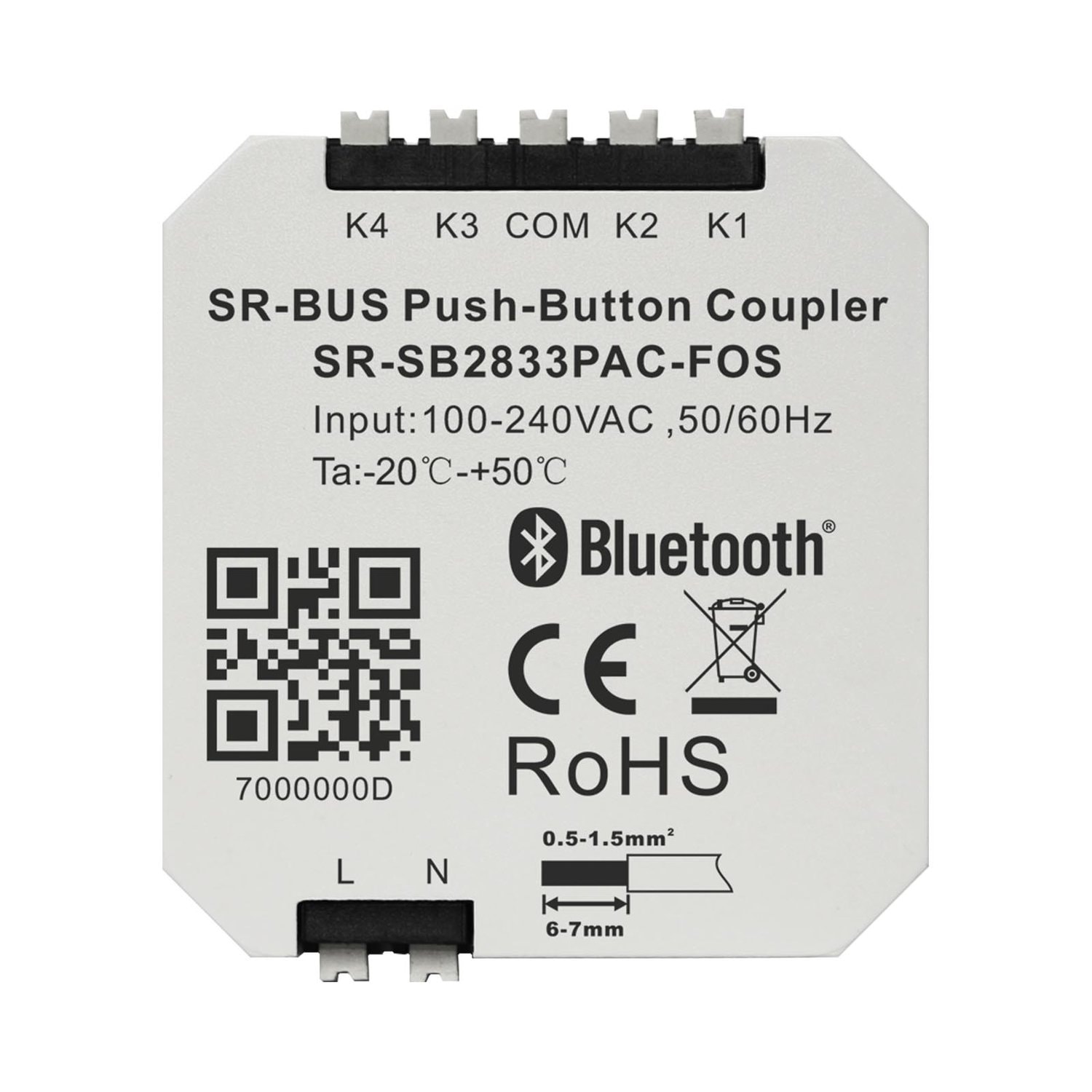

Product Description. The configurable RF+Bluetooth push-button coupler is a 4-channel push-button interface for simple wall/flush type box installation.
You can continue to use existing switches, irrespective of the manufacturer. The existing switches can be easily integrated in the SR-BUS system and get numerous configurable functions.
It is a wireless transmitter that communicates with SR-BUS system. The coupler adopts AC100-240V power input to power a built-in transmitter.
This transmitter sends wireless radio signals that are used to remotely control compatible devices. 4 push buttons connected to the coupler are configurable through EasyThings App, it enables to control ON/OFF, brightness, color temperature, RGB colors, meanwhile it can be configured as a scene controller, a trigger of preset scenes, preset dynamic color sequences.
Each RF+Bluetooth receiver can be paired to and controlled by max. 8 couplers.
| Switch Type | 2.4G Mesh Push-button Coupler |
|---|---|
| Transmission Range | 10-30m (typical) |
| Radio Frequency | 2.4GHz |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Less than 0.5W |
| Number of Push Buttons | 4 |
| Connector Type | Push-In |
| Wire Size | 0.2 – 1.5mm2 (AWG28 – AWG14) |
| Dimensions | 49.8x43x15.1mm |
| Operating Temperature | -20℃ ~ +45℃ |
| Working Humidity | 10% ~ 95% RH non-condensing |
| Waterproof Grade | IP20 |
| Warranty | 5 years |
