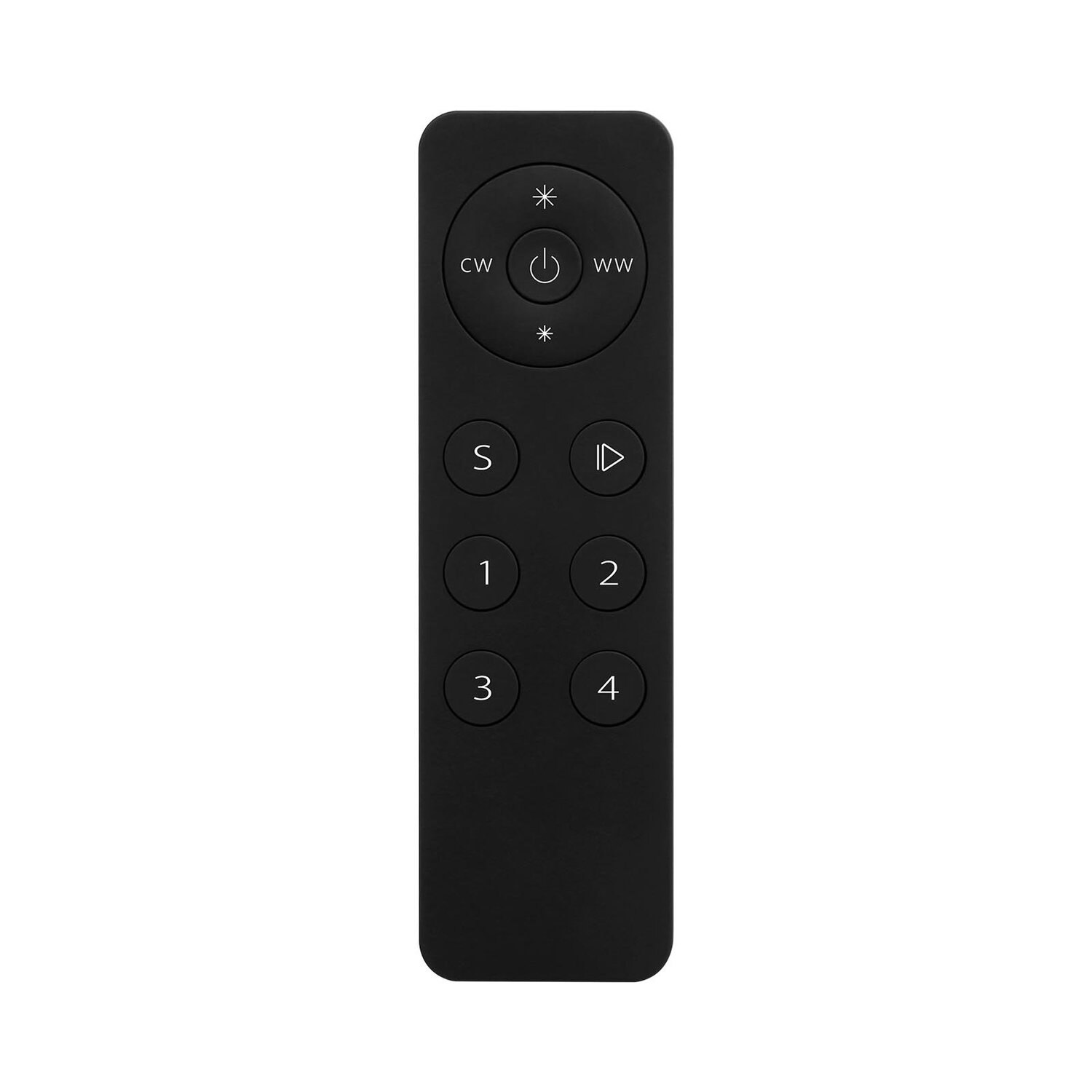

The CCT Zigbee Remote is a Zigbee 3.0-based battery-powered device designed to control Zigbee CCT lighting devices with low power consumption, supporting touchlink commissioning and find and bind mode for easy pairing. It allows control of up to 30 devices across 4 groups, operates on the 2.4 GHz global frequency band with a transmission range of up to 30 meters, and is compatible with universal Zigbee Gateway products.
| Protocol | ZigBee 3.0 |
|---|---|
| Operation Voltage | 3VDC (CR2025) |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Protection Type | IP20 |
| Dimming Range | 0.1%-100% |
| Dimension | 136.3×38.9×10.7mm |
| Protection Grade | IP20 |
