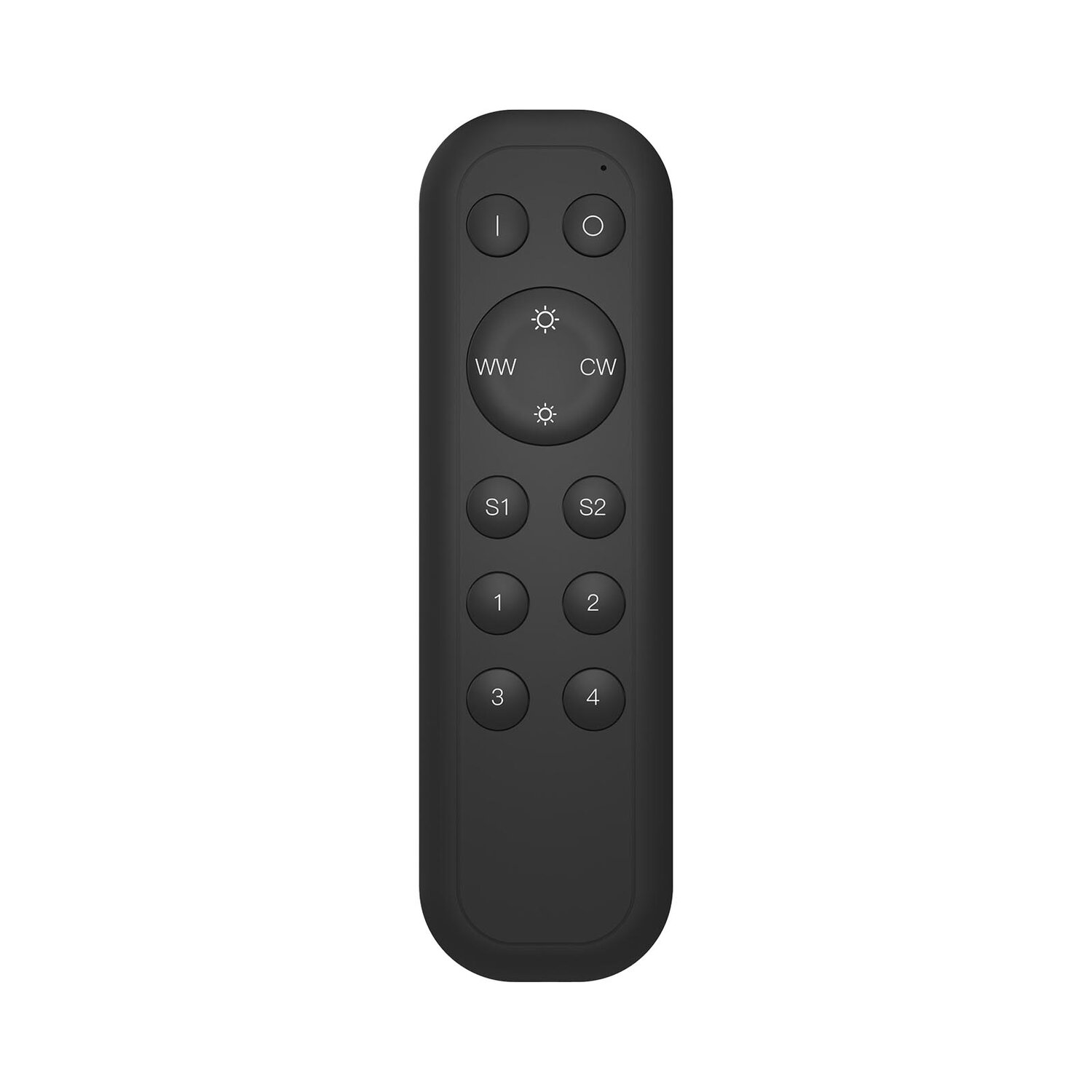

The CCT Zigbee Remote is a Zigbee 3.0-based battery-powered controller designed for CCT lighting devices, supporting low power consumption, Touchlink commissioning, find and bind mode for device pairing, control of up to 4 groups with a maximum of 30 devices each, 2.4 GHz global operation, a transmission range of up to 30 meters, and compatibility with universal Zigbee Gateway products.
| Protocol | ZigBee 3.0 |
|---|---|
| Operation Voltage | 3VDC (CR2025 battery) |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Dimming Range | 0.1%-100% |
| Dimension | 137x40x11.5mm |
| Waterproof Grade | IP20 |
