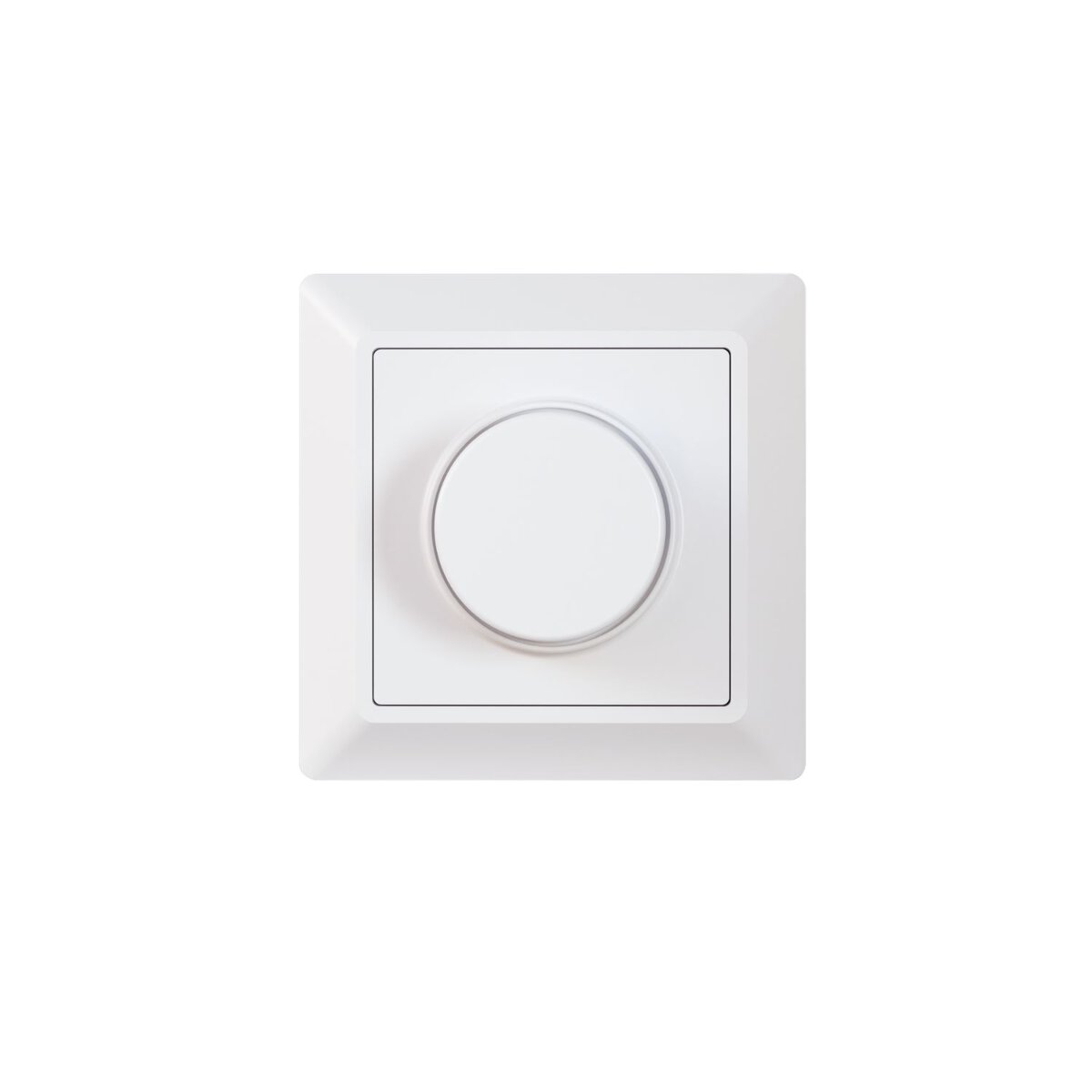

Casambi Push + Knob Smart Dimmer

SR-CS2835RAC-S

Product description

Casambi Push + knob smart dimmer
100-240VAC wide input and output voltage, can work under no neutral wiring and with neutral wiring, self-adaptive
Supports resistive loads, capacitive loads or inductive loads
1 channel output, up to 500W
Trailing edge dimming
Enables to control ON/OFF and light intensity of connected light source
Can be configured and controlled by the Casambi app
Typical mesh range is over 50 meters line of sight for an indoor environment
Compatible with existing EU standard frames and installed into a standard-size wall box
Waterproof grade: IP20

The Casambi Push + Knob Smart Dimmer offers flexible, neutral-free or neutral-wired installation with a wide 100–240VAC input range. Supporting resistive, capacitive, and inductive loads, it delivers smooth trailing-edge dimming on a 1-channel output up to 500W. Users can control power and brightness directly or through the Casambi app, with reliable mesh coverage over 50 meters indoors. Designed for EU standard wall boxes, it fits seamlessly into existing frames.

Input Voltage	100-240VAC
Output Voltage	100-240VAC
Output Current	2.2A max
Size(LxWxH)	Plastic Frame: 83.8×83.8×47.1mm
Size(LxWxH)	Glass Frame: 80x80x53mm
