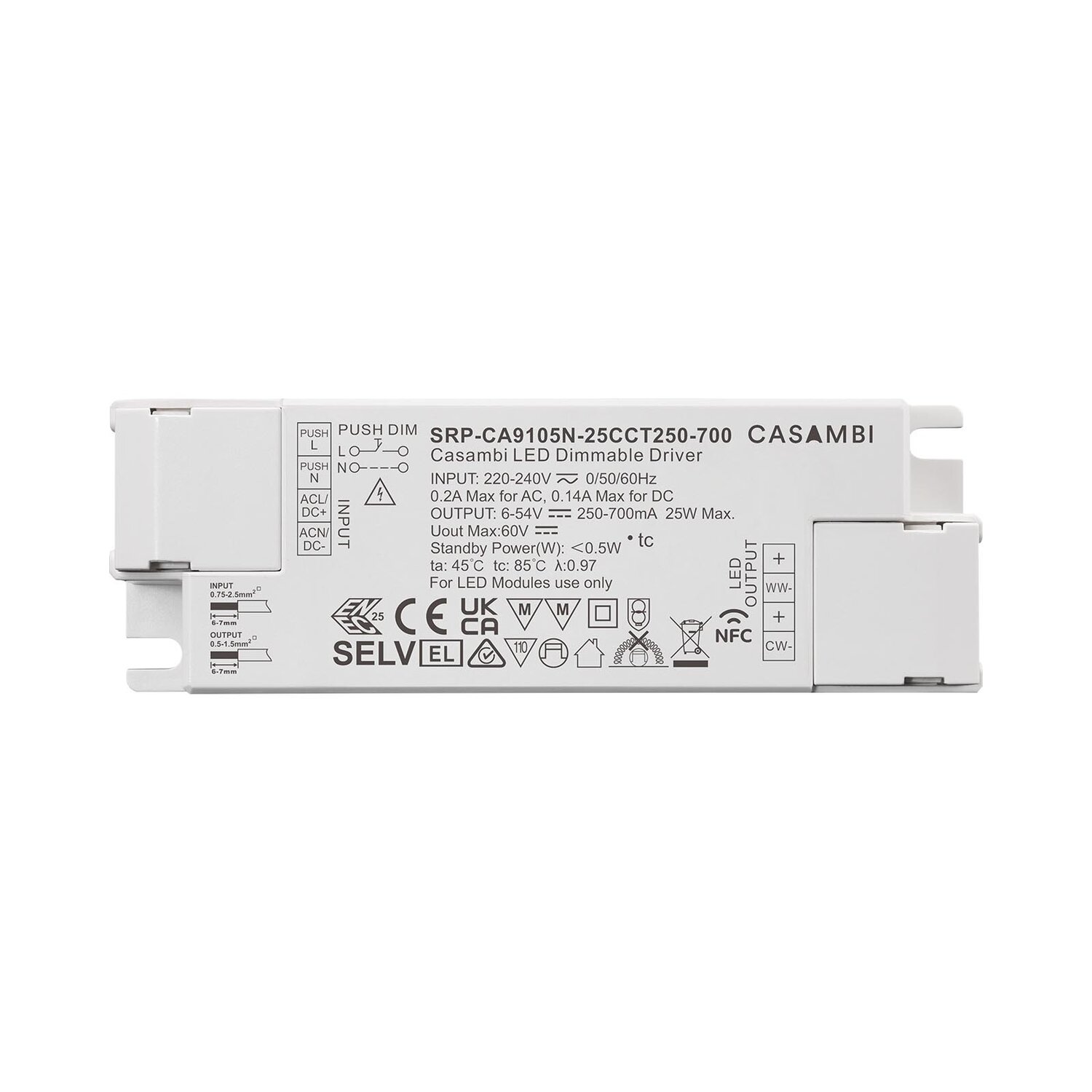

SRP-CA9105N-25CCT250-700 is a plastic casing 25W Bluetooth NFC programmable LED driver, enabled by Casambi technology. It is designed with 2 channels constant current output with adjustable current from 250mA to 700mA, which enables it to be suitable for LED lights with different current. It is designed with 220-240VAC input with high Power factor and efficiency. It enables smooth and deep dimming to 0.01% without flickering and buzzing noise.
| Output | LED Channel | 2 |
|---|---|---|
| Output | DC Voltage | 6-54V, Max.60V |
| Output | Current | 250-700mA via NFC tool; Min.current gear lower to 0.1mA, default 500mA |
| Output | Current Accuracy | ±3%(±1%@Certain full load)@ full load |
| Output | Rated Power | Max.25W |
| Input | Voltage Range | 220-240VAC/220-240VDC |
| Input | Absolute Voltage Range | 196-264VAC/196-264VDC |
| Input | Frequency Range | 0/50/60Hz |
| Input | Power Factor(Typ.) | >0.96 @ 230VAC Full load* |
| Input | Total Harmonic Distortion |
THD ≤ 13% (@ full load / 230VAC)* |
| Input | Efficiency(Typ.) | >83%@230VAC full load* |
| Input | AC Current (Typ.) | 0.2A Max. |
| Input | Inrush Current(Typ.) | Max. 5.64A at 230VAC;72μs duration |
| Input | Leakage Current | |
| Input | Standby Power Consumption | <0.5W |
| Input | Anti Surge | L-N:2KV |
| Control | Dimming Interface | Casambi/AC Push |
| Control | Dimming Range | 0.01%-100%@Max current |
| Control | Dimming Method | Amplitude/CCR dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes,remove the fault conditions and re-power the device. |
| Protection | Over Current | Yes,remove the fault conditions and re-power the device. |
| Protection | Over Temperature | Yes,remove the fault conditions and re-power the device. |
| Environment | Working Temp. | -25℃~+45℃ |
| Environment | Max. Case Temp. | Tc=85℃ |
| Environment | Working Humidity | 10%~95% RH non-condensing |
| Environment | Storage Temp. &Humidity |
-40℃~+80℃,10%~95%RH |
| Safety & EMC |
Safety Standards | EN61347-1,EN61347-2-13, GB/T 19510.1-2023, GB/T 19510.213-2023 |
| Safety & EMC |
Withstand Voltage | I/P-O/P:3.75KVAC |
| Safety & EMC |
Isolation Resistance | I/P-O/P: 100M Ohms/500VDC/25℃/70% RH |
| Safety & EMC |
EMC Emission | EN55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021 |
| Safety & EMC |
EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 120x41x28mm(L*W*H) |
| Others | Warranty | 5 Years |
