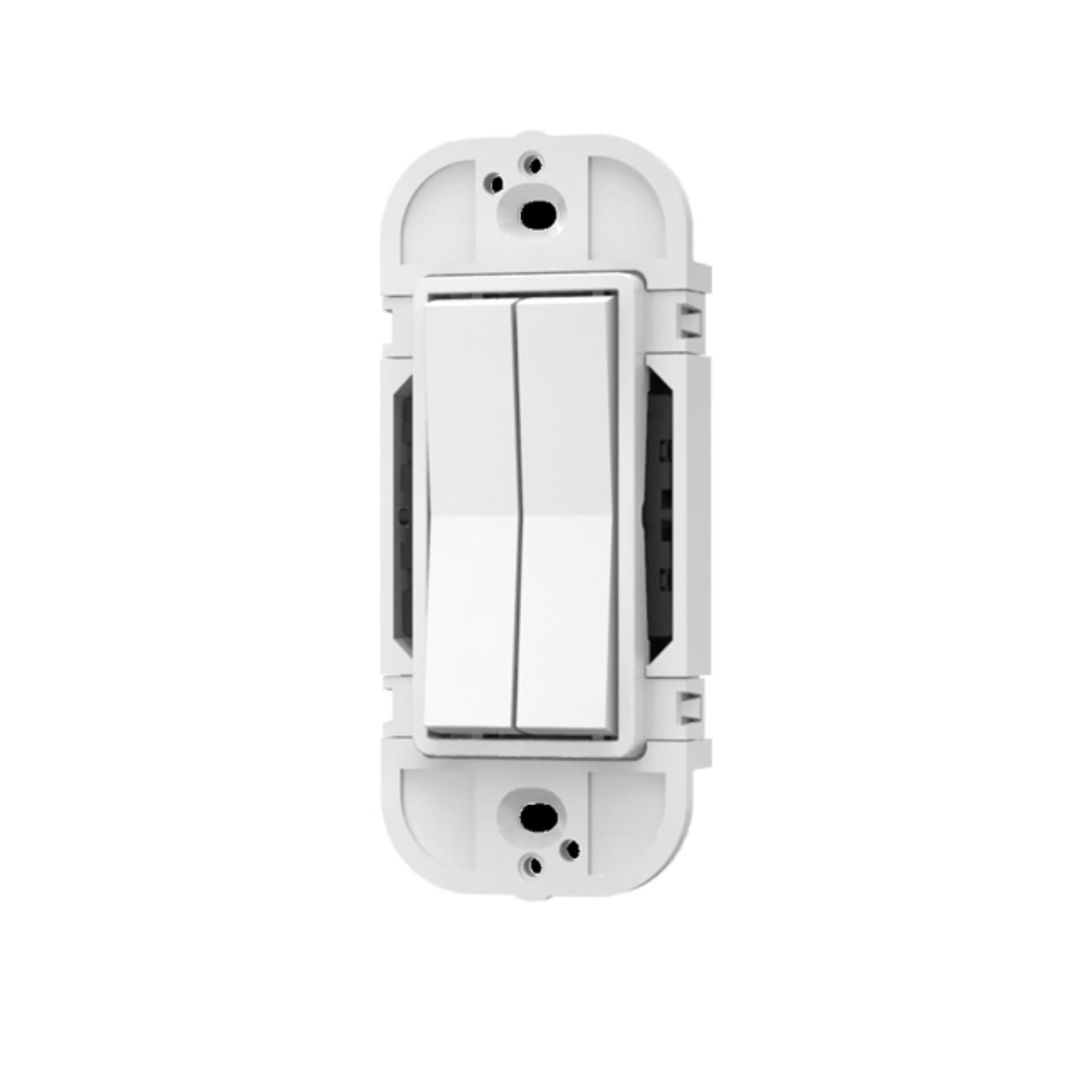

SR-SBP2801K4-BLE(US) is a CCT wall remote based on a Bluetooth Mesh network. It is battery powered with ultra-low power consumption and an ultra-long lifetime of over 1 million presses. The device supports easy and quick pairing through an app and operates on 2.4 GHz global frequency. With mesh networking, receivers can transmit signals to each other for extended control distance, with up to 30m between neighboring devices. It comes in a standard US size frame, compatible with BLE drivers, controllers, signal converters, and sensor series products, and features an on-board antenna, IP20 rating, and a 5-year warranty.
|
Protocol |
Bluetooth® mesh |
|---|---|
|
Power Supply |
3VDC(1xCR2430 Battery) |
|
Transmission Frequency |
2.4GHz |
|
Transmission Range(free field) |
Max.30m |
|
Protection Type |
IP20 |
|
Dimming Range |
0.1%-100% |
|
Dimensions |
44.9×106.2×19.2mm |
