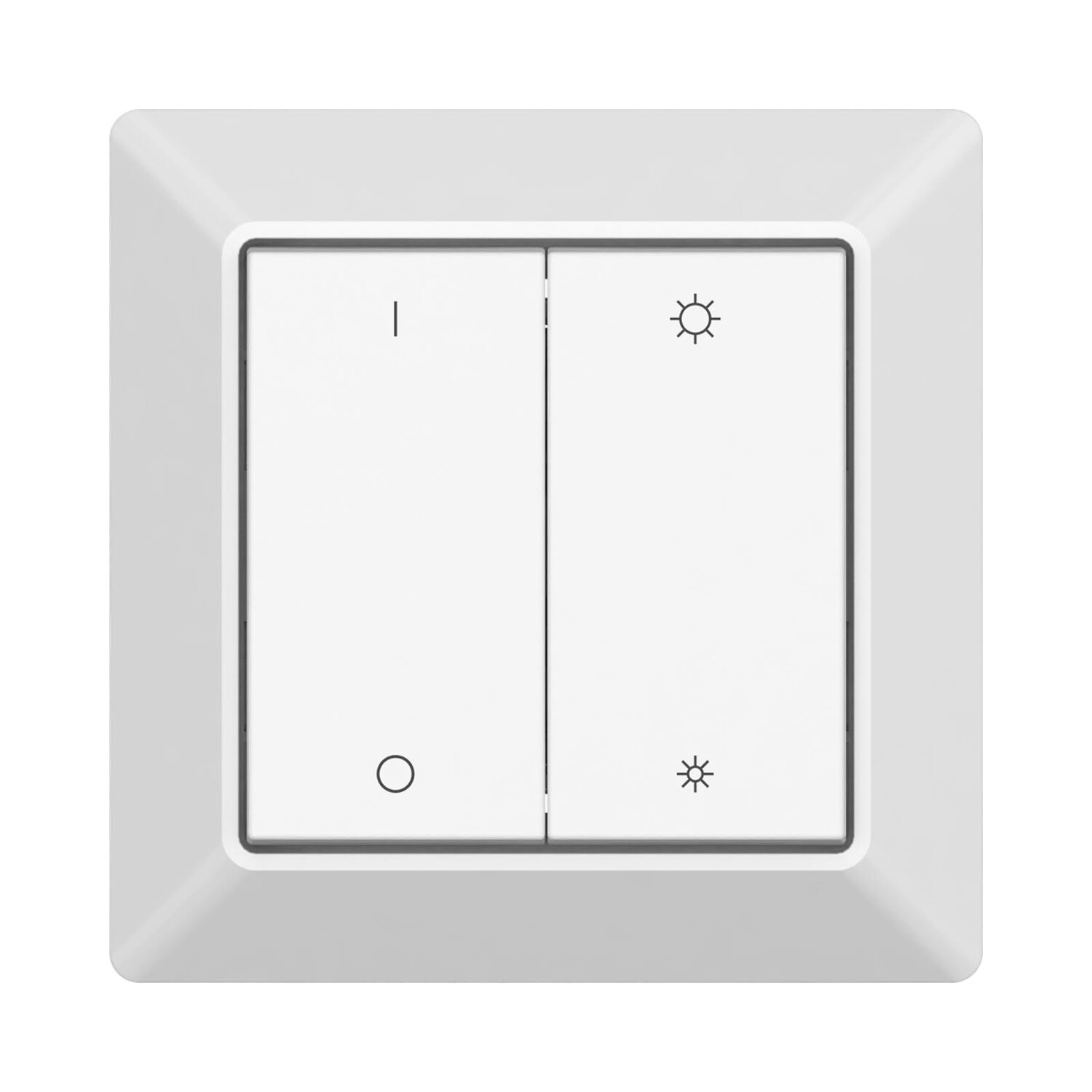

The Battery Powered DIM Zigbee GP Switch is a wireless transmitter powered by a CR2430 battery that enables communication with a wide range of Zigbee compatible systems, using its built-in transmitter to send wireless signals for remote control of connected devices.
| Switch Type | DIM control |
|---|---|
| Transmission Range | 10-30m (typical) |
| Radio Frequency | 2.4GHz (Zigbee channels 11-26) |
| Power Supply | 3V(1xCR2430 battery) |
| Buttons | 4 |
| Dimensions | 80.5×80.5×14.7mm / 86x86x14mm |
| Operating Temperature | -25℃ ~ +45℃ |
| Working Humidity | 10% ~ 95% RH non-condensing |
| Waterproof Grade | IP20 |
| Warranty | 5 years |
