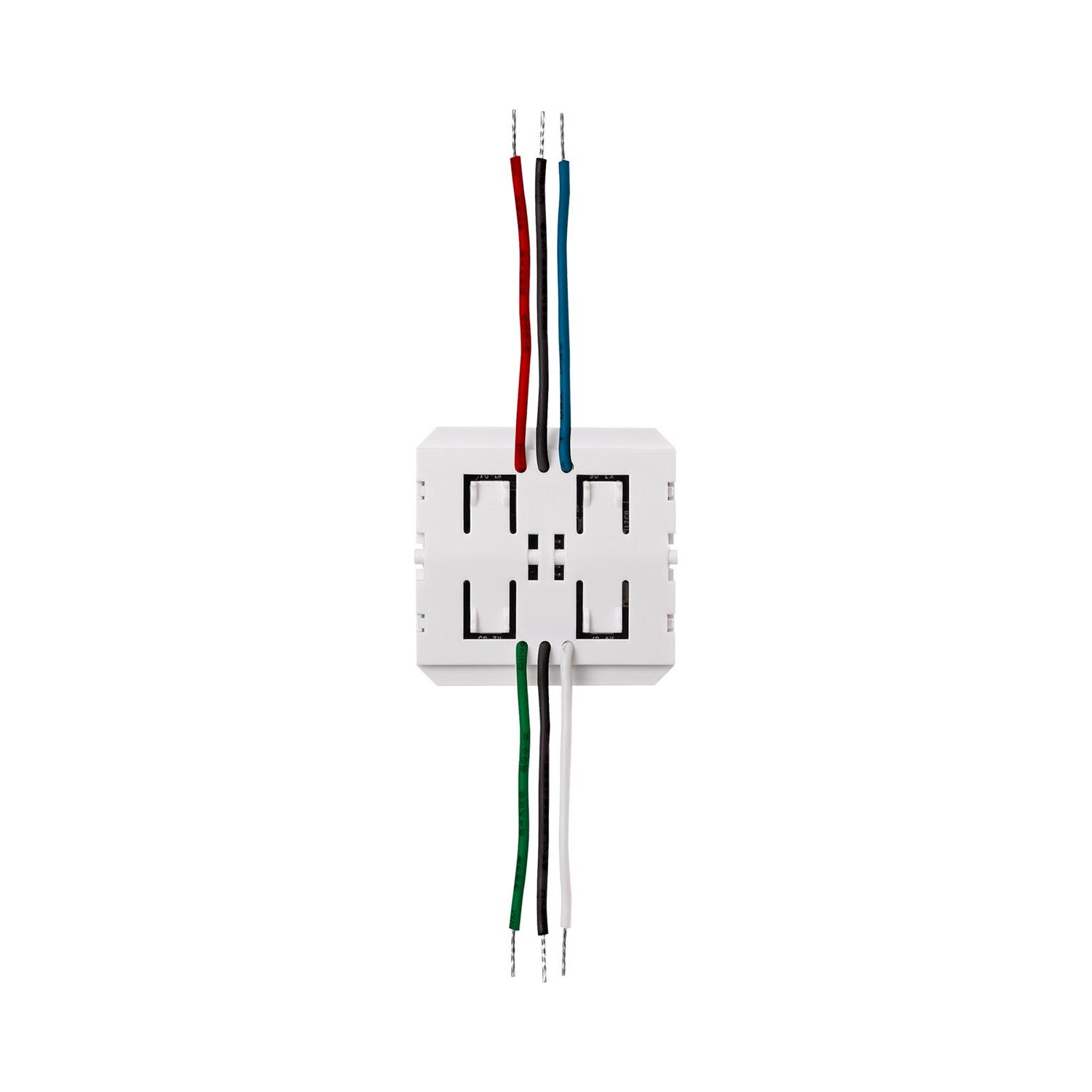

The Battery Powered Configurable Zigbee GP Switch is a 4-channel push-button interface designed for wall or flush-type box installation, powered by a CR2430 battery and functioning as a wireless transmitter to communicate with compatible Zigbee hubs.
It supports existing switches regardless of manufacturer and can be configured through a Zigbee app after pairing with the hub, with each of the four buttons capable of triggering different actions for designated devices or zones via short press, double click, and long press events, all fully customizable through the app.
| Switch Type | Configurable Zigbee GP Switch |
|---|---|
| Transmission Range | 10-30m (typical) |
| Radio Frequency | 2.4GHz |
| Power Supply | 3V(1xCR2430 battery) |
| Buttons | 4 |
| Dimensions | 40x40x11.2mm |
| Operating Temperature | -25℃ ~ +45℃ |
| Working Humidity | 10% ~ 95% RH non-condensing |
| Waterproof Grade | IP20 |
| Warranty | 5 years |
