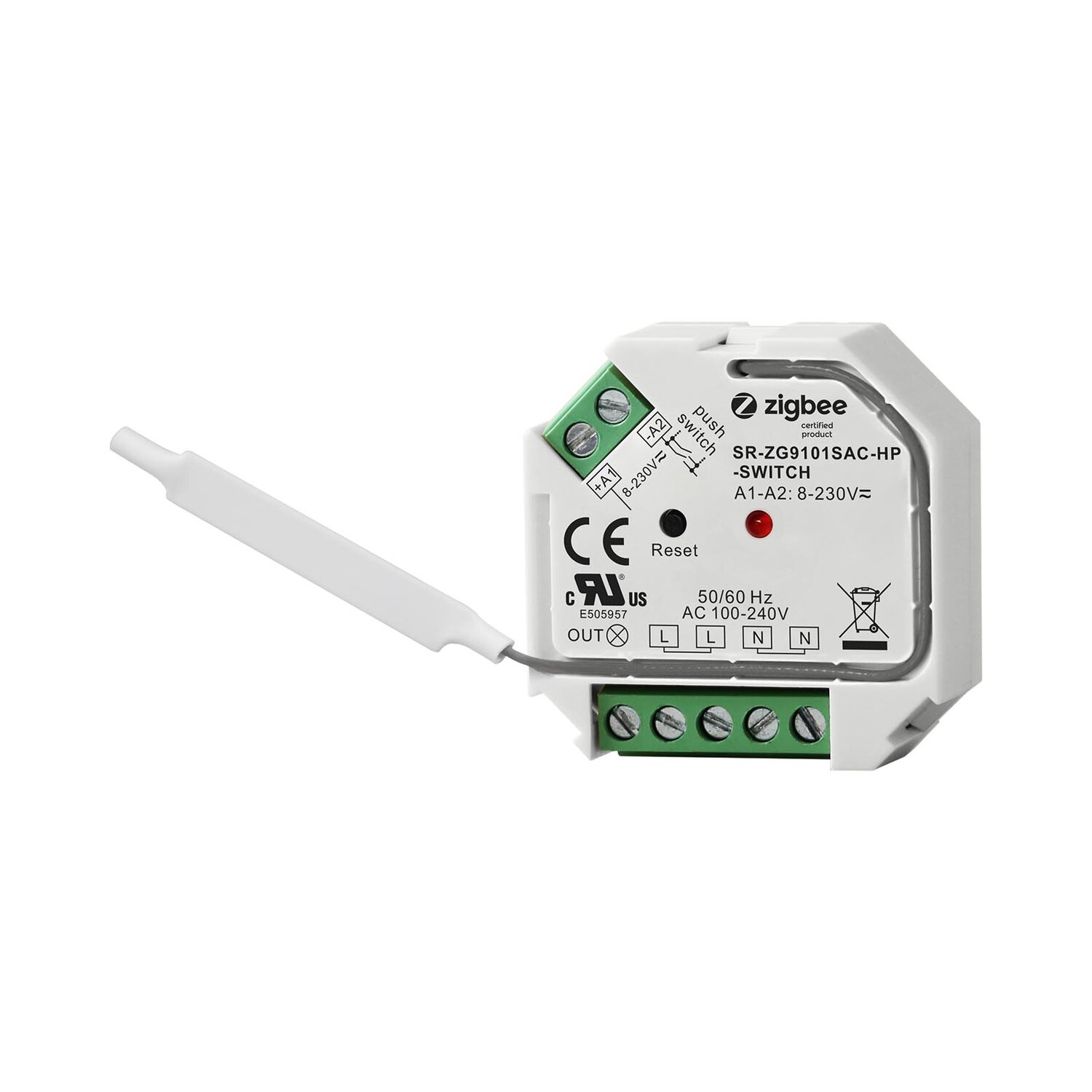

The SR-ZG9101SAC-HP-Switch is an innovative AC in wall switch with ZigBee control interface. The AC switch is designed with 100-240VAC wide input and output, 1 channel and maximum 400W output. The ZigBee AC switch supports resistive loads and capacitive loads, and enables to control ON/OFF of connected load. The AC switch can be compatible with universal ZigBee coordinator or gateway controller to be paired to the network. It is controllable from your ZigBee gateway interface or remote controllers that are added to the network and bind with the switch. The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
| Input Voltage | 100-240VAC |
|---|---|
| Output Voltage | 100-240VAC |
| Output Current | 1.8A max |
| Size(LxWxH) | 45.5x45x20.3mm |
