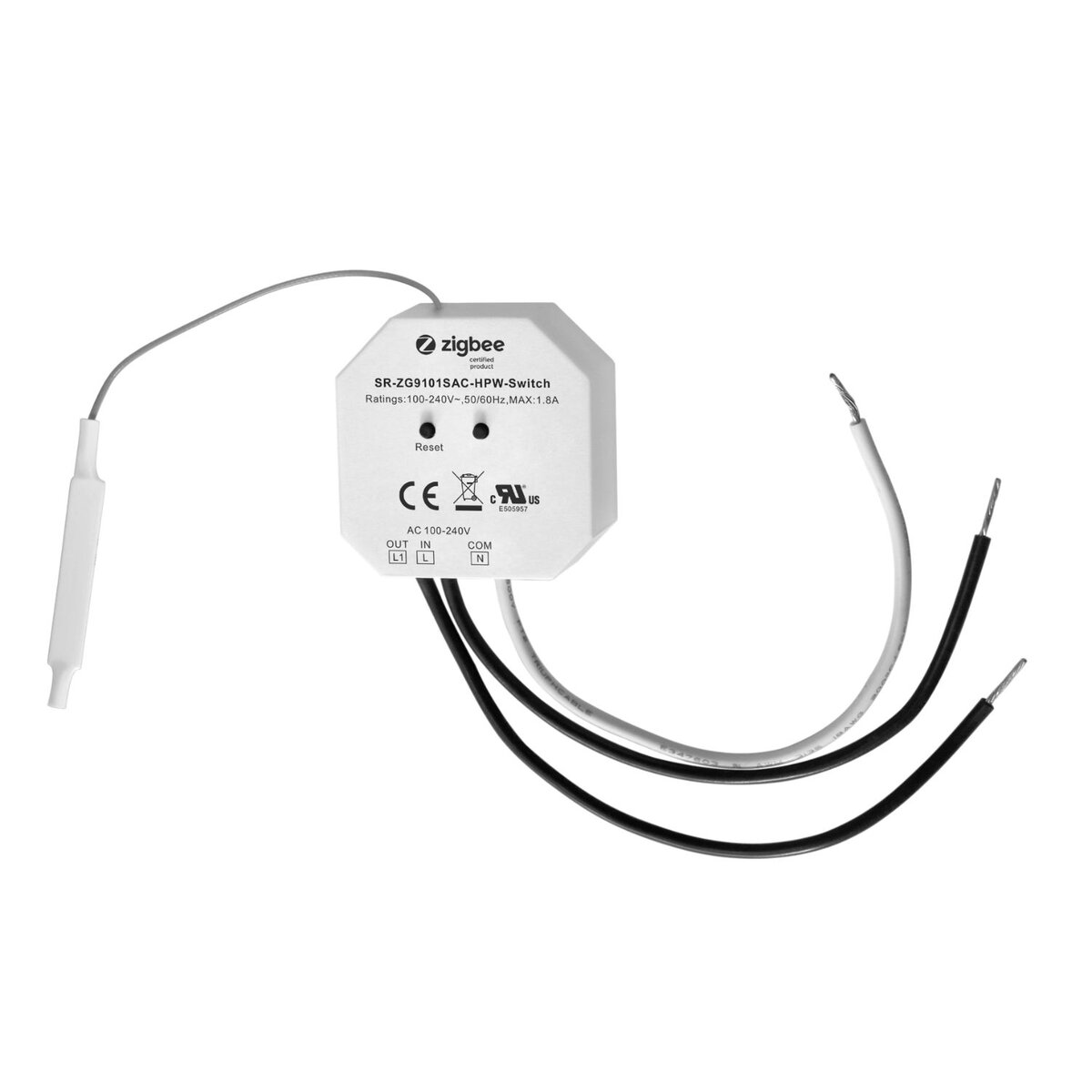

AC ZigBee In-wall Switch

SR-ZG9101SAC-HPW-SWITCH

Product description

ZigBee in-wall switch based on latest ZigBee 3.0 protocol
100-240VAC Wide Input and Output Voltage
Supports resistive loads and capacitive loads
1 Channel Output, Up to 400W
Input and Output with Screw Terminals, Safe and Reliable
Enables to control ON/OFF of connected load
ZigBee end device that supports Touchlink commissioning
Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
Supports self-forming zigbee network without coordinator and add other devices to the network
Supports find and bind mode to bind a ZigBee remote
Supports zigbee green power and can bind max. 20 zigbee green power remotes
Compatible with universal ZigBee gateway products
Can be controlled by universal 8-230V input single wire push switch
Mini Size, Easy to be Installed into a standard 86*86mm wall box
Radio Frequency : 2.4GHz
Waterproof grade: IP20

ZigBee 3.0 in-wall switch with 1-channel ON/OFF control for resistive and capacitive loads up to 400W. Supports Touchlink, self-forming ZigBee networks, Green Power, universal gateways, and standard wall switch input for flexible smart lighting control.

Input Voltage	100-240VAC
Output Voltage	100-240VAC
Output Current	1.8A max
Size(LxWxH)	45.5x45x20.3mm
